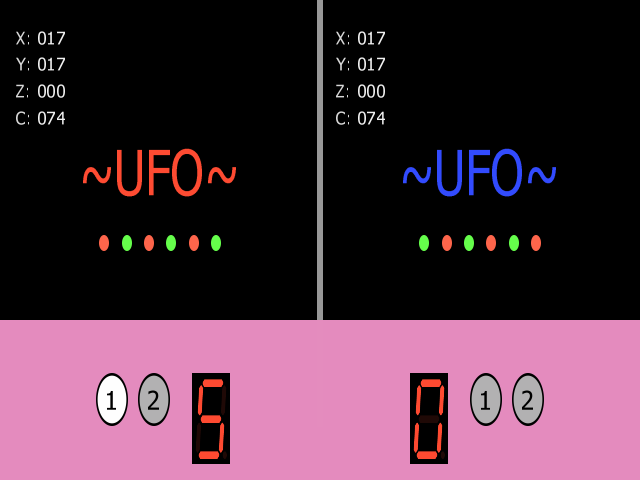

New UFO Catcher (standard) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Lists: 731 - Software: 139884 - rom: 235974 - disk: 11384

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
newufo	sega/segaufo.cpp		no	no	yes	yes	New UFO Catcher (standard)	1991	Sega

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
epr-13896.ic21	65536	ca94be57	acb6a22940c5e9ce639c7c30eb3948324b223090	maincpu	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Zilog Z80	8000000
audio	mono	Speaker
audio	ym	YM3438 OPN2C	8000000

device_ref

name
z80
315_5296
315_5296
pit8254
pit_counter
pit_counter
pit_counter
speaker
ym3438

sound

channels
1

input

players	coins	service	tilt
2	4	yes	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
only_buttons	1	3		no
only_buttons	2	3		no

port, analog

port_tag	analog_masks
:DSW1
:DSW2
:IN1
:IN2

dipswitch

Coin A

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin A	DSW1	15

location

name	number	inverted
SW1	1	no
SW1	2	no
SW1	3	no
SW1	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
5 Coins/1 Credit	2	no	DSW2	8	eq	8
4 Coins/1 Credit	4	no	DSW2	8	eq	8
3 Coins/1 Credit	6	no	DSW2	8	eq	8
5 Coins/2 Credits	1	no	DSW2	8	eq	8
2 Coins/1 Credit	9	no	DSW2	8	eq	8
5 Coins/3 Credits	0	no	DSW2	8	eq	8
3 Coins/2 Credits	5	no	DSW2	8	eq	8
4 Coins/3 Credits	3	no	DSW2	8	eq	8
1 Coin/1 Credit	15	yes	DSW2	8	eq	8
2 Coins/3 Credits	8	no	DSW2	8	eq	8
1 Coin/2 Credits	14	no	DSW2	8	eq	8
2 Coins/5 Credits	7	no	DSW2	8	eq	8
1 Coin/3 Credits	13	no	DSW2	8	eq	8
1 Coin/4 Credits	12	no	DSW2	8	eq	8
1 Coin/5 Credits	11	no	DSW2	8	eq	8
1 Coin/6 Credits	10	no	DSW2	8	eq	8
5 Coins/1 Credit	0	no	DSW2	8	eq	0
4 Coins/1 Credit	1	no	DSW2	8	eq	0
3 Coins/1 Credit	3	no	DSW2	8	eq	0
2 Coins/1 Credit	5	no	DSW2	8	eq	0
3 Coins/2 Credits	2	no	DSW2	8	eq	0
1 Coin/1 Credit	15	yes	DSW2	8	eq	0
2 Coins/3 Credits	4	no	DSW2	8	eq	0
1 Coin/2 Credits	14	no	DSW2	8	eq	0
1 Coin/3 Credits	13	no	DSW2	8	eq	0
1 Coin/4 Credits	12	no	DSW2	8	eq	0
1 Coin/5 Credits	11	no	DSW2	8	eq	0
1 Coin/6 Credits	10	no	DSW2	8	eq	0
1 Coin/8 Credits	9	no	DSW2	8	eq	0
1 Coin/10 Credits	8	no	DSW2	8	eq	0
1 Coin/11 Credits	7	no	DSW2	8	eq	0
1 Coin/12 Credits	6	no	DSW2	8	eq	0

Coin B

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin B	DSW1	240

location

name	number	inverted
SW1	5	no
SW1	6	no
SW1	7	no
SW1	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
5 Coins/1 Credit	32	no	DSW2	8	eq	8
4 Coins/1 Credit	64	no	DSW2	8	eq	8
3 Coins/1 Credit	96	no	DSW2	8	eq	8
5 Coins/2 Credits	16	no	DSW2	8	eq	8
2 Coins/1 Credit	144	no	DSW2	8	eq	8
5 Coins/3 Credits	0	no	DSW2	8	eq	8
3 Coins/2 Credits	80	no	DSW2	8	eq	8
4 Coins/3 Credits	48	no	DSW2	8	eq	8
1 Coin/1 Credit	240	no	DSW2	8	eq	8
2 Coins/3 Credits	128	no	DSW2	8	eq	8
1 Coin/2 Credits	224	no	DSW2	8	eq	8
2 Coins/5 Credits	112	no	DSW2	8	eq	8
1 Coin/3 Credits	208	no	DSW2	8	eq	8
1 Coin/4 Credits	192	no	DSW2	8	eq	8
1 Coin/5 Credits	176	no	DSW2	8	eq	8
1 Coin/6 Credits	160	yes	DSW2	8	eq	8
5 Coins/1 Credit	0	no	DSW2	8	eq	0
4 Coins/1 Credit	16	no	DSW2	8	eq	0
3 Coins/1 Credit	48	no	DSW2	8	eq	0
2 Coins/1 Credit	80	no	DSW2	8	eq	0
3 Coins/2 Credits	32	no	DSW2	8	eq	0
1 Coin/1 Credit	240	no	DSW2	8	eq	0
2 Coins/3 Credits	64	no	DSW2	8	eq	0
1 Coin/2 Credits	224	no	DSW2	8	eq	0
1 Coin/3 Credits	208	no	DSW2	8	eq	0
1 Coin/4 Credits	192	no	DSW2	8	eq	0
1 Coin/5 Credits	176	no	DSW2	8	eq	0
1 Coin/6 Credits	160	yes	DSW2	8	eq	0
1 Coin/8 Credits	144	no	DSW2	8	eq	0
1 Coin/10 Credits	128	no	DSW2	8	eq	0
1 Coin/11 Credits	112	no	DSW2	8	eq	0
1 Coin/12 Credits	96	no	DSW2	8	eq	0

Demo Sounds

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Demo Sounds	DSW2	1

location

name	number	inverted
SW2	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
On	1	yes
Off	0	no

Arm X, Y-Move

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Arm X, Y-Move	DSW2	2

location

name	number	inverted
SW2	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Each Once	2	yes
Unrestricted	0	no

Initial Mechanism Motion Check

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Initial Mechanism Motion Check	DSW2	4

location

name	number	inverted
SW2	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	4	yes
On	0	no

Coinage

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coinage	DSW2	8

location

name	number	inverted
SW2	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Setting 1	8	yes
Setting 2	0	no

Ignore Prize Sensor

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Ignore Prize Sensor	DSW2	16

location

name	number	inverted
SW2	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	16	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW2	32

location

name	number	inverted
SW2	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW2	64

location

name	number	inverted
SW2	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	64	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW2	128

location

name	number	inverted
SW2	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	yes
On	0	no
