New Fruit Bonus '96 Special Edition (v3.63, C1 PCB)

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
nfb96	igs/goldstar.cpp		no	no	no	yes	New Fruit Bonus '96 Special Edition (v3.63, C1 PCB)	1996	Amcoe

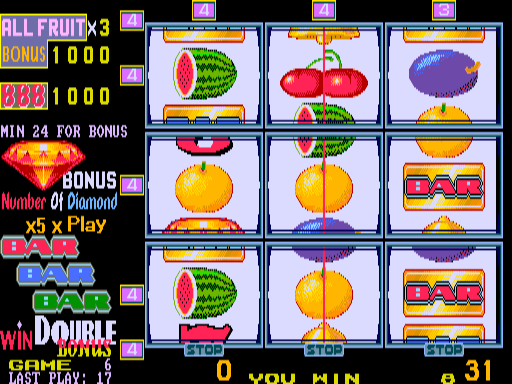

snap

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
nfb96	50431	29/12/2025 11:31:36	512	384	96	96	0	Format24bppRgb	305:MAME 0.219 (Feb 27 2020)	57df161f3741ca83a163ca751da1aaf73e24f909

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	512	224	60.000000	7864320	512	0	512	256	16	240	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional
fb363c1.bin	65536	ddc22974	86f5d4d32f69d054ee1b444e2c4d470603e0391c	maincpu	0	good	no
fb96seh b995	65536	12042a0a	4bc5f87f4b92f303fef100bf16e3d7b27670b793	graphics	0	good	no
fb96sel 246a	65536	d611f10b	425cad584e85f21de214bf978555a7811b13aa35	graphics	10000	good	no
chu19.bin	256	fafc43ad	e94592b83f19e5f9b6205473c1e06b36405ebfc2	proms	0	good	no
chu20.bin	256	05224f73	051c3ee9c63f5436e4f6c355fc308f37910a88ef	proms	100	good	no
chu1920.bin	256	71b0e11d	1d2a2a31d8571f580c0cb7f4833823841072b31f	proms2	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Zilog Z80	3000000
audio	mono	Speaker
audio	aysnd	AY-3-8910A PSG	1500000

device_ref

tag	name
:maincpu	z80
:ppi8255_0	i8255
:ppi8255_1	i8255
:screen	screen
:gfxdecode	gfxdecode
:palette	palette
:nvram	nvram
:mono	speaker
:aysnd	ay8910
:hopper	ticket_dispenser

sound

channels
1

input

players	coins	service	tilt
1	2	yes	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
gambling		8		no

port, analog

port_tag	analog_masks
:DSW1
:DSW2
:DSW3
:DSW4
:DSW5
:IN0
:IN1
:IN2
:hopper:TEST

dipswitch

Game Level (Difficulty)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Game Level (Difficulty)	DSW1	7	DSW4	2	eq	0

location

name	number	inverted
DSW1	1	yes
DSW1	2	yes
DSW1	3	yes

value

name	value	default
Level 1 (easiest)	7	no
Level 2	6	no
Level 3	5	no
Level 4	4	no
Level 5	3	yes
Level 6	2	no
Level 7	1	no
Level 8 (hardest)	0	no

Main Game Payout Rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Main Game Payout Rate	DSW1	7	DSW4	2	eq	2

location

name	number	inverted
DSW1	1	yes
DSW1	2	yes
DSW1	3	yes

value

name	value	default
55%	0	no
60%	1	no
65%	2	no
70%	3	yes
75%	4	no
80%	5	no
85%	6	no
90%	7	no

Maximum Bet

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Maximum Bet	DSW1	56

location

name	number	inverted
DSW1	4	yes
DSW1	5	yes
DSW1	6	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
10	0	no	DSW5	16	eq	0
20	8	no	DSW5	16	eq	0
30	16	no	DSW5	16	eq	0
40	24	no	DSW5	16	eq	0
8	0	no	DSW5	16	eq	16
16	8	no	DSW5	16	eq	16
24	16	no	DSW5	16	eq	16
32	24	no	DSW5	16	eq	16
40	32	no
48	40	no
64	48	no
80	56	yes

Minimum Bet for Bonus

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Minimum Bet for Bonus	DSW1	192

location

name	number	inverted
DSW1	7	yes
DSW1	8	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
10	0	yes	DSW5	16	eq	0
20	64	no	DSW5	16	eq	0
30	128	no	DSW5	16	eq	0
40	192	no	DSW5	16	eq	0
8	0	yes	DSW5	16	eq	16
16	64	no	DSW5	16	eq	16
24	128	no	DSW5	16	eq	16
32	192	no	DSW5	16	eq	16

Double Up Game

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Double Up Game	DSW2	1

location

name	number	inverted
DSW2	1	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	1	yes

Skill Spinning

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Skill Spinning	DSW2	2

location

name	number	inverted
DSW2	2	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	yes
Yes	2	no

Coin In

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin In	DSW2	28

location

name	number	inverted
DSW2	3	yes
DSW2	4	yes
DSW2	5	yes

value

name	value	default
1 Coin/1 Credit	0	no
1 Coin/2 Credits	4	no
1 Coin/4 Credits	8	no
1 Coin/5 Credits	12	no
1 Coin/10 Credits	16	yes
1 Coin/20 Credits	20	no
1 Coin/25 Credits	24	no
1 Coin/100 Credits	28	no

Note In Value

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Note In Value	DSW2	96

location

name	number	inverted
DSW2	6	yes
DSW2	7	yes

value

name	value	default
100	0	yes
200	32	no
500	64	no
1000	96	no

WARNING: Always Off

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
WARNING: Always Off	DSW2	128

location

name	number	inverted
DSW2	8	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	128	no

Minimum Bet

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Minimum Bet	DSW3	3

location

name	number	inverted
DSW3	1	yes
DSW3	2	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1	0	no
10	1	yes	DSW5	16	eq	0
20	2	no	DSW5	16	eq	0
30	3	no	DSW5	16	eq	0
8	1	yes	DSW5	16	eq	16
16	2	no	DSW5	16	eq	16
24	3	no	DSW5	16	eq	16

Max Coin In & Note In Points

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Max Coin In & Note In Points	DSW3	12

location

name	number	inverted
DSW3	3	yes
DSW3	4	yes

value

name	value	default
1000	0	no
5000	4	no
10000	8	yes
90000	12	no

Clear / Ticket Unit

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Clear / Ticket Unit	DSW3	240

location

name	number	inverted
DSW3	5	yes
DSW3	6	yes
DSW3	7	yes
DSW3	8	yes

value

name	value	default
1	0	yes
4	16	no
5	32	no
10	48	no
15	64	no
20	80	no
25	96	no
30	112	no
40	128	no
50	144	no
60	160	no
75	176	no
80	192	no
100	208	no
200	224	no
500	240	no

Check Account

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Check Account	DSW4	1

location

name	number	inverted
DSW4	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	1	no
Yes	0	yes

Show In Confirm Screen

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Show In Confirm Screen	DSW4	2

location

name	number	inverted
DSW4	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Percentage	2	yes
Level of Difficulty	0	no

Initial Bonus Settings After Reset

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Initial Bonus Settings After Reset	DSW4	4

location

name	number	inverted
DSW4	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Type 1	4	yes
Type 2	0	no

Bonus Accumulation

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Bonus Accumulation	DSW4	8

location

name	number	inverted
DSW4	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	8	no
Yes	0	yes

Auto Ticket Dispense

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Auto Ticket Dispense	DSW4	16

location

name	number	inverted
DSW4	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	16	yes
Yes	0	no

Ticket Dispense Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Ticket Dispense Mode	DSW4	224

location

name	number	inverted
DSW4	6	no
DSW4	7	no
DSW4	8	no

value

name	value	default
Continuous	224	yes
Max 1 Ticket Per Game	192	no
Max 2 Ticket Per Game	160	no
Max 3 Ticket Per Game	128	no
Max 4 Ticket Per Game	96	no
Max 5 Ticket Per Game	64	no
Max 8 Ticket Per Game	32	no
Max 10 Ticket Per Game	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW5	1

location

name	number	inverted
DSW5	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	1	yes
On	0	no

Limit Score of Each Game to Max 10x Bet or $5.00

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Limit Score of Each Game to Max 10x Bet or $5.00	DSW5	2

location

name	number	inverted
DSW5	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	2	yes	DSW4	16	eq	16
Yes	0	no	DSW4	16	eq	16
Unused when DSW4-5 OFF	0	no	DSW4	16	eq	0
Unused when DSW4-5 OFF	2	yes	DSW4	16	eq	0

Use Printer

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Use Printer	DSW5	4

location

name	number	inverted
DSW5	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No (Use TDDD)	4	yes
Yes	0	no

Show Game Name & Odds Table

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Show Game Name & Odds Table	DSW5	8

location

name	number	inverted
DSW5	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	no
Yes	8	yes

Min-Max Bet Type

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Min-Max Bet Type	DSW5	16

location

name	number	inverted
DSW5	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Base 8	16	yes
Base 10	0	no

Play Score when no point left

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Play Score when no point left	DSW5	32

location

name	number	inverted
DSW5	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	32	yes	DSW4	16	eq	16
Yes	0	no	DSW4	16	eq	16
Unused	32	yes	DSW4	16	eq	0
Unused	0	no	DSW4	16	eq	0

Reset Remaining Score when Game Over

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Reset Remaining Score when Game Over	DSW5	64

location

name	number	inverted
DSW5	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	64	yes	DSW4	16	eq	16
Yes	0	no	DSW4	16	eq	16
Unused	64	yes	DSW4	16	eq	0
Unused	0	no	DSW4	16	eq	0

Advanced Count Game

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Advanced Count Game	DSW5	128

location

name	number	inverted
DSW5	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	128	yes
Yes	0	no

clones

name	description
carb2002	Carriage Bonus 2002 (bootleg)
carb2003	Carriage Bonus 2003 (bootleg)
nfb96d	New Fruit Bonus '96 (v3.1, A PCB, set 1)
nfb96m	New Fruit Bonus '96 (v3.1, A PCB, set 2)
nfb96l	New Fruit Bonus '96 (v97-3.1c, B PCB)
nfb96se	New Fruit Bonus '96 Special Edition (bootleg set 1, v97-3.3c Portuguese)
nfb96sea	New Fruit Bonus '96 Special Edition (bootleg set 2, v97-3.3c English)
nfb96seb	New Fruit Bonus '96 Special Edition (bootleg set 3, v97-3.3c Portuguese)
nfb96sec	New Fruit Bonus '96 Special Edition (bootleg set 4, v97-3.3c English)
nfb96txt	New Fruit Bonus '96 Special Edition (v1.22 Texas XT, C2 PCB)
nfb96j	New Fruit Bonus '96 Special Edition (v3.40, D PCB)
nfb96i	New Fruit Bonus '96 Special Edition (v3.53, D PCB)
nfb96b	New Fruit Bonus '96 Special Edition (v3.54, D PCB)
nfb96h	New Fruit Bonus '96 Special Edition (v3.60, DK PCB)
nfb96g	New Fruit Bonus '96 Special Edition (v3.61, DK PCB)
nfb96e	New Fruit Bonus '96 Special Edition (v3.61a, C1 PCB)
nfb96f	New Fruit Bonus '96 Special Edition (v3.61a, DK PCB)
nfb96a	New Fruit Bonus '96 Special Edition (v3.62, C1 PCB)
nfb96c	New Fruit Bonus '96 Special Edition (v3.62, DK PCB)
nfb96k	New Fruit Bonus '96 Special Edition (v97-3.3c, D PCB)
noved	Nove Diamante (bootleg)

name	value	default
1	0	yes
4	16	no
5	32	no
10	48	no
15	64	no
20	80	no
25	96	no
30	112	no
40	128	no
50	144	no
60	160	no
75	176	no
80	192	no
100	208	no
200	224	no
500	240	no

name	value	default
1	0	yes
4	16	no
5	32	no
10	48	no
15	64	no
20	80	no
25	96	no
30	112	no
40	128	no
50	144	no
60	160	no
75	176	no
80	192	no
100	208	no
200	224	no
500	240	no

New Fruit Bonus '96 Special Edition (v3.63, C1 PCB) - mame (0287) machine

machine

snap

display

driver

rom

chip

device_ref

sound

input

control

port, analog

dipswitch

Game Level (Difficulty)

location

value

Main Game Payout Rate

location

value

Maximum Bet

location

value

Minimum Bet for Bonus

location

value

Double Up Game

location

value

Skill Spinning

location

value

Coin In

location

value

Note In Value

location

value

WARNING: Always Off

location

value

Minimum Bet

location

value

Max Coin In & Note In Points

location

value

Clear / Ticket Unit

location

value

Check Account

location

value

Show In Confirm Screen

location

value

Initial Bonus Settings After Reset

location

value

Bonus Accumulation

location

value

Auto Ticket Dispense

location

value

Ticket Dispense Mode

location

value

Unused

location

value

Limit Score of Each Game to Max 10x Bet or $5.00

location

value

Use Printer

location

value

Show Game Name & Odds Table

location

value

Min-Max Bet Type

name	value	default
1	0	yes
4	16	no
5	32	no
10	48	no
15	64	no
20	80	no
25	96	no
30	112	no
40	128	no
50	144	no
60	160	no
75	176	no
80	192	no
100	208	no
200	224	no
500	240	no
