Nove Diamante (bootleg) - mame (0287) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
noved	igs/goldstar.cpp		no	no	no	yes	Nove Diamante (bootleg)	2006	bootleg (Kon)	nfb96	nfb96

snap

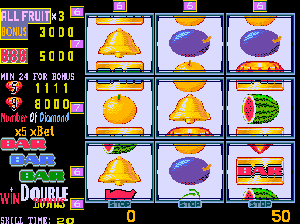

Nove Diamante (bootleg) png snap

Nove Diamante (bootleg) jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
noved	10559	29/12/2025 11:31:37	300	224	96	96	0	Format24bppRgb	305:MAMEUI 0.282.0 (2025-10-31)	abcc56016d1ff2e9dc339d5f39cefed54655412c

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	512	224	60.000000	7864320	512	0	512	256	16	240	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
w27c512 winbond eeprom u53.bin	65536	46b91997	8edd36c25cf3a8a77b170a3c7fca14d57c7a7e4c	maincpu	2000	good	no
w29c020 winbond flash u20.bin	262144	ad4faff8	1ab37486c1cc7f961959cf5a0a3e8daba89f68e9	gfx1	10000	good	no
w27c512 winbond eeprom u27.bin	65536	5f0882de	a32a64f905f755dbe146710ed441fa78e55acbaf	gfx2	0	good	no
w27c512 winbond eeprom u57.bin	65536	84256478	90c1abe26487682712d4514b113311400bf37ff3	proms	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Zilog Z80	3000000
audio	mono	Speaker
audio	aysnd	AY-3-8910A PSG	1500000

device_ref

tag	name
:maincpu	z80
:ppi8255_0	i8255
:ppi8255_1	i8255
:screen	screen
:gfxdecode	gfxdecode
:palette	palette
:nvram	nvram
:mono	speaker
:aysnd	ay8910
:hopper	ticket_dispenser

sound

channels
1

input

players	coins	service	tilt
1	2	no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
gambling		8		no

port, analog

port_tag	analog_masks
:DSW1
:DSW2
:DSW3
:DSW4
:DSW5
:IN0
:IN1
:IN2
:hopper:TEST

dipswitch

Payout Rate/Difficulty

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Payout Rate/Difficulty	DSW1	7

location

name	number	inverted
DSW1	1	yes
DSW1	2	yes
DSW1	3	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
55%/Level 8	0	no
60%/Level 7	1	no
65%/Level 6	2	no
70%/Level 5	3	yes
75%/Level 4	4	no
80%/Level 3	5	no
85%/Level 2	6	no
90%/Level 1	7	no

Maximum Bet

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Maximum Bet	DSW1	56

location

name	number	inverted
DSW1	4	yes
DSW1	5	yes
DSW1	6	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
8	0	no
16	8	no
24	16	no
32	24	no
40	32	no
48	40	no
64	48	no
80	56	yes

Minimum Bet for Bonus

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Minimum Bet for Bonus	DSW1	192

location

name	number	inverted
DSW1	7	yes
DSW1	8	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
8	0	no
16	64	no
24	128	yes
32	192	no

Double Up Game

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Double Up Game	DSW2	1

location

name	number	inverted
DSW2	1	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	1	yes

Skill Spinning

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Skill Spinning	DSW2	2

location

name	number	inverted
DSW2	2	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	2	yes

Coinage

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coinage	DSW2	28

location

name	number	inverted
DSW2	3	yes
DSW2	4	yes
DSW2	5	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1 Coin/1 Credit	0	no
1 Coin/2 Credits	4	no
1 Coin/4 Credits	8	no
1 Coin/5 Credits	12	no
1 Coin/10 Credits	16	yes
1 Coin/20 Credits	20	no
1 Coin/25 Credits	24	no
1 Coin/100 Credits	28	no

Note In Value

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Note In Value	DSW2	96

location

name	number	inverted
DSW2	6	yes
DSW2	7	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
100	0	yes
200	32	no
500	64	no
1000	96	no

WARNING: Always Off

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
WARNING: Always Off	DSW2	128

location

name	number	inverted
DSW2	8	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	128	no

Minimum Bet

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Minimum Bet	DSW3	3

location

name	number	inverted
DSW3	1	yes
DSW3	2	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1	0	no
8	1	no
16	2	yes
24	3	no

Max Coin In & Note In Points

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Max Coin In & Note In Points	DSW3	12

location

name	number	inverted
DSW3	3	yes
DSW3	4	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1000	0	no
5000	4	no
10000	8	yes
90000	12	no

Clear / Ticket Unit

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Clear / Ticket Unit	DSW3	240

location

name	number	inverted
DSW3	5	yes
DSW3	6	yes
DSW3	7	yes
DSW3	8	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1	0	yes
4	16	no
5	32	no
10	48	no
20	64	no
25	80	no
30	96	no
40	112	no
50	128	no
60	144	no
80	160	no
100	176	no
200	192	no
300	208	no
400	224	no
500	240	no

Check Account

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Check Account	DSW4	1

location

name	number	inverted
DSW4	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	1	yes
Yes	0	no

Show Coin In Limit On Screen

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Show Coin In Limit On Screen	DSW4	2

location

name	number	inverted
DSW4	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
On	0	yes
Off	2	no

Initial Bonus Settings After Reset

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Initial Bonus Settings After Reset	DSW4	4

location

name	number	inverted
DSW4	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Type 1	0	yes
Type 2	4	no

Bonus Accumulation

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Bonus Accumulation	DSW4	8

location

name	number	inverted
DSW4	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	no
Yes	8	yes

Auto Ticket Dispense

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Auto Ticket Dispense	DSW4	16

location

name	number	inverted
DSW4	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	no
Yes	16	yes

Ticket Dispense Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Ticket Dispense Mode	DSW4	96

location

name	number	inverted
DSW4	6	no
DSW4	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Continuous	96	no
Max 1 Ticket Per Game	64	no
Max 5 Tickets Per Game	32	no
Max 10 Tickets Per Game	0	yes

Show In Confirm Screen

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Show In Confirm Screen	DSW4	128

location

name	number	inverted
DSW4	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Level of Difficulty	0	yes
Percentage	128	no
