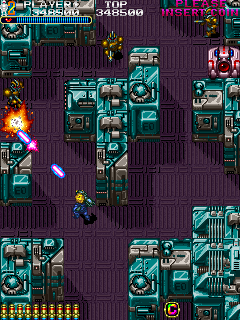

Out Zone (oldest set) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Lists: 731 - Software: 139884 - rom: 235974 - disk: 11384

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
outzonec	toaplan/toaplan1.cpp		no	no	no	yes	Out Zone (oldest set)	1990	Toaplan	outzone	outzone

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	270	320	240	55.161545	7000000	450	0	320	282	0	240	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
imperfect	good	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
rom7.6h	131072	936e25d8	ffb7990ea1539d868a9ad2fb711b0febd90f098d	maincpu	0	good	no
rom8.6f	131072	d19b3ecf	b406999b9f1e2104d958b42cc745bf79dbfe50b3	maincpu	1	good	no
tp_018_09.3j	32768	73d8e235	f37ad497259a467cdf2ec8b3e6e7d3e873087e6c	audiocpu	0	baddump	no	tp_018_09.3j
tp-018_rom5.19h	524288	c64ec7b6	e73b51c3713c2ea7a572a02531c15d1261ddeaa0	tiles	0	good	no	tp-018_rom5.19h
tp-018_rom6.22h	524288	64b6c5ac	07fa20115f603445c0d51af3465c0471c09d76b1	tiles	80000	good	no	tp-018_rom6.22h
tp-018_rom2.1c	131072	6bb72d16	a127b10d9c255542bd09fcb5df057c12fd28c0d1	sprites	0	good	no	tp-018_rom2.1c
tp-018_rom1.1e	131072	0934782d	e4a775ead23227d7d6e76aea23aa3103b511d031	sprites	1	good	no	tp-018_rom1.1e
tp-018_rom3.1d	131072	ec903c07	75906f31200877fc8f6e78c2606ad5be49778165	sprites	40000	good	no	tp-018_rom3.1d
tp-018_rom4.1b	131072	50cbf1a8	cfab1504746654b4a61912155e9aeca746c65321	sprites	40001	good	no	tp-018_rom4.1b
tp018_10.rom10.18a	32	bc88cced	5055362710c0f58823c05fb4c0e0eec638b91e3d	proms	0	good	no	tp018_10.rom10.18a
tp018_11.rom11.22c	32	a1e17492	9ddec4c97f2d541f69f3c32c47aaa21fd9699ae2	proms	20	good	no	tp018_11.rom11.22c

chip

type	tag	name	clock
cpu	maincpu	Motorola MC68000	10000000
cpu	audiocpu	Zilog Z80	3500000
audio	mono	Speaker
audio	ymsnd	YM3812 OPL2	3500000

device_ref

name
m68000
z80
screen
gfxdecode
palette
speaker
ym3812

sound

channels
1

feature

type	status	overall
sound	imperfect

input

players	coins	service	tilt
2	2	no	yes

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
joy	1	3	8	no
joy	2	3	8	no

port, analog

port_tag	analog_masks
:DSWA
:DSWB
:P1
:P2
:SYSTEM
:TJUMP
:VBLANK

dipswitch

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSWA	1

location

name	number	inverted
SW1	1	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	1	no

Flip Screen

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Flip Screen	DSWA	2

location

name	number	inverted
SW1	2	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	2	no

Service Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Service Mode	DSWA	4

location

name	number	inverted
SW1	3	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	4	no

Demo Sounds

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Demo Sounds	DSWA	8

location

name	number	inverted
SW1	4	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	8	no
On	0	yes

Coin A

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin A	DSWA	48

location

name	number	inverted
SW1	5	yes
SW1	6	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
4 Coins/1 Credit	48	no	TJUMP	15	eq	2
3 Coins/1 Credit	32	no	TJUMP	15	eq	2
2 Coins/1 Credit	32	no	TJUMP	15	ne	2
2 Coins/1 Credit	16	no	TJUMP	15	eq	2
1 Coin/1 Credit	0	yes
2 Coins/3 Credits	48	no	TJUMP	15	ne	2
1 Coin/2 Credits	16	no	TJUMP	15	ne	2

Coin B

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin B	DSWA	192

location

name	number	inverted
SW1	7	yes
SW1	8	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
2 Coins/1 Credit	128	no	TJUMP	15	ne	2
1 Coin/1 Credit	0	yes	TJUMP	15	ne	2
2 Coins/3 Credits	192	no	TJUMP	15	ne	2
1 Coin/2 Credits	64	no	TJUMP	15	ne	2
1 Coin/2 Credits	0	yes	TJUMP	15	eq	2
1 Coin/3 Credits	64	no	TJUMP	15	eq	2
1 Coin/4 Credits	128	no	TJUMP	15	eq	2
1 Coin/6 Credits	192	no	TJUMP	15	eq	2

Difficulty

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Difficulty	DSWB	3

location

name	number	inverted
SW2	1	yes
SW2	2	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Easy	1	no
Normal	0	yes
Hard	2	no
Very Hard	3	no

Bonus Life

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Bonus Life	DSWB	12

location

name	number	inverted
SW2	3	yes
SW2	4	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Every 300k	0	yes
200k and 500k	4	no
300k Only	8	no
None	12	no

Lives

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Lives	DSWB	48

location

name	number	inverted
SW2	5	yes
SW2	6	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1	48	no
2	32	no
3	0	yes
5	16	no

Invulnerability

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Invulnerability	DSWB	64

location

name	number	inverted
SW2	7	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	64	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSWB	128

location

name	number	inverted
SW2	8	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	128	no

Region

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Region	TJUMP	7

location

name	number	inverted
JMPR	1	yes
JMPR	2	yes
JMPR	3	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Japan	0	no
USA	1	no
Europe	2	no
Hong Kong	3	no
Korea	4	no
Taiwan	5	no
World	6	yes
World	7	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	TJUMP	8

location

name	number	inverted
JMPR	4	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	8	no
