Out Zone - mame (0287) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
outzone	toaplan/toaplan1.cpp		no	no	no	yes	Out Zone	1990	Toaplan

snap

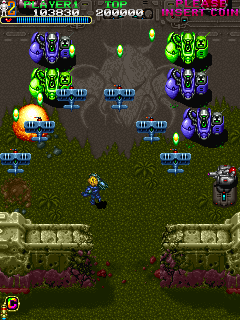

Out Zone png snap

Out Zone jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
outzone	27192	29/12/2025 11:31:37	240	320	96	96	0	Format24bppRgb	305:MAME 0.128u2 (Nov 1 2008)	803b1a5e32f873e629ac78f0a0324c099a9b794c

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	270	320	240	55.161545	7000000	450	0	320	282	0	240	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
tp_018_07.6h	131072	9704db16	12b43a6961a7f63f29563eb77aaacb70d3c368dd	maincpu	1	good	no
tp_018_08.6f	131072	127a38d7	d7f1ed91ff7d4de9e8215aa3b5cb65693145e433	maincpu	0	good	no
tp_018_09.3j	32768	73d8e235	f37ad497259a467cdf2ec8b3e6e7d3e873087e6c	audiocpu	0	good	no
tp-018_rom5.19h	524288	c64ec7b6	e73b51c3713c2ea7a572a02531c15d1261ddeaa0	tiles	0	good	no
tp-018_rom6.22h	524288	64b6c5ac	07fa20115f603445c0d51af3465c0471c09d76b1	tiles	80000	good	no
tp-018_rom2.1c	131072	6bb72d16	a127b10d9c255542bd09fcb5df057c12fd28c0d1	sprites	0	good	no
tp-018_rom1.1e	131072	0934782d	e4a775ead23227d7d6e76aea23aa3103b511d031	sprites	1	good	no
tp-018_rom3.1d	131072	ec903c07	75906f31200877fc8f6e78c2606ad5be49778165	sprites	40000	good	no
tp-018_rom4.1b	131072	50cbf1a8	cfab1504746654b4a61912155e9aeca746c65321	sprites	40001	good	no
tp018_10.rom10.18a	32	bc88cced	5055362710c0f58823c05fb4c0e0eec638b91e3d	proms	0	good	no
tp018_11.rom11.22c	32	a1e17492	9ddec4c97f2d541f69f3c32c47aaa21fd9699ae2	proms	20	good	no

chip

type	tag	name	clock
cpu	maincpu	Motorola MC68000	10000000
cpu	audiocpu	Zilog Z80	3500000
audio	mono	Speaker
audio	ymsnd	YM3812 OPL2	3500000

device_ref

tag	name
:maincpu	m68000
:audiocpu	z80
:screen	screen
:palette_0	palette
:palette_1	palette
:bcu	toaplan_bcu
:fcu	toaplan_fcu
:vctrl	toaplan_video_controller
:mono	speaker
:ymsnd	ym3812

sound

channels
1

input

players	coins	service	tilt
2	2	no	yes

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
joy	1	3	8	no
joy	2	3	8	no

port, analog

port_tag	analog_masks
:DSWA
:DSWB
:P1
:P2
:SYSTEM
:TJUMP
:VBLANK

dipswitch

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSWA	1

location

name	number	inverted
SW1	1	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	1	no

Flip Screen

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Flip Screen	DSWA	2

location

name	number	inverted
SW1	2	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	2	no

Service Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Service Mode	DSWA	4

location

name	number	inverted
SW1	3	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	4	no

Demo Sounds

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Demo Sounds	DSWA	8

location

name	number	inverted
SW1	4	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	8	no
On	0	yes

Coin A

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin A	DSWA	48

location

name	number	inverted
SW1	5	yes
SW1	6	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
4 Coins/1 Credit	48	no	TJUMP	15	eq	2
3 Coins/1 Credit	32	no	TJUMP	15	eq	2
2 Coins/1 Credit	32	no	TJUMP	15	ne	2
2 Coins/1 Credit	16	no	TJUMP	15	eq	2
1 Coin/1 Credit	0	yes
3 Coins/4 Credits	48	no	TJUMP	15	ne	2
1 Coin/2 Credits	16	no	TJUMP	15	ne	2

Coin B

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin B	DSWA	192

location

name	number	inverted
SW1	7	yes
SW1	8	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
2 Coins/1 Credit	128	no	TJUMP	15	ne	2
1 Coin/1 Credit	0	yes	TJUMP	15	ne	2
3 Coins/4 Credits	192	no	TJUMP	15	ne	2
1 Coin/2 Credits	64	no	TJUMP	15	ne	2
1 Coin/2 Credits	0	yes	TJUMP	15	eq	2
1 Coin/3 Credits	64	no	TJUMP	15	eq	2
1 Coin/4 Credits	128	no	TJUMP	15	eq	2
1 Coin/6 Credits	192	no	TJUMP	15	eq	2

Difficulty

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Difficulty	DSWB	3

location

name	number	inverted
SW2	1	yes
SW2	2	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Easy	1	no
Normal	0	yes
Hard	2	no
Very Hard	3	no

Bonus Life

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Bonus Life	DSWB	12

location

name	number	inverted
SW2	3	yes
SW2	4	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Every 300k	0	yes
200k and 500k	4	no
300k Only	8	no
None	12	no

Lives

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Lives	DSWB	48

location

name	number	inverted
SW2	5	yes
SW2	6	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1	48	no
2	32	no
3	0	yes
5	16	no

Invulnerability

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Invulnerability	DSWB	64

location

name	number	inverted
SW2	7	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	64	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSWB	128

location

name	number	inverted
SW2	8	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	128	no

Region

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Region	TJUMP	15

location

name	number	inverted
JMPR	1	yes
JMPR	2	yes
JMPR	3	yes
JMPR	4	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Japan	0	no
USA	1	no
Europe	2	yes
Hong Kong	3	no
Korea	4	no
Taiwan	5	no
Taiwan (Spacy Co., Ltd.)	6	no
USA (Romstar, Inc.)	7	no
Hong Kong & China (Honest Trading Co.)	8	no
Japan	9	no
Japan	10	no
Japan	11	no
Japan	12	no
Japan	13	no
Japan	14	no
Japan	15	no

clones

name	description
outzoneh	Out Zone (harder)
outzonea	Out Zone (old set)
outzoneb	Out Zone (older set)
outzonec	Out Zone (oldest set)
outzonecv	Out Zone (Zero Wing TP-015 PCB conversion)
