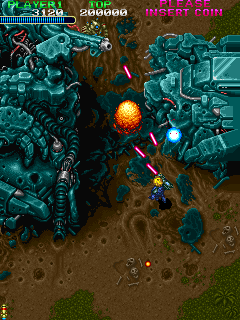

Out Zone (Zero Wing TP-015 PCB conversion) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Lists: 731 - Software: 139884 - rom: 235974 - disk: 11384

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
outzonecv	toaplan/toaplan1.cpp		no	no	no	yes	Out Zone (Zero Wing TP-015 PCB conversion)	1990	Toaplan	outzone	outzone

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	270	320	240	57.613169	7000000	450	0	320	270	0	240	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
tp_018_07+.6f	131072	8768d843	17421d390e490191aa419bc541d78456a1675bc4	maincpu	0	good	no
tp_018_08+.6j	131072	af238f71	2643f8d9e78ddd04ceb40d8f8c6412129c678baf	maincpu	1	good	no
tp_018_09+.9l	32768	b7201606	d413074b59f25eb2136c1bc98189550410658493	audiocpu	0	good	no
tp-018_rom5.bin	524288	c64ec7b6	e73b51c3713c2ea7a572a02531c15d1261ddeaa0	tiles	0	good	no	tp-018_rom5.19h
tp-018_rom6.bin	524288	64b6c5ac	07fa20115f603445c0d51af3465c0471c09d76b1	tiles	80000	good	no	tp-018_rom6.22h
tp-018_rom2.22a	131072	6bb72d16	a127b10d9c255542bd09fcb5df057c12fd28c0d1	sprites	0	good	no	tp-018_rom2.1c
tp-018_rom1.20a	131072	0934782d	e4a775ead23227d7d6e76aea23aa3103b511d031	sprites	1	good	no	tp-018_rom1.1e
tp-018_rom3.25a	131072	ec903c07	75906f31200877fc8f6e78c2606ad5be49778165	sprites	40000	good	no	tp-018_rom3.1d
tp-018_rom4.24a	131072	50cbf1a8	cfab1504746654b4a61912155e9aeca746c65321	sprites	40001	good	no	tp-018_rom4.1b
tp015_14.prom14.3d	32	bc88cced	5055362710c0f58823c05fb4c0e0eec638b91e3d	proms	0	good	no	tp018_10.rom10.18a
tp015_15.prom15.2c	32	a1e17492	9ddec4c97f2d541f69f3c32c47aaa21fd9699ae2	proms	20	good	no	tp018_11.rom11.22c

chip

type	tag	name	clock
cpu	maincpu	Motorola MC68000	10000000
cpu	audiocpu	Zilog Z80	3500000
audio	mono	Speaker
audio	ymsnd	YM3812 OPL2	3500000

device_ref

name
m68000
z80
screen
gfxdecode
palette
speaker
ym3812

sound

channels
1

input

players	coins	service	tilt
2	2	no	yes

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
joy	1	3	8	no
joy	2	3	8	no

port, analog

port_tag	analog_masks
:DSWA
:DSWB
:P1
:P2
:SYSTEM
:TJUMP
:VBLANK

dipswitch

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSWA	1

location

name	number	inverted
SW1	1	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	1	no

Flip Screen

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Flip Screen	DSWA	2

location

name	number	inverted
SW1	2	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	2	no

Service Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Service Mode	DSWA	4

location

name	number	inverted
SW1	3	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	4	no

Demo Sounds

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Demo Sounds	DSWA	8

location

name	number	inverted
SW1	4	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	8	no
On	0	yes

Coin A

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin A	DSWA	48

location

name	number	inverted
SW1	5	yes
SW1	6	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
4 Coins/1 Credit	48	no	TJUMP	15	eq	2
3 Coins/1 Credit	32	no	TJUMP	15	eq	2
2 Coins/1 Credit	32	no	TJUMP	15	ne	2
2 Coins/1 Credit	16	no	TJUMP	15	eq	2
1 Coin/1 Credit	0	yes
2 Coins/3 Credits	48	no	TJUMP	15	ne	2
1 Coin/2 Credits	16	no	TJUMP	15	ne	2

Coin B

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin B	DSWA	192

location

name	number	inverted
SW1	7	yes
SW1	8	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
2 Coins/1 Credit	128	no	TJUMP	15	ne	2
1 Coin/1 Credit	0	yes	TJUMP	15	ne	2
2 Coins/3 Credits	192	no	TJUMP	15	ne	2
1 Coin/2 Credits	64	no	TJUMP	15	ne	2
1 Coin/2 Credits	0	yes	TJUMP	15	eq	2
1 Coin/3 Credits	64	no	TJUMP	15	eq	2
1 Coin/4 Credits	128	no	TJUMP	15	eq	2
1 Coin/6 Credits	192	no	TJUMP	15	eq	2

Difficulty

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Difficulty	DSWB	3

location

name	number	inverted
SW2	1	yes
SW2	2	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Easy	1	no
Normal	0	yes
Hard	2	no
Very Hard	3	no

Bonus Life

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Bonus Life	DSWB	12

location

name	number	inverted
SW2	3	yes
SW2	4	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Every 300k	0	yes
200k and 500k	4	no
300k Only	8	no
None	12	no

Lives

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Lives	DSWB	48

location

name	number	inverted
SW2	5	yes
SW2	6	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1	48	no
2	32	no
3	0	yes
5	16	no

Invulnerability

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Invulnerability	DSWB	64

location

name	number	inverted
SW2	7	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	64	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSWB	128

location

name	number	inverted
SW2	8	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	128	no

Region

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Region	TJUMP	15

location

name	number	inverted
JMPR	1	yes
JMPR	2	yes
JMPR	3	yes
JMPR	4	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Japan	0	no
USA	1	no
Europe	2	yes
Hong Kong	3	no
Korea	4	no
Taiwan	5	no
Taiwan (Spacy Co., Ltd.)	6	no
USA (Romstar, Inc.)	7	no
Hong Kong & China (Honest Trading Co.)	8	no
Japan	9	no
Japan	10	no
Japan	11	no
Japan	12	no
Japan	13	no
Japan	14	no
Japan	15	no
