mame (0289) • machine pcd • PC-D

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
pcd	siemens/pcd.cpp		no	no	no	yes	PC-D	1984	Siemens

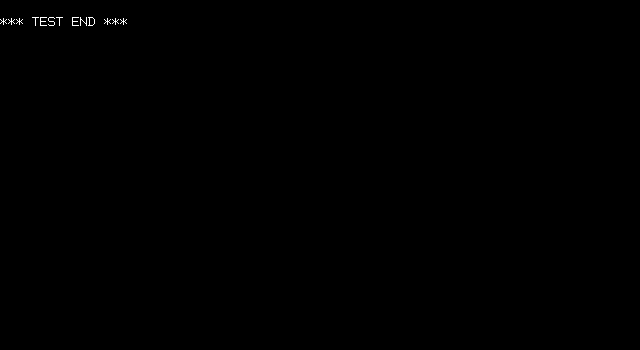

snap

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
pcd	1009	29/12/2025 11:31:37	640	350	96	96	0	Format24bppRgb	305:MAME 0.196 (Mar 27 2018)	9a61ed1de9cdfedab5bd7ee313950ead1390e5a8

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
video:screen	raster	0	640	350	50.474460	16000000	832	0	640	381	0	350	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	bios
361d0359.d42	8192	5b4461e4	db6756aeabb2e6d3921dc7571a5bed3497b964bf	bios	1	good	no	v3
361d0359.d43	8192	71c3189d	e8dd6c632bfc833074d3a833ea7f59bb5460f313	bios	0	good	no	v3
s26361-d359.d42	8192	e20244dd	0ebc5ddb93baacd9106f1917380de58aac64fe73	bios	1	good	no	v2
s26361-d359.d43	8192	e03db2ec	fcae8b0c9e7543706817b0a53872826633361fda	bios	0	good	no	v2

chip

type	tag	name	clock
cpu	maincpu	Intel 80186	16000000
cpu	video:graphics	Intel 8741A	8000000
cpu	keyboard:mcu	Intel 8035	5760000
audio	fdc:0:55f:flopsndout	Speaker
audio	fdc:0:55f:flopsnd	Floppy sound	44100
audio	fdc:1:55f:flopsndout	Speaker
audio	fdc:1:55f:flopsnd	Floppy sound	44100
audio	mono	Speaker
audio	speaker	Filtered DAC
audio	keyboard:mono	Speaker
audio	keyboard:speaker	Filtered DAC

softwarelist

tag	name	status	filter
flop_list	pcd_flop	original

device_ref

tag	name
:maincpu	i80186
:timer0_tick	timer
:pic1	pic8259
:pic2	pic8259
:video	pcd_video
:video:graphics	i8741a
:video:screen	screen
:video:palette	palette
:video:crtc	scn2674
:video:mouse_timer	timer
:ram	ram
:nvram	nvram
:fdc	wd2793
:fdc:0	floppy_connector
:fdc:0:55f	teac_fd_55f
:fdc:0:55f:flopsndout	speaker
:fdc:0:55f:flopsnd	flopsnd
:fdc:1	floppy_connector
:fdc:1:55f	teac_fd_55f
:fdc:1:55f:flopsndout	speaker
:fdc:1:55f:flopsnd	flopsnd
:usart1	scn2661b
:usart2	scn2661b
:usart3	scn2661b
:rs232_1	rs232
:rs232_2	rs232
:mono	speaker
:speaker	speaker_sound_device
:rtc	mc146818
:keyboard	pcd_kbd
:keyboard:mcu	i8035
:keyboard:mono	speaker
:keyboard:speaker	speaker_sound_device
:scsi	scsi
:scsi:1	scsi_slot
:scsi:1:harddisk	omti5100
:scsi:1:harddisk:image0	harddisk_image
:scsi:1:harddisk:image1	harddisk_image
:scsi:2	scsi_slot
:scsi:3	scsi_slot
:scsi:4	scsi_slot
:scsi:5	scsi_slot
:scsi:6	scsi_slot
:scsi:7	scsi_slot
:scsi_data_out	output_latch
:scsi_data_in	input_buffer
:flop_list	software_list

biosset

name	description	default
v2	V2 GS	no
v3	V3 GS4	no

sound

channels
4

ramoption

name	default
1M	yes

device, instance

type	tag	interface	name	briefname
floppydisk	fdc:0:55f	floppy_5_25	floppydisk1	flop1
floppydisk	fdc:1:55f	floppy_5_25	floppydisk2	flop2
harddisk	scsi:1:harddisk:image0		harddisk1	hard1
harddisk	scsi:1:harddisk:image1		harddisk2	hard2

device, extension

type	tag	interface	extension_names
floppydisk	fdc:0:55f	floppy_5_25	mfi, dfi, mfm, td0, imd, 86f, d77, d88, 1dd, cqm, cqi, dsk, ima, img, ufi, 360, ipf
floppydisk	fdc:1:55f	floppy_5_25	mfi, dfi, mfm, td0, imd, 86f, d77, d88, 1dd, cqm, cqi, dsk, ima, img, ufi, 360, ipf
harddisk	scsi:1:harddisk:image0		chd, hd, hdv, 2mg, hdi
harddisk	scsi:1:harddisk:image1		chd, hd, hdv, 2mg, hdi

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
mouse		2		no	0	4095	50
keyboard		126		no

port, analog

port_tag	analog_masks
:keyboard:ROW.0
:keyboard:ROW.1
:keyboard:ROW.10
:keyboard:ROW.11
:keyboard:ROW.12
:keyboard:ROW.13
:keyboard:ROW.14
:keyboard:ROW.15
:keyboard:ROW.16
:keyboard:ROW.2
:keyboard:ROW.3
:keyboard:ROW.4
:keyboard:ROW.5
:keyboard:ROW.6
:keyboard:ROW.7
:keyboard:ROW.8
:keyboard:ROW.9
:scsi:1:harddisk:SCSI_ID
:video:MOUSE
:video:MOUSEX	4095
:video:MOUSEY	4095

slot, slotoption

slot_name	slotoption_name	slotoption_devname	slotoption_default
fdc:0	55g	teac_fd_55g	no
fdc:0	55f	teac_fd_55f	yes
fdc:1	55g	teac_fd_55g	no
fdc:1	55f	teac_fd_55f	yes
rs232_1	terminal	serial_terminal	no
rs232_1	swtpc8212	swtpc8212_terminal	no
rs232_1	sunkbd	sunkbd_adaptor	no
rs232_1	rs_printer	rs_serial_printer	no
rs232_1	rs232_sync_io	rs232_sync_io	no
rs232_1	printer	serial_printer	no
rs232_1	patch	rs232_patch_box	no
rs232_1	s97801	s97801_terminal	no
rs232_1	msystems_mouse	rs232_mouse_hle_msystems	no
rs232_1	scorpion	scorpion_ic	no
rs232_1	nss_tvi	nss_tvinterface	no
rs232_1	mockingboard	mockingboardd	no
rs232_1	loopback	rs232_loopback	no
rs232_1	keyboard	serial_keyboard	no
rs232_1	ie15	ie15_terminal	no
rs232_1	null_modem	null_modem	no
rs232_1	votraxtnt	serial_votraxtnt	no
rs232_1	h19	serial_heath_h19	no
rs232_1	dec_loopback	dec_rs232_loopback	no
rs232_1	pty	pseudo_terminal	no
rs232_1	auto3a	auto3a_terminal	no
rs232_2	terminal	serial_terminal	no
rs232_2	swtpc8212	swtpc8212_terminal	no
rs232_2	sunkbd	sunkbd_adaptor	no
rs232_2	rs_printer	rs_serial_printer	no
rs232_2	rs232_sync_io	rs232_sync_io	no
rs232_2	printer	serial_printer	no
rs232_2	patch	rs232_patch_box	no
rs232_2	s97801	s97801_terminal	no
rs232_2	msystems_mouse	rs232_mouse_hle_msystems	no
rs232_2	scorpion	scorpion_ic	no
rs232_2	nss_tvi	nss_tvinterface	no
rs232_2	mockingboard	mockingboardd	no
rs232_2	loopback	rs232_loopback	no
rs232_2	keyboard	serial_keyboard	no
rs232_2	ie15	ie15_terminal	no
rs232_2	null_modem	null_modem	no
rs232_2	votraxtnt	serial_votraxtnt	no
rs232_2	h19	serial_heath_h19	no
rs232_2	dec_loopback	dec_rs232_loopback	no
rs232_2	pty	pseudo_terminal	no
rs232_2	auto3a	auto3a_terminal	no
scsi:1	harddisk	omti5100	yes
scsi:2
scsi:3
scsi:4
scsi:5
scsi:6
scsi:7

configuration

SCSI ID

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
SCSI ID	scsi:1:harddisk:SCSI_ID	7

setting

name	value	default
0	0	yes
1	1	no
2	2	no
3	3	no
4	4	no
5	5	no
6	6	no
7	7	no

clones

name	description
pcx	PC-X
