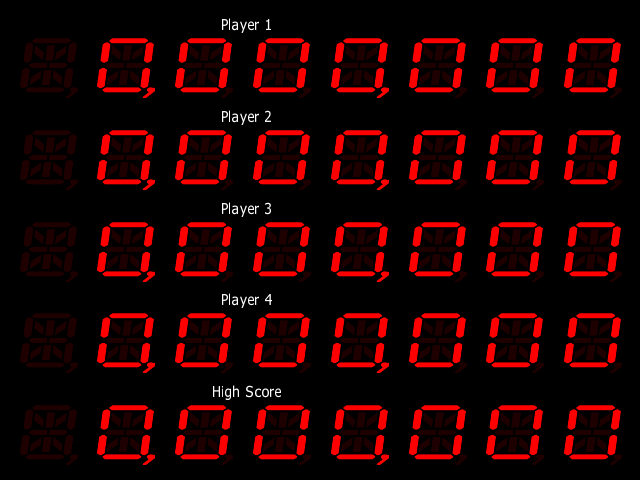

Pinball Champ (7 digits) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Machines: 48893 - rom: 364836 - disk: 1378

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
pinchamp7	pinball/zac_2.cpp	genpin	no	no	yes	yes	Pinball Champ (7 digits)	1983	Zaccaria	pinchamp	pinchamp

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	supported	yes	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
pblchmp7.ic1	4096	f050b7fa	918bdfd77e785c546202c29b1e296ca5f683ca66	maincpu	0	good	no
pblchmp7.ic2	4096	cbcb63c7	c15329482f02614185adcd0475a02c667cadfc98	maincpu	800	good	no
pblchmp7.ic3	4096	54abff9c	925c7c1fb903bd6069aee1967c75eb8e61ecf591	maincpu	1000	good	no
pchmp_gb.1c	4096	f739fcba	7460f1da99c474601e8cec64683cbd61837a82e8	cpu2	f000	good	no	pchmp_gb.1c
pchmp_gb.1e	4096	24d83e74	f78e151c9885b965cd5209777580414522362ebf	cpu2	e000	good	no	pchmp_gb.1e
pchmp_gb.1f	4096	d055e8c6	0820d941880aa8925b400c792af7ce6b80dcbc48	cpu2	d000	good	no	pchmp_gb.1f
pchmp_gb.1g	2048	39b68215	4d57f1f1f71f7bdbef67ca4cc62cfde80d1ab04c	cpu2	c000	good	no	pchmp_gb.1g

chip

type	tag	name	clock
cpu	maincpu	Signetics 2650	3000000
audio	mechvol	Speaker
audio	samples	Samples

device_ref

name
s2650
nvram
timer
timer
speaker
samples

sample

name
bumper
chime1
chime2
chime3
chime4
hole
knocker
sling
coinin
outhole
kickback
drop_target_reset
coil_coinlockout_engage
coil_coinlockout_release
relay_engage
relay_release
solenoid_engage
solenoid_release

sound

channels
1

feature

type	status	overall
sound	unemulated

input

players	coins	service	tilt
1	3	no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
keypad		54		no

port, analog

port_tag	analog_masks
:DSW
:X0
:X1
:X2
:X3
:X4
:X5
:X6
:X7

dipswitch

Switch A

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Switch A	DSW	1

location

name	number	inverted
SW1	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	1	yes
On	0	no

Switch B

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Switch B	DSW	2

location

name	number	inverted
SW1	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2	yes
On	0	no

Switch C

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Switch C	DSW	4

location

name	number	inverted
SW1	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	4	yes
On	0	no

Switch D

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Switch D	DSW	8

location

name	number	inverted
SW1	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	8	yes
On	0	no
