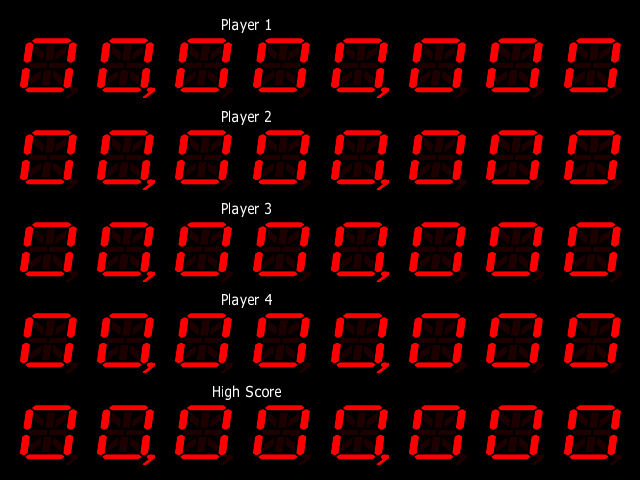

Pinball Champ (German speech) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Machines: 48893 - rom: 364836 - disk: 1378

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
pinchampg	pinball/zac_2.cpp	genpin	no	no	yes	yes	Pinball Champ (German speech)	1983	Zaccaria	pinchamp	pinchamp

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	supported	yes	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
pinchamp.ic1	4096	1412ec33	82c158ec0536f76cbe80e8c12e0047579439a5b7	maincpu	0	good	no	pinchamp.ic1
pinchamp.ic2	4096	a24ba4c6	4f02c4d6cd727fa96a68c72012b0b4a4484397c4	maincpu	800	good	no	pinchamp.ic2
pinchamp.ic3	4096	df5f4f88	249cf958b0998aa41fa26c617be9b6c52c2f5549	maincpu	1000	good	no	pinchamp.ic3
pchmp_de.1c	4096	6e2defe5	fcb62da1aed23d9fb9a222862b4b772aad9792a1	cpu2	f000	good	no
pchmp_de.1e	4096	703b3cae	c7bd021e936fb0fd4bc16d48c3ef1df69d1fe01a	cpu2	e000	good	no
pchmp_de.1f	4096	f3f4b950	ed5c02f701530d2d6255cc72d695e24d4df40fc3	cpu2	d000	good	no
pchmp_de.1g	2048	44adae13	0d8d538704db62b41ad5781ec53c34e482342025	cpu2	c000	good	no

chip

type	tag	name	clock
cpu	maincpu	Signetics 2650	3000000
audio	mechvol	Speaker
audio	samples	Samples

device_ref

name
s2650
nvram
timer
timer
speaker
samples

sample

name
bumper
chime1
chime2
chime3
chime4
hole
knocker
sling
coinin
outhole
kickback
drop_target_reset
coil_coinlockout_engage
coil_coinlockout_release
relay_engage
relay_release
solenoid_engage
solenoid_release

sound

channels
1

feature

type	status	overall
sound	unemulated

input

players	coins	service	tilt
1	3	no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
keypad		54		no

port, analog

port_tag	analog_masks
:DSW
:X0
:X1
:X2
:X3
:X4
:X5
:X6
:X7

dipswitch

Switch A

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Switch A	DSW	1

location

name	number	inverted
SW1	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	1	yes
On	0	no

Switch B

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Switch B	DSW	2

location

name	number	inverted
SW1	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2	yes
On	0	no

Switch C

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Switch C	DSW	4

location

name	number	inverted
SW1	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	4	yes
On	0	no

Switch D

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Switch D	DSW	8

location

name	number	inverted
SW1	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	8	yes
On	0	no
