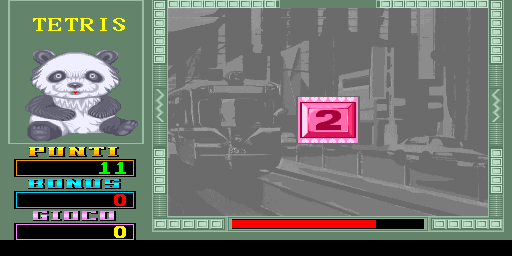

PK Tetris (v346I) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Lists: 731 - Software: 139884 - rom: 235974 - disk: 11384

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
pktet346	igs/igspoker.cpp		no	no	no	yes	PK Tetris (v346I)	1993?	IGS

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	512	256	57.000000								no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
v-346i.bin	65536	8015ef13	62841daff380d40c14ddb9c1b3fccdbb287e0b0d	maincpu	0	good	no
346i-3.bin	131072	cfc4954d	c68edbe0a7ce6a95d978756d2c1c8c5935786bcc	gfx1	0	good	no
346i-2.bin	131072	f198a24f	a4bc5936f8729b00dc3c5034ce5689e4d16284bf	gfx1	20000	good	no
346i-1.bin	131072	1f8ae481	259808422ae1c89f08deb982387b342a68afad7f	gfx1	40000	good	no

chip

type	tag	name	clock
cpu	maincpu	Zilog Z80	3579545
audio	mono	Speaker
audio	ymsnd	YM2413 OPLL	3579545

device_ref

name
z80
timer
nvram
screen
gfxdecode
palette
speaker
i8255
ym2413

sound

channels
1

input

players	coins	service	tilt
1	2	yes	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
gambling		9		no

port, analog

port_tag	analog_masks
:BUTTONS1
:BUTTONS2
:COINS
:DSW1
:DSW2
:DSW3
:DSW4
:DSW5
:SERVICE

dipswitch

Demo Sounds

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Demo Sounds	DSW1	1

location

name	number	inverted
SWA	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	1	no
On	0	yes

Demo Game

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Demo Game	DSW1	2

location

name	number	inverted
SWA	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2	no
On	0	yes

Open Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Open Mode	DSW1	4

location

name	number	inverted
SWA	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Demo	4	yes
Amuse	0	no

Min Bet to Start

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Min Bet to Start	DSW1	24

location

name	number	inverted
SWA	5	no
SWA	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1	24	yes
5	16	no
10	8	no
20	0	no

Max Bet

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Max Bet	DSW1	224

location

name	number	inverted
SWA	3	no
SWA	2	no
SWA	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1	224	yes
5	192	no
10	160	no
20	128	no
50	96	no
75	64	no
100	32	no
200	0	no

Amuse Coin

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Amuse Coin	DSW2	1

location

name	number	inverted
SWB	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1:1	1	yes
5:1	0	no

Amuse Game

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Amuse Game	DSW2	2

location

name	number	inverted
SWB	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Free	2	yes
1 Credit	0	no

Display Card

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Display Card	DSW2	4

location

name	number	inverted
SWB	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Poker	4	yes
Numbers	0	no

Key In Rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Key In Rate	DSW2	24

location

name	number	inverted
SWB	5	no
SWB	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
10	24	yes
20	16	no
50	8	no
100	0	no

Coin Setting

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin Setting	DSW2	224

location

name	number	inverted
SWB	3	no
SWB	2	no
SWB	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1	224	yes
2	192	no
5	160	no
10	128	no
20	96	no
40	64	no
50	32	no
100	0	no

Speed

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Speed	DSW3	1

location

name	number	inverted
SWC	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Slow	1	yes
Quick	0	no

Quick Get

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Quick Get	DSW3	2

location

name	number	inverted
SWC	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2	yes
On	0	no

Bet Base

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Bet Base	DSW3	4

location

name	number	inverted
SWC	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1	4	yes
10	0	no

System Limit

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
System Limit	DSW3	24

location

name	number	inverted
SWC	5	no
SWC	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
30000	24	yes
50000	16	no
70000	8	no
Unlimited	0	no

Key Out Base

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Key Out Base	DSW3	224

location

name	number	inverted
SWC	3	no
SWC	2	no
SWC	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1	224	yes
10	192	no
20	160	no
50	128	no
100	96	no
100	64	no
100	32	no
100	0	no

Double Game

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Double Game	DSW4	1

location

name	number	inverted
SWD	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	1	yes
On	0	no

Royal Appear

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Royal Appear	DSW4	2

location

name	number	inverted
SWD	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2	yes
On	0	no

5 Kind Appear

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
5 Kind Appear	DSW4	4

location

name	number	inverted
SWD	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	4	yes
On	0	no

Payout

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Payout	DSW4	8

location

name	number	inverted
SWD	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Manual	8	yes
Auto	0	no

Hopper

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Hopper	DSW4	16

location

name	number	inverted
SWD	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	16	no
Yes	0	yes

Ticket Set

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Ticket Set	DSW4	224

location

name	number	inverted
SWD	3	no
SWD	2	no
SWD	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1:1	224	yes
5:1	192	no
10:1	160	no
20:1	128	no
25:1	96	no
50:1	64	no
100:1	32	no
200:1	0	no

Double Gate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Double Gate	DSW5	1

location

name	number	inverted
SWE	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Easy	1	yes
Yes	0	no

Percentage

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Percentage	DSW5	2

location

name	number	inverted
SWE	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2	yes
On	0	no
