Plus/4 (PAL) - mame (0288) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
plus4p	commodore/plus4.cpp		no	no	no	yes	Plus/4 (PAL)	1984	Commodore Business Machines	c264	c264

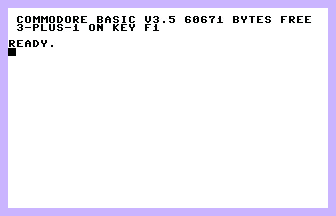

snap

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
plus4p	1501	29/12/2025 11:31:38	336	216	96	96	0	Format24bppRgb	305:MAME 0.176 (Jul 27 2016)	3f7219ec5cb71f6194f4e32e2088ec76521a0628

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	336	216	50.000000								no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
318004-03.u24	16384	77bab934	97814dab9d757fe5a3a61d357a9a81da588a9783	kernal	4000	good	no		r3
318004-04.u24	16384	be54ed79	514ad3c29d01a2c0a3b143d9c1d4143b1912b793	kernal	4000	good	no		r4
318004-05.u24	16384	71c07bd4	7c7e07f016391174a557e790c4ef1cbe33512cdb	kernal	4000	good	no		r5
diag264_097_pal_kernal.u24	16384	bf0b3657	47c731739f6c1bd1c8446b2cacfe1eaddb5df966	kernal	4000	good	no		diag264
318006-01.u23	16384	74eaae87	161c96b4ad20f3a4f2321808e37a5ded26a135dd	kernal	0	good	no
317053-01.u25	16384	4fd1d8cb	3b69f6e7cb4c18bb08e203fb18b7dabfa853390f	function	0	good	no
317054-01.u26	16384	109de2fc	0ad7ac2db7da692d972e586ca0dfd747d82c7693	function	4000	good	no
251641-02.u19	245	83be2076	a89b18b2261233443c933c8b4663b108e7630924	u19	0	good	no	251641-02

chip

type	tag	name	clock
cpu	u2	MOS Technology 7501	886723
cpu	iec8:c1541:ucd5	MOS Technology 6502	1000000
audio	mono	Speaker
audio	u1	MOS 7360 TED	17734470
audio	tape:c1531:cassette	Cassette
audio	iec8:c1541:uc4:0:525ssqd:flopsndout	Speaker
audio	iec8:c1541:uc4:0:525ssqd:flopsnd	Floppy sound	44100

softwarelist

tag	name	status	filter
cart_list	plus4_cart	original	PAL
cass_list	plus4_cass	original	PAL
flop_list	plus4_flop	original	PAL
quik_list	plus4_quik	original	PAL

device_ref

tag	name
:u2	m7501
:mainirq	ipt_merge_any_hi
:screen	screen
:mono	speaker
:u1	mos7360
:u19	pls100
:user	pet_user_port
:u3	mos6551
:u3:clock	clock
:u5	mos6529
:u27	mos6529
:tape	pet_datassette_port
:tape:c1531	c1531
:tape:c1531:cassette	cassette_image
:iec4	cbm_iec_slot
:iec8	cbm_iec_slot
:iec8:c1541	c1541
:iec8:c1541:ucd5	m6502
:iec8:c1541:uab1	mos6522
:iec8:c1541:ucd4	mos6522
:iec8:c1541:uc4	c64h156
:iec8:c1541:uc4:0	floppy_connector
:iec8:c1541:uc4:0:525ssqd	alps_3255190x
:iec8:c1541:uc4:0:525ssqd:flopsndout	speaker
:iec8:c1541:uc4:0:525ssqd:flopsnd	flopsnd
:iec9	cbm_iec_slot
:iec10	cbm_iec_slot
:iec11	cbm_iec_slot
:iec_bus	cbm_iec
:joy1	vcs_control_port
:joy2	vcs_control_port
:joy2:joy	vcs_joystick
:exp	plus4_expansion_slot
:quickload	quickload
:ram	ram
:cart_list	software_list
:cass_list	software_list
:flop_list	software_list
:quik_list	software_list

biosset

name	description	default
r3	Revision 3	no
r4	Revision 4	no
r5	Revision 5	yes
diag264	Diag264 v0.97	no

sound

channels
2

ramoption

name	default
64K	yes

device, instance

type	tag	interface	name	briefname
cassette	tape:c1531:cassette	cbm_cass	cassette	cass
floppydisk	iec8:c1541:uc4:0:525ssqd	floppy_5_25	floppydisk	flop
cartridge	exp	plus4_cart	cartridge	cart
quickload	quickload	cbm_quik	quickload	quik

device, extension

type	tag	interface	extension_names
cassette	tape:c1531:cassette	cbm_cass	wav, flac, aif, aiff, tap
floppydisk	iec8:c1541:uc4:0:525ssqd	floppy_5_25	mfi, dfi, d64, g64, g41, g71
cartridge	exp	plus4_cart	rom, bin
quickload	quickload	cbm_quik	p00, prg

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
joy		1	8	no
keyboard		65		no

port, analog

port_tag	analog_masks
:JOYSWAP
:LOCK
:ROW0
:ROW1
:ROW2
:ROW3
:ROW4
:ROW5
:ROW6
:ROW7
:iec8:c1541:ADDRESS
:joy2:joy:JOY

slot, slotoption

slot_name	slotoption_name	slotoption_devname	slotoption_default
user	rs232	vic1011	no
user	diag264	diag264_user_port_loopback	no
tape	diag264	diag264_loopback_cassette	no
tape	c1531	c1531	yes
iec4	mps1200	mps1200	no
iec4	fd148	fd148	no
iec4	enh2000	enh2000	no
iec4	cmdrc2	cmdrc2	no
iec4	technica	technica	no
iec4	msdsd1	msdsd1	no
iec4	vic1520	vic1520	no
iec4	vic1515	vic1515	no
iec4	diag264	diag264_serial_loopback	no
iec4	serialbox	cbm_serbox	no
iec4	interpod	cbm_interpod	no
iec4	cmdhd	cmdhd	no
iec4	c5181	xetec_c5181	no
iec4	nl10	c64_nl10	no
iec4	c1570	c1570	no
iec4	indusgt	indusgt	no
iec4	c1541ii	c1541ii	no
iec4	csd1	csd1	no
iec4	c1581	c1581	no
iec4	mps1250	mps1250	no
iec4	c1526	c1526	no
iec4	minichief	minichif	no
iec4	c1571	c1571	no
iec4	fsd1	fsd1	no
iec4	msdsd2	msdsd2	no
iec4	bluechip	bluechip	no
iec4	c1541pdc	c1541pdc	no
iec4	c1541pd	c1541pd	no
iec4	c1541	c1541	no
iec4	fd2000	fd2000	no
iec4	c1541dd	c1541dd	no
iec4	fd4000	fd4000	no
iec4	c1541c	c1541c	no
iec4	fsd2	fsd2	no
iec4	c1540	c1540	no
iec8	mps1200	mps1200	no
iec8	fd148	fd148	no
iec8	enh2000	enh2000	no
iec8	cmdrc2	cmdrc2	no
iec8	technica	technica	no
iec8	msdsd1	msdsd1	no
iec8	vic1520	vic1520	no
iec8	vic1515	vic1515	no
iec8	diag264	diag264_serial_loopback	no
iec8	serialbox	cbm_serbox	no
iec8	interpod	cbm_interpod	no
iec8	cmdhd	cmdhd	no
iec8	c5181	xetec_c5181	no
iec8	nl10	c64_nl10	no
iec8	c1570	c1570	no
iec8	indusgt	indusgt	no
iec8	c1541ii	c1541ii	no
iec8	csd1	csd1	no
iec8	c1581	c1581	no
iec8	mps1250	mps1250	no
iec8	c1526	c1526	no
iec8	minichief	minichif	no
iec8	c1571	c1571	no
iec8	fsd1	fsd1	no
iec8	msdsd2	msdsd2	no
iec8	bluechip	bluechip	no
iec8	c1541pdc	c1541pdc	no
iec8	c1541pd	c1541pd	no
iec8	c1541	c1541	yes
iec8	fd2000	fd2000	no
iec8	c1541dd	c1541dd	no
iec8	fd4000	fd4000	no
iec8	c1541c	c1541c	no
iec8	fsd2	fsd2	no
iec8	c1540	c1540	no
iec9	mps1200	mps1200	no
iec9	fd148	fd148	no
iec9	enh2000	enh2000	no
iec9	cmdrc2	cmdrc2	no
iec9	technica	technica	no
iec9	msdsd1	msdsd1	no
iec9	vic1520	vic1520	no
iec9	vic1515	vic1515	no
iec9	diag264	diag264_serial_loopback	no
iec9	serialbox	cbm_serbox	no
iec9	interpod	cbm_interpod	no
iec9	cmdhd	cmdhd	no
iec9	c5181	xetec_c5181	no
iec9	nl10	c64_nl10	no
iec9	c1570	c1570	no
iec9	indusgt	indusgt	no
iec9	c1541ii	c1541ii	no
iec9	csd1	csd1	no
iec9	c1581	c1581	no
iec9	mps1250	mps1250	no
iec9	c1526	c1526	no
iec9	minichief	minichif	no
iec9	c1571	c1571	no
iec9	fsd1	fsd1	no
iec9	msdsd2	msdsd2	no
iec9	bluechip	bluechip	no
iec9	c1541pdc	c1541pdc	no
iec9	c1541pd	c1541pd	no
iec9	c1541	c1541	no
iec9	fd2000	fd2000	no
iec9	c1541dd	c1541dd	no
iec9	fd4000	fd4000	no
iec9	c1541c	c1541c	no
iec9	fsd2	fsd2	no
iec9	c1540	c1540	no
iec10	mps1200	mps1200	no
iec10	fd148	fd148	no
iec10	enh2000	enh2000	no
iec10	cmdrc2	cmdrc2	no
iec10	technica	technica	no
iec10	msdsd1	msdsd1	no
iec10	vic1520	vic1520	no
iec10	vic1515	vic1515	no
iec10	diag264	diag264_serial_loopback	no
iec10	serialbox	cbm_serbox	no
iec10	interpod	cbm_interpod	no
iec10	cmdhd	cmdhd	no
iec10	c5181	xetec_c5181	no
iec10	nl10	c64_nl10	no
iec10	c1570	c1570	no
iec10	indusgt	indusgt	no
iec10	c1541ii	c1541ii	no
iec10	csd1	csd1	no
iec10	c1581	c1581	no
iec10	mps1250	mps1250	no
iec10	c1526	c1526	no
iec10	minichief	minichif	no
iec10	c1571	c1571	no
iec10	fsd1	fsd1	no
iec10	msdsd2	msdsd2	no
iec10	bluechip	bluechip	no
iec10	c1541pdc	c1541pdc	no
iec10	c1541pd	c1541pd	no
iec10	c1541	c1541	no
iec10	fd2000	fd2000	no
iec10	c1541dd	c1541dd	no
iec10	fd4000	fd4000	no
iec10	c1541c	c1541c	no
iec10	fsd2	fsd2	no
iec10	c1540	c1540	no
iec11	mps1200	mps1200	no
iec11	fd148	fd148	no
iec11	enh2000	enh2000	no
iec11	cmdrc2	cmdrc2	no
iec11	technica	technica	no
iec11	msdsd1	msdsd1	no
iec11	vic1520	vic1520	no
iec11	vic1515	vic1515	no
iec11	diag264	diag264_serial_loopback	no
iec11	serialbox	cbm_serbox	no
iec11	interpod	cbm_interpod	no
iec11	cmdhd	cmdhd	no
iec11	c5181	xetec_c5181	no
iec11	nl10	c64_nl10	no
iec11	c1570	c1570	no
iec11	indusgt	indusgt	no
iec11	c1541ii	c1541ii	no
iec11	csd1	csd1	no
iec11	c1581	c1581	no
iec11	mps1250	mps1250	no
iec11	c1526	c1526	no
iec11	minichief	minichif	no
iec11	c1571	c1571	no
iec11	fsd1	fsd1	no
iec11	msdsd2	msdsd2	no
iec11	bluechip	bluechip	no
iec11	c1541pdc	c1541pdc	no
iec11	c1541pd	c1541pd	no
iec11	c1541	c1541	no
iec11	fd2000	fd2000	no
iec11	c1541dd	c1541dd	no
iec11	fd4000	fd4000	no
iec11	c1541c	c1541c	no
iec11	fsd2	fsd2	no
iec11	c1540	c1540	no
joy1	trakball	atari_trakball	no
joy1	keypad	vcs_keypad	no
joy1	cx85	atari_cx85	no
joy1	wheel	vcs_wheel	no
joy1	mouse	vcs_mouse	no
joy1	joybstr	vcs_joystick_booster	no
joy1	lp	vcs_lightpen	no
joy1	pad	vcs_paddles	no
joy1	joy	vcs_joystick	no
joy2	trakball	atari_trakball	no
joy2	keypad	vcs_keypad	no
joy2	cx85	atari_cx85	no
joy2	wheel	vcs_wheel	no
joy2	mouse	vcs_mouse	no
joy2	joybstr	vcs_joystick_booster	no
joy2	lp	vcs_lightpen	no
joy2	pad	vcs_paddles	no
joy2	joy	vcs_joystick	yes
exp	sid	plus4_sid	no
exp	c1551	c1551	no

configuration

Swap joystick ports

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Swap joystick ports	JOYSWAP	1

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Joystick in swapped port	1	no
Joystick in assigned port	0	yes

dipswitch

Device Address

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Device Address	iec8:c1541:ADDRESS	3

value

name	value	default
8	0	yes
9	1	no
10	2	no
11	3	no
