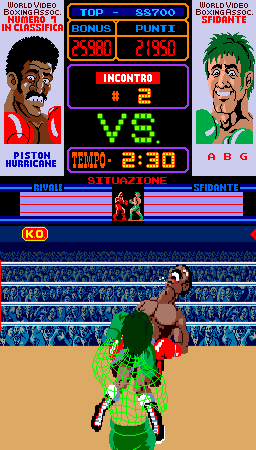

Punch-Out!! (Italian bootleg) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Machines: 48893 - rom: 364836 - disk: 1378

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
punchita	nintendo/punchout.cpp		no	no	no	yes	Punch-Out!! (Italian bootleg)	1984	bootleg	punchout	punchout

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
top	raster	0	256	224	60.000000								no
bottom	raster	0	256	224	60.000000								no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge
chp1-c.8l	8192	1d595ce2	affd43bef96c68f953e66cfa14ad4e9c304dc022	maincpu	0	good	no
chp1-c.8k	8192	c062fa5c	8ebd6fd76f1fd1b85216a4e21d8a13be8317b9e2	maincpu	2000	good	no
chp1-c.8j	8192	48d453ef	145f3ace8bec87e83b64c6472e2b71f1ebea13ea	maincpu	4000	good	no
chp1-c.8h	8192	67f5aedc	c63a8b0696eec87bb147d435c18ee7e26d19e2a4	maincpu	6000	good	no
chp1-c.8f	16384	761de4f3	66754bc762c14fea620fabf408f85e6e3acb89ad	maincpu	8000	good	no
chp1-c.4k	8192	cb6ef376	503dbcc1b18a497311bf129689d5650860bf96c7	audiocpu	e000	good	no	chp1-c.4k
chp1-b.4c	8192	9a9ff1d3	d91adf69acb717f238cd5954909701a8748f2185	gfx1	0	good	no
chp1-b.4d	8192	4c23350f	70a76002db9209699cdf1f092b2b5ef32d0b7b75	gfx1	2000	good	no
chp1-b.4a	8192	c075f831	f22d9e415637599420c443ce08e7e70d1eb1c6f5	gfx2	0	good	no	chp1-b.4a
chp1-b.4b	8192	c4cc2b5a	7b9d4dcecc67271980c3c44561fc25a6f6c93ee3	gfx2	2000	good	no	chp1-b.4b
chp1-v.2r	16384	bd1d4b2e	492ae301a9890c2603d564c9048b1b67895052dd	gfx3	0	good	no	chp1-v.2r
chp1-v.2t	16384	dd9a688a	fbb98eebfbaab445928da939846a2d07a8046afb	gfx3	4000	good	no	chp1-v.2t
chp1-v.2u	8192	da6a3c4b	e03469fb6f552f41a9b7f4b3e51c15a52b61cf84	gfx3	8000	good	no	chp1-v.2u
chp1-v.2v	8192	8c734a67	d59b5a2517e4890e7ca7da52ca2813a6abc484a3	gfx3	c000	good	no	chp1-v.2v
chp1-v.3r	16384	2e74ad1d	538b3f9273699106a50887c927f0251537bf0f42	gfx3	10000	good	no	chp1-v.3r
chp1-v.3t	16384	630ba9fb	36cec8658597239385cada3bc947b940ab66954b	gfx3	14000	good	no	chp1-v.3t
chp1-v.3u	8192	6440321d	c8c084ad408cb6bf65959ed4db03c4b4cf9b1c1a	gfx3	18000	good	no	chp1-v.3u
chp1-v.3v	8192	bb7b7198	64572668d30e008daf4ccaa5689518ecc41f1091	gfx3	1c000	good	no	chp1-v.3v
chp1-v.4r	16384	4e5b0fe9	c5c4fb735cc232b43c49442e62af0ebe99eaab0c	gfx3	20000	good	no	chp1-v.4r
chp1-v.4t	16384	37ffc940	d555807a6a1025c81637c5db0184b48306aa01ac	gfx3	24000	good	no	chp1-v.4t
chp1-v.4u	8192	1a7521d4	4e8a8298f2ff8257d2058e5133ad295f92c7deb8	gfx3	28000	good	no	chp1-v.4u
chp1-v.6p	8192	75be7aae	396bc1d301b99e064de4dad699882618b1b9c958	gfx4	0	good	no	chp1-v.6p
chp1-v.6n	8192	daf74de0	9373d4527b675b3128a5a830f42e1dc5dcb85307	gfx4	2000	good	no	chp1-v.6n
chp1-v.8p	8192	4cb7ea82	213b7c1431f4c92e5519a8771035bda28b3bab8a	gfx4	8000	good	no	chp1-v.8p
chp1-v.8n	8192	1c0d09aa	3276bae7400453f3612f53d7b47fb199cbe53e6d	gfx4	a000	good	no	chp1-v.8n
chp1-b-6e_pink.6e	512	e9ca3ac6	68d9739d8a0dadc6fe3b3767437526096ca5db98	proms	0	good	no	chp1-b-6e_pink.6e
chp1-b-6f_pink.6f	512	02be56ab	a88f332cb26928350ed20ab5f4c04d5324bb516a	proms	200	good	no	chp1-b-6f_pink.6f
chp1-b-7f_pink.7f	512	11de55f1	269b82f4bc73fac197e0bb6d9a90a220e77ce478	proms	400	good	no	chp1-b-7f_pink.7f
chp1-b-7e_pink.7e	512	fddaa777	ee6bff5ffeefc82374868a268f885d0bc3a76da2	proms	600	good	no	chp1-b-7e_pink.7e
chp1-b-8e_pink.8e	512	c3d5d71f	2b02479614a801f539fead17860b84e9a180e761	proms	800	good	no	chp1-b-8e_pink.8e
chp1-b-8f_pink.8f	512	a3037155	8b6c0c80278ca859a08a1a2429190d51be4f9401	proms	a00	good	no	chp1-b-8f_pink.8f
chp1-b-6e_white.6e	512	ddac5f0e	25dabe415757ccea057609a3f3f79a56b613032a	proms	1000	good	no	chp1-b-6e_white.6e
chp1-b-6f_white.6f	512	846c6261	f012a02bbdf0166b9bfd3dc9749db18759a22421	proms	1200	good	no	chp1-b-6f_white.6f
chp1-b-7f_white.7f	512	1682dd30	84b92d1b292210bda0c25537c8ee3e274aaac75c	proms	1400	good	no	chp1-b-7f_white.7f
chp1-b-7e_white.7e	512	47adf7a2	1d37d5207cd37a9c122251c60cc8f43dd680f484	proms	1600	good	no	chp1-b-7e_white.7e
chp1-b-8e_white.8e	512	b0fc15a8	a1af09cfea81231240bd94f3b98de1be8235ebe7	proms	1800	good	no	chp1-b-8e_white.8e
chp1-b-8f_white.8f	512	1ffd894a	9e8c1c28b4c12acf42f814bc109d353729a25652	proms	1a00	good	no	chp1-b-8f_white.8f
chp1-v-2d.2d	256	71dc0d48	dd6609f547d74887f520d7e71a1a00317ff181d0	proms	2000	good	no	chp1-v-2d.2d
chp1-c.6p	16384	ea0bbb31	b1da024cb688341d39791a78d1144fe09acb00cf	vlm	0	good	no	chp1-c.6p

chip

type	tag	name	clock
cpu	maincpu	Zilog Z80	4000000
cpu	audiocpu	Ricoh RP2A03	1789772
audio	audiocpu	Ricoh RP2A03	1789772
audio	audiocpu:nesapu	RP2A03 APU	1789772
audio	speaker	Speaker
audio	vlm	Sanyo VLM5030	3579545

device_ref

name
z80
rp2a03
apu2a03
nvram
ls259
gfxdecode
palette
screen
screen
speaker
generic_latch_8
generic_latch_8
vlm5030

sound

channels
1

input

players	coins	service	tilt
1	1	no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
joy		3	4	no

port, analog

port_tag	analog_masks
:DSW1
:DSW2
:IN0
:IN1

dipswitch

Coinage

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coinage	DSW1	15

location

name	number	inverted
SW1	1	yes
SW1	2	yes
SW1	3	yes
SW1	4	yes

value

name	value	default
5 Coins/1 Credit	14	no
4 Coins/1 Credit	11	no
3 Coins/1 Credit	12	no
2 Coins/1 Credit	1	no
1 Coin/1 Credit	0	yes
1 Coin/1 Credit	3	no
1 Coin/2 Credits (2 Credits/1 Play)	8	no
1 Coin/3 Credits (2 Credits/1 Play)	13	no
1 Coin/2 Credits	2	no
1 Coin/2 Credits	4	no
1 Coin/2 Credits	9	no
1 Coin/3 Credits	5	no
1 Coin/4 Credits	6	no
1 Coin/5 Credits	10	no
1 Coin/6 Credits	7	no
Free Play	15	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW1	64

location

name	number	inverted
R18	1	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	64	no

Copyright

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Copyright	DSW1	128

location

name	number	inverted
R19	1	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Nintendo	0	yes
Nintendo of America Inc.	128	no

Difficulty

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Difficulty	DSW2	3

location

name	number	inverted
SW2	1	yes
SW2	2	yes

value

name	value	default
Easy	0	yes
Medium	1	no
Hard	2	no
Hardest	3	no

Time

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Time	DSW2	12

location

name	number	inverted
SW2	3	yes
SW2	4	yes

value

name	value	default
Longest	0	yes
Long	4	no
Short	8	no
Shortest	12	no

Demo Sounds

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Demo Sounds	DSW2	16

location

name	number	inverted
SW2	5	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	16	yes

Rematch At A Discount

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Rematch At A Discount	DSW2	32

location

name	number	inverted
SW2	6	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	32	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW2	64

location

name	number	inverted
SW2	7	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	64	no

Service Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Service Mode	DSW2	128

location

name	number	inverted
SW2	8	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	128	no
