Black Magic 4 - mame (0286) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
r_blackm4	pinball/recel.cpp	genpin	no	no	yes	yes	Black Magic 4	1980	Recel		recel

snap

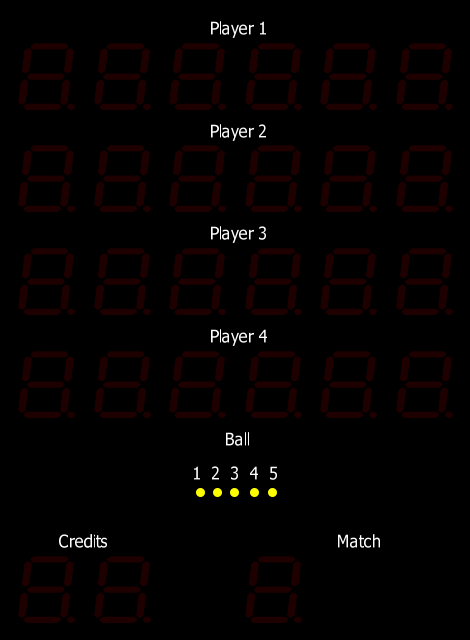

Black Magic 4 png snap

Black Magic 4 jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
r_blackm4	15178	29/12/2025 11:31:39	470	640	96	96	0	Format24bppRgb	305:MAME 0.236 (Sep 29 2021)	56106eb58a038952c6ffa7dbe00993c39a63b95b

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	supported	yes	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
a2361.b1	2048	d0c4695d	4846adb3f6c292626840ba5255ffc5e788a69301	maincpu	0	good	no	a2361.b1
a2362.b2	2048	39a70611	8545e168a5f256150bcff12d1e6d8efffd08c3cd	maincpu	400	good	no	a2362.b2
b4.c5	2048	cd383f5b	c38acaae46e5fd2660efbd0e2d35e295892e60a5	module	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Rockwell PPS-4/2	3579545
audio	mechvol	Speaker
audio	samples	Samples

device_ref

tag	name
:maincpu	pps4_2
:nvram	nvram
:b2	ra17xx
:b1	ra17xx
:b3	r10696
:b5	r10788
:mechvol	speaker
:samples	samples

sample

name
bumper
chime1
chime2
chime3
chime4
hole
knocker
sling
coinin
outhole
kickback
drop_target_reset
coil_coinlockout_engage
coil_coinlockout_release
relay_engage
relay_release
solenoid_engage
solenoid_release

sound

channels
1

feature

type	status	overall
sound	unemulated

input

players	coins	service	tilt
1	2	no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
keypad		40		no

port, analog

port_tag	analog_masks
:X0
:X1
:X2
:X3
:X4
:X5
