Radionic R1001/Komtek 1 - mame (0287) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
radionic	trs/radionic.cpp		no	no	no	yes	Radionic R1001/Komtek 1	1983	Komtek

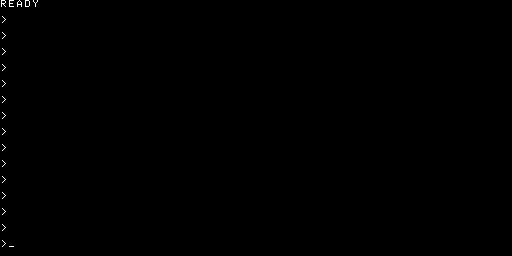

snap

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
radionic	877	29/12/2025 11:31:39	512	256	96	96	0	Format24bppRgb	305:MAME 0.176 (Jul 27 2016)	629682d16a2a764f71985d64abfb0fdf286aa9cf

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	512	256	50.767895	12164800	768	0	512	312	0	256	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional
ep1.z37	4096	e8908f44	7a5a60c3afbeb6b8434737dd302332179a7fca59	maincpu	0	good	no
ep2.z36	4096	46e88fbf	a3ca32757f269e09316e1e91ba1502774e2f5155	maincpu	1000	good	no
ep3.z35	4096	306e5d66	1e1abcfb5b02d4567cf6a81ffc35318723442369	maincpu	2000	good	no
ep4.z34	4096	70f90f26	cbee70da04a3efac08e50b8e3a270262c2440120	maincpu	3000	good	no
trschar.z58	4096	02e767b6	c431fcc6bd04ce2800ca8c36f6f8aeb2f91ce9f7	chargen	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Zilog Z80	1789772
audio	mono	Speaker
audio	speaker	Filtered DAC
audio	cassette	Cassette
audio	floppy0:80t_qd:flopsndout	Speaker
audio	floppy0:80t_qd:floppysound	Floppy sound	44100
audio	floppy1:80t_qd:flopsndout	Speaker
audio	floppy1:80t_qd:floppysound	Floppy sound	44100

softwarelist

tag	name	status	filter
cass_list	trs80_cass	original	1
quik_list	trs80_quik	original	1
flop_list	trs80_flop	original	1

device_ref

tag	name
:maincpu	z80
:screen	screen
:gfxdecode	gfxdecode
:palette	palette
:mono	speaker
:speaker	speaker_sound_device
:cassette	cassette_image
:quickload	trs80_quickload
:fdc	fd1771
:floppy0	floppy_connector
:floppy0:80t_qd	floppy_525_qd
:floppy0:80t_qd:flopsndout	speaker
:floppy0:80t_qd:floppysound	flopsnd
:floppy1	floppy_connector
:floppy1:80t_qd	floppy_525_qd
:floppy1:80t_qd:flopsndout	speaker
:floppy1:80t_qd:floppysound	flopsnd
:floppy2	floppy_connector
:floppy3	floppy_connector
:centronics	centronics
:centronics:printer	centronics_printer
:centronics:printer:printer	printer_image
:cent_status_in	input_buffer
:cent_data_out	output_latch
:uclock	clock
:uart2	i8251
:rs232	rs232
:ppi	i8255
:cass_list	software_list
:quik_list	software_list
:flop_list	software_list

sound

channels
3

device, instance

type	tag	interface	name	briefname
cassette	cassette	trs80_cass	cassette	cass
quickload	quickload	trs80_quik	quickload	quik
floppydisk	floppy0:80t_qd	floppy_5_25	floppydisk1	flop1
floppydisk	floppy1:80t_qd	floppy_5_25	floppydisk2	flop2
printout	centronics:printer:printer		printout	prin

device, extension

type	tag	interface	extension_names
cassette	cassette	trs80_cass	wav, flac, aif, aiff, cas
quickload	quickload	trs80_quik	cmd
floppydisk	floppy0:80t_qd	floppy_5_25	mfi, dfi, jv1, dsk
floppydisk	floppy1:80t_qd	floppy_5_25	mfi, dfi, jv1, dsk
printout	centronics:printer:printer		prn

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
keyboard		57		no

port, analog

port_tag	analog_masks
:CONFIG
:LINE0
:LINE1
:LINE2
:LINE3
:LINE4
:LINE5
:LINE6
:LINE7

slot, slotoption

slot_name	slotoption_name	slotoption_devname	slotoption_default
floppy0	80t_qd	floppy_525_qd	yes
floppy0	40t_dd	floppy_525_dd	no
floppy0	40t_sd	floppy_525_sssd	no
floppy0	35t_sd	floppy_525_sssd_35t	no
floppy1	80t_qd	floppy_525_qd	yes
floppy1	40t_dd	floppy_525_dd	no
floppy1	40t_sd	floppy_525_sssd	no
floppy1	35t_sd	floppy_525_sssd_35t	no
floppy2	80t_qd	floppy_525_qd	no
floppy2	40t_dd	floppy_525_dd	no
floppy2	40t_sd	floppy_525_sssd	no
floppy2	35t_sd	floppy_525_sssd_35t	no
floppy3	80t_qd	floppy_525_qd	no
floppy3	40t_dd	floppy_525_dd	no
floppy3	40t_sd	floppy_525_sssd	no
floppy3	35t_sd	floppy_525_sssd_35t	no
centronics	neomania	neomania_adapter	no
centronics	nlq401	nlq401	no
centronics	smartboard	centronics_smartboard	no
centronics	chessmec	centronics_chessmec	no
centronics	samdac	centronics_samdac	no
centronics	covox_stereo	covox_stereo	no
centronics	adaptator	adaptator_multitap	no
centronics	digiblst	cpcdigiblst	no
centronics	lx800	lx800	no
centronics	jx80	epson_jx80	no
centronics	ap2000	ap2000	no
centronics	ex800	ex800	no
centronics	fx80	epson_fx80	no
centronics	rx80	epson_rx80	no
centronics	mz1p16	mz1p16	no
centronics	covox	covox	no
centronics	pl80	comx_pl80	no
centronics	lx810l	lx810l	no
centronics	p72	p72	no
centronics	printer	centronics_printer	yes
rs232	terminal	serial_terminal	no
rs232	sunkbd	sunkbd_adaptor	no
rs232	votraxtnt	serial_votraxtnt	no
rs232	rs_printer	rs_serial_printer	no
rs232	dec_loopback	dec_rs232_loopback	no
rs232	h19	serial_heath_h19	no
rs232	ie15	ie15_terminal	no
rs232	null_modem	null_modem	no
rs232	keyboard	serial_keyboard	no
rs232	patch	rs232_patch_box	no
rs232	swtpc8212	swtpc8212_terminal	no
rs232	printer	serial_printer	no
rs232	scorpion	scorpion_ic	no
rs232	loopback	rs232_loopback	no
rs232	mockingboard	mockingboardd	no
rs232	msystems_mouse	rs232_mouse_hle_msystems	no
rs232	nss_tvi	nss_tvinterface	no
rs232	rs232_sync_io	rs232_sync_io	no
rs232	pty	pseudo_terminal	no

configuration

Serial Port

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Serial Port	CONFIG	7

setting

name	value	default
300 baud	0	yes
600 baud	1	no
1200 baud	2	no
2400 baud	3	no
4800 baud	4	no

Colour

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Colour	CONFIG	48

setting

name	value	default
Monochrome	0	yes
Auto Colour	16	no
Programmable Colour	48	no

Floppy and RTC

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Floppy and RTC	CONFIG	192

setting

name	value	default
Both Off	0	yes
RTC off, Floppy On	128	no
RTC on, Floppy Off	64	no
