RC3230 - mame (0287) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
rc3230	mips/mips_r3030.cpp		no	no	no	yes	RC3230	1990	MIPS

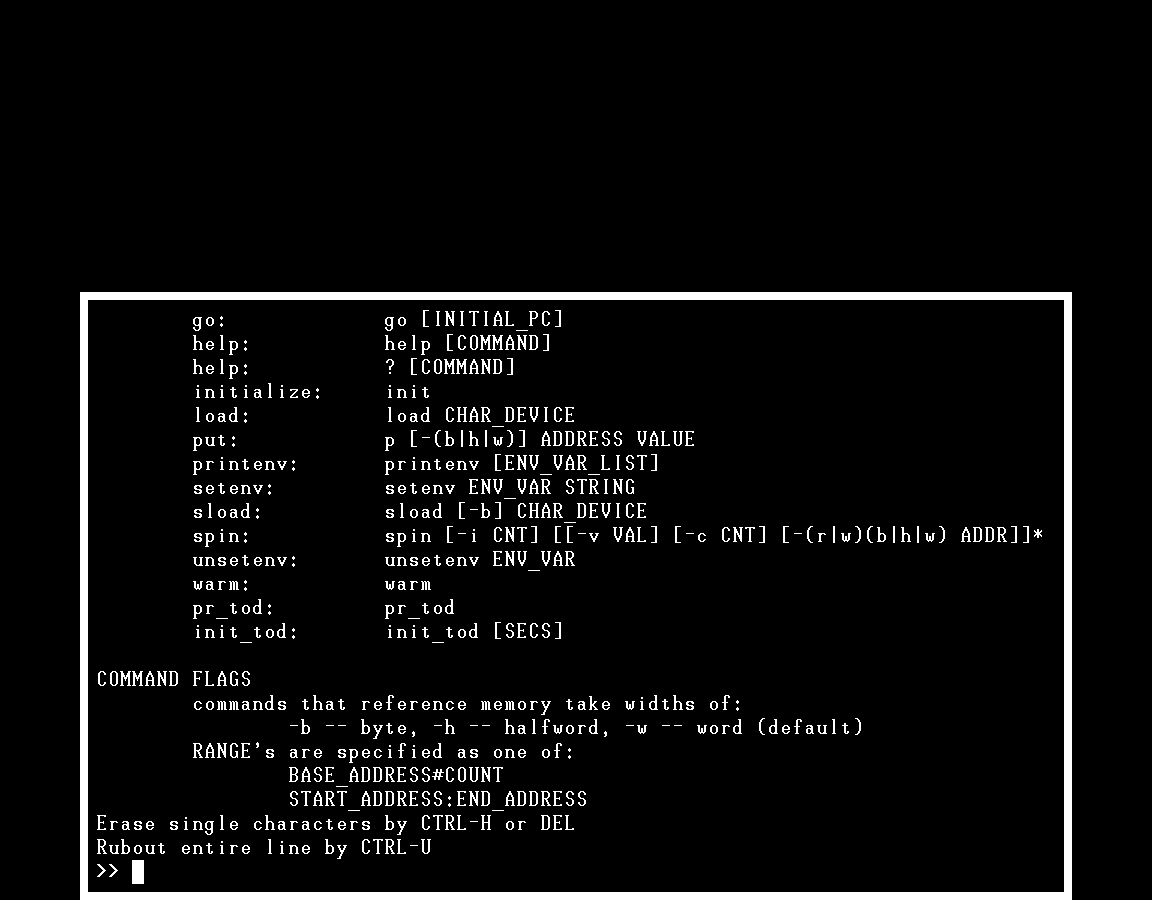

snap

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
rc3230	19640	29/12/2025 11:31:39	1152	900	96	96	0	Format24bppRgb	305:MAME 0.212 (Jul 31 2019)	2253b13ac9ee655164b2daf874ad5776ce77cc00

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	1152	900	72.000000	74649600	1152	0	1152	900	0	900	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	bios
50-314-003__3230_left.bin	131072	77ce42c9	b2d5e5a386ed0ff840646647ba90b3c36732a7fe	r3030	2	good	no	v5.40
50-314-003__3230_right.bin	131072	5bc1ce2f	38661234bf40b76395393459de49e48619b2b454	r3030	0	good	no	v5.40
unknown.bin	131072			r3030	2	nodump	no	v5.42
unknown.bin	131072			r3030	0	nodump	no	v5.42

chip

type	tag	name	clock
cpu	cpu	MIPS R3000A	25000000
cpu	kbd:ms_naturl:ms_natrl_cpu	Intel 8051	6000000
cpu	kbdc:mcu	Intel 8042AH	12000000
audio	fdc:0:35hd:flopsndout	Speaker
audio	fdc:0:35hd:floppysound	Floppy sound	44100
audio	mono	Speaker
audio	buzzer	Filtered DAC

device_ref

tag	name
:cpu	r3000a
:ram	ram
:rambo	mips_rambo
:scsi	nscsi_bus
:scsi:0	nscsi_connector
:scsi:0:harddisk	scsi_harddisk
:scsi:0:harddisk:image	harddisk_image
:scsi:1	nscsi_connector
:scsi:2	nscsi_connector
:scsi:3	nscsi_connector
:scsi:4	nscsi_connector
:scsi:5	nscsi_connector
:scsi:6	nscsi_connector
:ncr53c94	ncr53c94
:net	am7990
:scc	scc85c30
:scc:cha	z80scc_channel
:scc:chb	z80scc_channel
:tty0	rs232
:tty1	rs232
:rtc	m48t02
:fdc	i82072
:fdc:0	floppy_connector
:fdc:0:35hd	floppy_35_hd
:fdc:0:35hd:flopsndout	speaker
:fdc:0:35hd:floppysound	flopsnd
:kbd	pc_kbdc
:kbd:ms_naturl	kb_ms_natural
:kbd:ms_naturl:ms_natrl_cpu	i8051
:kbdc	at_keybc
:kbdc:mcu	i8042ah
:mono	speaker
:buzzer	speaker_sound_device
:screen	screen

biosset

name	description	default
v5.40	R3030 v5.40, Jun 1990	no
v5.42	R3030 v5.42, Mar 1991	no

sound

channels
2

feature

type	status	overall
sound	unemulated

ramoption

name	default
16M
64M
128M
32M	yes

device, instance

type	tag	interface	fixed_image	mandatory	name	briefname
harddisk	scsi:0:harddisk:image	scsi_hdd,hdd			harddisk	hard
floppydisk	fdc:0:35hd	floppy_3_5			floppydisk	flop

device, extension

type	tag	interface	fixed_image	mandatory	extension_names
harddisk	scsi:0:harddisk:image	scsi_hdd,hdd			chd, hd, hdv, 2mg, hdi
floppydisk	fdc:0:35hd	floppy_3_5			mfi, dfi, mfm, td0, imd, 86f, d77, d88, 1dd, cqm, cqi, dsk, ima, img, ufi, 360, ipf

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
keyboard		108		no

port, analog

port_tag	analog_masks
:kbd:ms_naturl:P1.0
:kbd:ms_naturl:P1.1
:kbd:ms_naturl:P1.2
:kbd:ms_naturl:P1.3
:kbd:ms_naturl:P1.4
:kbd:ms_naturl:P1.5
:kbd:ms_naturl:P1.6
:kbd:ms_naturl:P1.7
:kbd:ms_naturl:P2.0
:kbd:ms_naturl:P2.1
:kbd:ms_naturl:P2.2
:kbd:ms_naturl:P2.3
:kbd:ms_naturl:P2.4
:kbd:ms_naturl:P2.5
:kbd:ms_naturl:P2.6
:kbd:ms_naturl:P2.7
:kbdc:P1

slot, slotoption

slot_name	slotoption_name	slotoption_devname	slotoption_default
scsi:0	tape	scsi_tape	no
scsi:0	cdrom	scsi_cdrom	no
scsi:0	harddisk	scsi_harddisk	yes
scsi:1	tape	scsi_tape	no
scsi:1	cdrom	scsi_cdrom	no
scsi:1	harddisk	scsi_harddisk	no
scsi:2	tape	scsi_tape	no
scsi:2	cdrom	scsi_cdrom	no
scsi:2	harddisk	scsi_harddisk	no
scsi:3	tape	scsi_tape	no
scsi:3	cdrom	scsi_cdrom	no
scsi:3	harddisk	scsi_harddisk	no
scsi:4	tape	scsi_tape	no
scsi:4	cdrom	scsi_cdrom	no
scsi:4	harddisk	scsi_harddisk	no
scsi:5	tape	scsi_tape	no
scsi:5	cdrom	scsi_cdrom	no
scsi:5	harddisk	scsi_harddisk	no
scsi:6	tape	scsi_tape	no
scsi:6	cdrom	scsi_cdrom	no
scsi:6	harddisk	scsi_harddisk	no
tty0	terminal	serial_terminal	no
tty0	sunkbd	sunkbd_adaptor	no
tty0	votraxtnt	serial_votraxtnt	no
tty0	rs_printer	rs_serial_printer	no
tty0	dec_loopback	dec_rs232_loopback	no
tty0	h19	serial_heath_h19	no
tty0	ie15	ie15_terminal	no
tty0	null_modem	null_modem	no
tty0	keyboard	serial_keyboard	no
tty0	patch	rs232_patch_box	no
tty0	swtpc8212	swtpc8212_terminal	no
tty0	printer	serial_printer	no
tty0	scorpion	scorpion_ic	no
tty0	loopback	rs232_loopback	no
tty0	mockingboard	mockingboardd	no
tty0	msystems_mouse	rs232_mouse_hle_msystems	no
tty0	nss_tvi	nss_tvinterface	no
tty0	rs232_sync_io	rs232_sync_io	no
tty0	pty	pseudo_terminal	no
tty1	terminal	serial_terminal	no
tty1	sunkbd	sunkbd_adaptor	no
tty1	votraxtnt	serial_votraxtnt	no
tty1	rs_printer	rs_serial_printer	no
tty1	dec_loopback	dec_rs232_loopback	no
tty1	h19	serial_heath_h19	no
tty1	ie15	ie15_terminal	no
tty1	null_modem	null_modem	no
tty1	keyboard	serial_keyboard	no
tty1	patch	rs232_patch_box	no
tty1	swtpc8212	swtpc8212_terminal	no
tty1	printer	serial_printer	no
tty1	scorpion	scorpion_ic	no
tty1	loopback	rs232_loopback	no
tty1	mockingboard	mockingboardd	no
tty1	msystems_mouse	rs232_mouse_hle_msystems	no
tty1	nss_tvi	nss_tvinterface	no
tty1	rs232_sync_io	rs232_sync_io	no
tty1	pty	pseudo_terminal	no
fdc:0	35hd	floppy_35_hd	yes
kbd	g80_1500	g80_1500	no
kbd	pcat101	kb_pcat101	no
kbd	pcat	kb_pcat84	no
kbd	ms_naturl	kb_ms_natural	yes
kbd	3270pc	kb_3270pc	no
kbd	keytronc_pc3270	keytronic_pc3270_at	no

configuration

CRT Adapter Switch

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
CRT Adapter Switch	kbdc:P1	64

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Monochrome Display Adapter	64	no
Color Graphics Adapter	0	yes

Key Lock

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Key Lock	kbdc:P1	128

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	yes
On	0	no
