RZ-1 - mame (0286) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
rz1	casio/rz1.cpp		no	no	no	yes	RZ-1	1986	Casio

snap

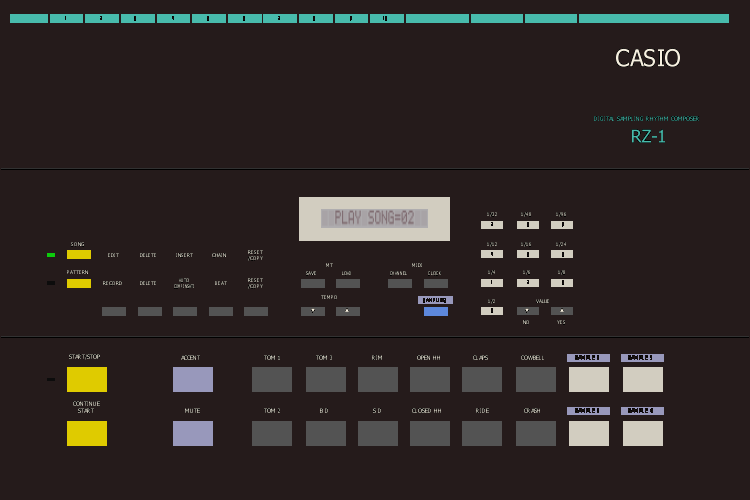

RZ-1 png snap

RZ-1 jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
rz1	16256	29/12/2025 11:31:40	750	500	96	96	0	Format24bppRgb	305:MAME 0.196 (Mar 27 2018)	25934ff9344c455e33599c4d6f2c68f4e1c2c73f

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	lcd	0	97	10	50.000000								no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
imperfect	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
upd7811g-120.bin	4096	597ac04a	96451a764296eaa22aaad3cba121226dcba865f4	maincpu	0	good	no
program.bin	16384	b44b2652	b77f8daece9adb177b6ce1ef518fc3238b8c0a9c	program	0	good	no
sound_b.cm6	32768	ee5b703e	cbf2e92c68901f236678d704e9e695a5c84ff49e	pg0	0	good	no
sound_a.cm5	32768	c643ff24	e886314d22a9a5473bfa2cb237ecafcf0daedfc1	pg1	0	good	no

chip

type	tag	name	clock
cpu	maincpu	NEC uPD7811	12000000
audio	tom1	Speaker
audio	tom2	Speaker
audio	tom3	Speaker
audio	bd	Speaker
audio	rim_and_sd	Speaker
audio	hihat	Speaker
audio	claps_and_ride	Speaker
audio	cowbell_and_crash	Speaker
audio	sample_1_and_2	Speaker
audio	sample_3_and_4	Speaker
audio	speaker	Speaker
audio	pg0	NEC uPD934G	1333000
audio	pg1	NEC uPD934G	1280000
audio	cassette	Cassette
audio	linein	Cassette

softwarelist

tag	name	status	filter
cass_list	rz1_cass	original

device_ref

tag	name
:maincpu	upd7811
:dataram	nvram
:sample1	nvram
:sample2	nvram
:screen	screen
:palette	palette
:hd44780	hd44780
:tom1	speaker
:tom2	speaker
:tom3	speaker
:bd	speaker
:rim_and_sd	speaker
:hihat	speaker
:claps_and_ride	speaker
:cowbell_and_crash	speaker
:sample_1_and_2	speaker
:sample_3_and_4	speaker
:speaker	speaker
:pg0	upd934g
:pg1	upd934g
:mdin	midi_port
:mdin:midiin	midiin_port
:mdin:midiin:midiinimg	midiin
:mdout	midi_port
:mdout:midiout	midiout_port
:mdout:midiout:midioutimg	midiout
:mdthru	midi_port
:mdthru:midiout	midiout_port
:mdthru:midiout:midioutimg	midiout
:cassette	cassette_image
:linein	cassette_image
:cass_list	software_list

sound

channels
11

feature

type	status	overall
sound		imperfect

device, instance

type	tag	interface	fixed_image	mandatory	name	briefname
midiin	mdin:midiin:midiinimg				midiin	min
midiout	mdout:midiout:midioutimg				midiout1	mout1
midiout	mdthru:midiout:midioutimg				midiout2	mout2
cassette	cassette	rz1_cass			cassette1	cass1
cassette	linein	audio_cass			cassette2	cass2

device, extension

type	tag	interface	fixed_image	mandatory	extension_names
midiin	mdin:midiin:midiinimg				mid, syx
midiout	mdout:midiout:midioutimg				mid
midiout	mdthru:midiout:midioutimg				mid
cassette	cassette	rz1_cass			wav, flac, cas
cassette	linein	audio_cass			wav, flac

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
keyboard		47		no

port, analog

port_tag	analog_masks
:foot
:kc0
:kc1
:kc2
:kc3
:kc4
:kc5
:kc6
:kc7
:mdin:midiin:midiinimg:CFG

slot, slotoption

slot_name	slotoption_name	slotoption_devname	slotoption_default
mdin	midiin	midiin_port	yes
mdout	midiout	midiout_port	yes
mdthru	midiout	midiout_port	yes

configuration

MIDI file mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
MIDI file mode	mdin:midiin:midiinimg:CFG	255

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Multi	255	yes
Poly: Channel 1	0	no
Poly: Channel 2	1	no
Poly: Channel 3	2	no
Poly: Channel 4	3	no
Poly: Channel 5	4	no
Poly: Channel 6	5	no
Poly: Channel 7	6	no
Poly: Channel 8	7	no
Poly: Channel 9	8	no
Poly: Channel 10	9	no
Poly: Channel 11	10	no
Poly: Channel 12	11	no
Poly: Channel 13	12	no
Poly: Channel 14	13	no
Poly: Channel 15	14	no
Poly: Channel 16	15	no
