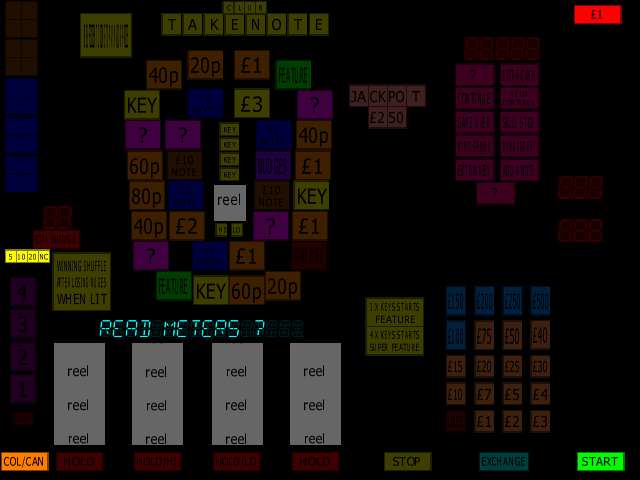

Take Note Club (Bellfruit) (Scorpion 4) (set 6) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Machines: 48893 - rom: 364836 - disk: 1378

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
sc4takclh	bfm/bfm_sc4.cpp		no	no	no	yes	Take Note Club (Bellfruit) (Scorpion 4) (set 6)	200?	BFM	sc4takcl	sc4takcl

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
95413196.lo	524288	44d33d52	468d2e34c636233b80ded6fad1d0c21ddd0326a0	maincpu	1	good	no
95413197.hi	524288	336ba68e	961690dbe9321ab6ac3f4d7445e09d84acbfe3b4	maincpu	0	good	no
95008314.bin	1048576	64d2a26a	f01944363e77bf33b44a06224e44828b065fdee4	ymz	0	good	no	95008314.bin

chip

type	tag	name	clock
cpu	maincpu	MC68307	16000000
audio	mono	Speaker
audio	ymz	Yamaha YMZ280B PCMD8	16000000

device_ref

name
mc68307
mc68681
duart_channel
duart_channel
speaker
nvram
mc68681
duart_channel
duart_channel
bfm_bda
ymz280b
sec
stepper
stepper
stepper
stepper
stepper

sound

channels
1

input

players	coins	service	tilt
1	6	no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
mahjong		30		no
hanafuda		6		no

port, analog

port_tag	analog_masks
:IN-0
:IN-1
:IN-10
:IN-11
:IN-16
:IN-17
:IN-18
:IN-19
:IN-2
:IN-20
:IN-3
:IN-4
:IN-5
:IN-6
:IN-7
:IN-8
:IN-9
:IN-COIN
