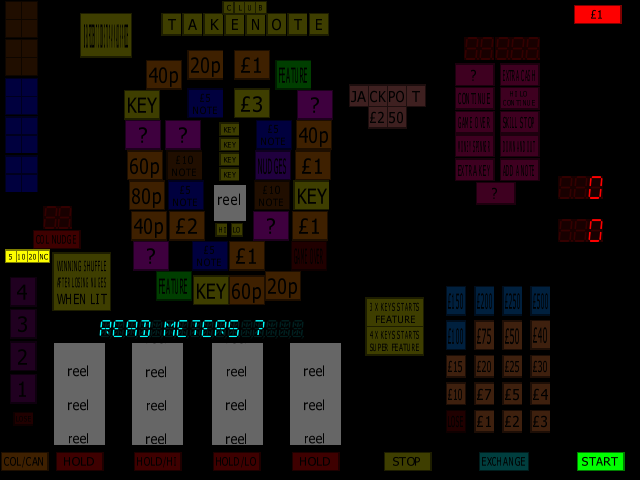

Take Note Club (Bellfruit) (Scorpion 4) (set 4) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Machines: 48893 - rom: 364836 - disk: 1378

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
sc4takclj	bfm/bfm_sc4.cpp		no	no	no	yes	Take Note Club (Bellfruit) (Scorpion 4) (set 4)	200?	BFM	sc4takcl	sc4takcl

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
p1323s11.hi	524288	c1d0ae13	64427a39b674b48889f7db18213cb8736056e579	maincpu	0	good	no
p1323s11.lo	524288	8a5a3f35	4fd85f1be400e401b48f8a0ad621f1d6f314ce8b	maincpu	1	good	no
95008314.bin	1048576	64d2a26a	f01944363e77bf33b44a06224e44828b065fdee4	ymz	0	good	no	95008314.bin

chip

type	tag	name	clock
cpu	maincpu	MC68307	16000000
audio	mono	Speaker
audio	ymz	Yamaha YMZ280B PCMD8	16000000

device_ref

name
mc68307
mc68681
duart_channel
duart_channel
speaker
nvram
mc68681
duart_channel
duart_channel
bfm_bda
ymz280b
sec
stepper
stepper
stepper
stepper
stepper

sound

channels
1

input

players	coins	service	tilt
1	6	no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
mahjong		30		no
hanafuda		6		no

port, analog

port_tag	analog_masks
:IN-0
:IN-1
:IN-10
:IN-11
:IN-16
:IN-17
:IN-18
:IN-19
:IN-2
:IN-20
:IN-3
:IN-4
:IN-5
:IN-6
:IN-7
:IN-8
:IN-9
:IN-COIN

dipswitch

IN 0-0 (STRB 0 Data 0)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
IN 0-0 (STRB 0 Data 0)	IN-0	1
