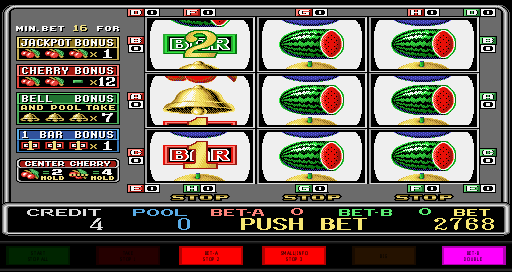

Super Cherry Master (v1.0) - mame (0277) machine

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	romof	cloneof
scmaster	igs/goldstar.cpp		no	no	no	yes	Super Cherry Master (v1.0)	1994	bootleg

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	512	240	60.000000	7864320	512	0	512	256	8	248	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
27c512.u6	65536	4eef290a	27cca383de49d5f0072ecdda11591b78727469c6	maincpu	0	good	no
27c010.u29	131072	98bd34b6	e3ff6536eb421ed2e2f5d4354099078ba4ae5671	gfx1	0	good	no
27c020.u41	262144	ece34be2	fdfaaffb12a7f6de6bf21b46ad50e845abc00734	gfx2	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Zilog Z80	3000000
audio	mono	Speaker
audio	aysnd	AY-3-8910A PSG	1500000

device_ref

name
z80
nvram
screen
gfxdecode
palette
speaker
ay8910
ticket_dispenser

sound

channels
1

input

players	coins	service	tilt
1	3	no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
gambling		9		no

port, analog

port_tag	analog_masks
:DSW1
:DSW2
:DSW3
:DSW4
:IN0
:IN1

dipswitch

Game Level

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Game Level	DSW1	3

location

name	number	inverted
DSW1	1	no
DSW1	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Easy	3	yes
Mid 1	2	no
Mid 2	1	no
Hard	0	no

Punti

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Punti	DSW1	4

location

name	number	inverted
DSW1	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Ticket	4	yes
Gettoni	0	no

Ticket Dispenser

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Ticket Dispenser	DSW1	8

location

name	number	inverted
DSW1	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	no
Yes	8	yes

Reel Speed

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Reel Speed	DSW1	16

location

name	number	inverted
DSW1	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Low	16	yes
High	0	no

Super Jackpot

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Super Jackpot	DSW1	96

location

name	number	inverted
DSW1	6	no
DSW1	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	96	yes
5%	32	no
10%	0	no
20%	64	no

Bet Step On 8

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Bet Step On 8	DSW1	128

location

name	number	inverted
DSW1	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	128	yes
Yes	0	no

Main/Bonus Game Rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Main/Bonus Game Rate	DSW2	15

location

name	number	inverted
DSW2	1	no
DSW2	2	no
DSW2	3	no
DSW2	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
50% / 55%	0	no
53% / 58%	1	no
56% / 61%	2	no
59% / 64%	3	no
62% / 67%	4	no
65% / 70%	5	no
68% / 73%	6	no
71% / 76%	7	no
74% / 79%	8	no
77% / 82%	9	no
80% / 85%	10	no
83% / 88%	15	yes

Max Bet

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Max Bet	DSW2	48

location

name	number	inverted
DSW2	5	no
DSW2	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
8	0	no
16	16	no
32	32	no
64	48	yes

Min. Bet For Bonus Play

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Min. Bet For Bonus Play	DSW2	64

location

name	number	inverted
DSW2	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
8	0	no
16	64	yes

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW2	128

location

name	number	inverted
DSW2	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	yes
On	0	no

Coin A Rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin A Rate	DSW3	7

location

name	number	inverted
DSW3	1	no
DSW3	2	no
DSW3	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1 Coin/1 Credit	0	yes
1 Coin/2 Credits	1	no
1 Coin/4 Credits	2	no
1 Coin/5 Credits	3	no
1 Coin/8 Credits	4	no
1 Coin/10 Credits	5	no
1 Coin/20 Credits	6	no
1 Coin/50 Credits	7	no

Key In Rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Key In Rate	DSW3	24

location

name	number	inverted
DSW3	4	no
DSW3	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
5x Coin A	0	yes
10x Coin A	8	no
20x Coin A	16	no
50x Coin A	24	no

Coin C Rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin C Rate	DSW3	32

location

name	number	inverted
DSW3	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1 Coin/5 Credits	0	yes	DSW3	7	eq	0
1 Coin/10 Credits	32	no	DSW3	7	eq	0
1 Coin/10 Credits	0	yes	DSW3	7	eq	1
1 Coin/20 Credits	32	no	DSW3	7	eq	1
1 Coin/20 Credits	0	yes	DSW3	7	eq	2
1 Coin/40 Credits	32	no	DSW3	7	eq	2
1 Coin/25 Credits	0	yes	DSW3	7	eq	3
1 Coin/50 Credits	32	no	DSW3	7	eq	3
1 Coin/40 Credits	0	yes	DSW3	7	eq	4
1 Coin/80 Credits	32	no	DSW3	7	eq	4
1 Coin/50 Credits	0	yes	DSW3	7	eq	5
1 Coin/100 Credits	32	no	DSW3	7	eq	5
1 Coin/100 Credits	0	yes	DSW3	7	eq	6
1 Coin/200 Credits	32	no	DSW3	7	eq	6
1 Coin/250 Credits	0	yes	DSW3	7	eq	7
1 Coin/500 Credits	32	no	DSW3	7	eq	7

Coin B Rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin B Rate	DSW3	64

location

name	number	inverted
DSW3	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1x Coin C	0	yes
2x Coin C	64	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW3	128

location

name	number	inverted
DSW3	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	no
On	0	yes

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW4	1

location

name	number	inverted
DSW4	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	1	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW4	2

location

name	number	inverted
DSW4	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW4	4

location

name	number	inverted
DSW4	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	4	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW4	8

location

name	number	inverted
DSW4	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	8	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW4	16

location

name	number	inverted
DSW4	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	16	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW4	32

location

name	number	inverted
DSW4	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW4	64

location

name	number	inverted
DSW4	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	64	yes
On	0	no

Cherry/Bell Bonus

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Cherry/Bell Bonus	DSW4	128

location

name	number	inverted
DSW4	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
x6 / x3	128	yes
x9 / x5	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	IN1	2

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	IN1	16

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	16	yes
On	0	no
