ZX Spectrum Next: KS1 - mame (0287) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
specnext_ks1	sinclair/specnext.cpp		no	no	no	yes	ZX Spectrum Next: KS1	2020	SpecNext Ltd., Victor Trucco, Fabio Belavenuto	tbblue	tbblue

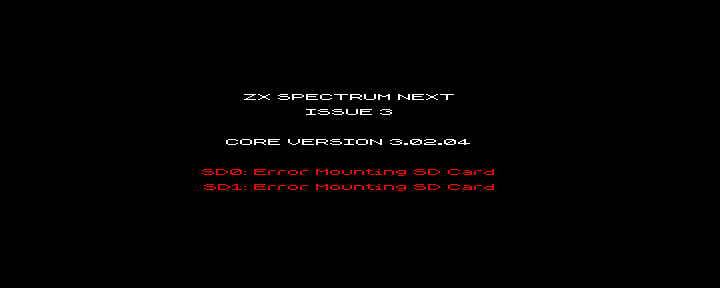

snap

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
specnext_ks1	1743	31/03/2026 11:18:01	720	288	96	96	0	Format24bppRgb	305:MAME 0.287 (mame0287)	22fae9226a5698aa38a27eb9c368afad01d2f38c

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	720	288	49.201529	14000000	912	0	720	312	0	288	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	status	optional	merge	bios
boot-30100.bin	8192	ccbd55ba	8b3c2a301f486904d1c74929b94845a7731bf230	maincpu	good	no	boot-30100.bin	v30100
boot-30200-ab.bin	8192	1d16e9d4	6f9c8771e5a9ef5a6b52a31b2e65f0698f0f5cfa	maincpu	good	no	boot-30200-ab.bin	v30200ab
boot-30204.bin	8192	95118eb6	acf5112e831be8c73952b8513fab33a427e88cf8	maincpu	good	no	boot-30204.bin	v30204
boot-30204-ab.bin	8192	96c32007	6c9fcbd282f7a18fb5a726386ac6fb9df209c36b	maincpu	good	no	boot-30204-ab.bin	v30204ab

chip

type	tag	name	clock
cpu	maincpu	Z80N	3500000
audio	speakers	Speaker
audio	speaker	Filtered DAC
audio	cassette	Cassette
audio	dac0	8-Bit R-2R DAC
audio	dac1	8-Bit R-2R DAC
audio	dac2	8-Bit R-2R DAC
audio	dac3	8-Bit R-2R DAC
audio	ay0	YM2149 SSG	1750000
audio	ay1	YM2149 SSG	1750000
audio	ay2	YM2149 SSG	1750000

softwarelist

tag	name	status	filter
cass_list	spectrum_cass	original
sd_list	specnext_sd	original

device_ref

tag	name
:maincpu	z80n
:specmem	address_map_bank
:screen	screen
:palette	palette
:gfxdecode	gfxdecode
:ula	ula
:speakers	speaker
:speaker	speaker_sound_device
:quickload	quickload
:cassette	cassette_image
:cass_list	software_list
:ram	ram
:im2_line	specnext_im2
:im2_ula	specnext_im2
:ctc	specnext_ctc
:ctc:ch0	z80ctc_channel
:ctc:ch1	z80ctc_channel
:ctc:ch2	z80ctc_channel
:ctc:ch3	z80ctc_channel
:dma	specnext_dma
:regs_map	address_map_bank
:i2c	i2c_ds1307
:i2c:nvram	nvram
:im2_uart0_rx	specnext_im2
:im2_uart0_tx	specnext_im2
:uart0	specnext_uart
:rs232_esp	rs232
:im2_uart1_rx	specnext_im2
:im2_uart1_tx	specnext_im2
:uart1	specnext_uart
:rs232_rpi	rs232
:sdcard0	spi_sdcard
:sdcard0:image	harddisk_image
:sdcard1	spi_sdcard
:sdcard1:image	harddisk_image
:dac0	dac_8bit_r2r
:dac1	dac_8bit_r2r
:dac2	dac_8bit_r2r
:dac3	dac_8bit_r2r
:ay0	ym2149
:ay1	ym2149
:ay2	ym2149
:multiface	specnext_multiface
:divmmc	specnext_divmmc
:zxbus	zxbus
:zxbus:1	zxbus_slot
:ula_scr	ula_next
:lores	lores
:tiles	tiles
:layer2	layer2
:sprites	sprites
:copper	specnext_copper
:sd_list	software_list

biosset

name	description	default
v30100	v3.01.00	no
v30200ab	v3.02.00 (AntiBrick)	no
v30204	v3.02.04	yes
v30204ab	v3.02.04 (AntiBrick)	no

sound

channels
1

ramoption

name	default
2M
1M	yes

device, instance

type	tag	interface	name	briefname
quickload	quickload		quickload	quik
cassette	cassette	spectrum_cass	cassette	cass
harddisk	sdcard0:image	sdcard	harddisk1	hard1
harddisk	sdcard1:image	sdcard	harddisk2	hard2

device, extension

type	tag	interface	extension_names
quickload	quickload		raw, scr
cassette	cassette	spectrum_cass	wav, flac, aif, aiff, tzx, tap, blk
harddisk	sdcard0:image	sdcard	chd, hd, hdv, 2mg, hdi
harddisk	sdcard1:image	sdcard	chd, hd, hdv, 2mg, hdi

input

players	coins	service	tilt
2		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity
joy	1	8	8	no
dial	1			yes	0	15	1
mouse	1			yes	0	255	40
keyboard	1	56		no
joy	2	8	8	no

port, analog

port_tag	analog_masks
:CONFIG
:JOY1
:JOY2
:JOY_LEFT
:JOY_RIGHT
:LINE0
:LINE1
:LINE2
:LINE3
:LINE4
:LINE5
:LINE6
:LINE7
:LYRS
:NMI
:PLUS0
:PLUS1
:PLUS2
:PLUS3
:PLUS4
:VIDEO
:mouse_input1	255
:mouse_input2	255
:mouse_input3
:mouse_input4	15

slot, slotoption

slot_name	slotoption_name	slotoption_devname	slotoption_default
rs232_esp	pty	pseudo_terminal	no
rs232_esp	null_modem	null_modem	no
rs232_rpi	pty	pseudo_terminal	no
rs232_rpi	null_modem	null_modem	no
zxbus:1	neogs	zxbus_neogs	no
zxbus:1	nemoide	zxbus_nemoide	no

configuration

Disable Tiles

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Disable Tiles	LYRS	1

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	1	no

Disable ULA/LoRes

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Disable ULA/LoRes	LYRS	2

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	2	no

Disable Layer2

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Disable Layer2	LYRS	4

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	4	no

Disable Sprites

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Disable Sprites	LYRS	8

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	8	no

Captured Video Resolution

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Captured Video Resolution	VIDEO	1

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
360x288 (HDMI)	0	yes
320x256 (VGA)	1	no
