mame (0289) • machine sr16 • SR-16 (Alesis)

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
sr16	alesis/alesis.cpp		no	no	no	yes	SR-16 (Alesis)	1990	Alesis

snap

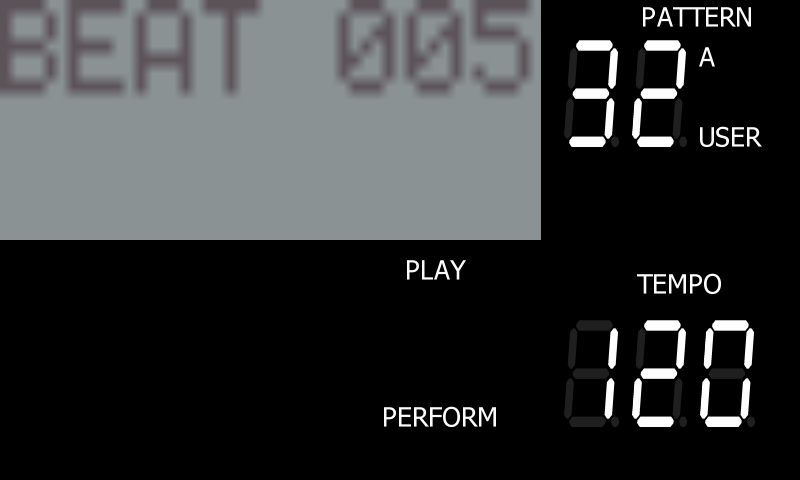

SR-16 (Alesis) png snap

SR-16 (Alesis) jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
sr16	38195	29/12/2025 11:31:45	800	480	96	96	0	Format24bppRgb	305:MAME 0.179 (Oct 26 2016)	fc2cb7cbcec0d1700815a4daa570f86f1cd267b4

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	lcd	0	48	18	50.000000								no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
sr16.u5	524288	8bb25cfa	273ad59d017b54a7e8d5e1ec61c8cd807a0e4af3	dm3ag	80000	good	no
sr16.u6	524288	6da96987	3ec8627d440bc73841e1408a19def09a8b0b77f7	dm3ag	0	good	no
sr16_v1_04.bin	65536	d049af6e	0bbeb4bd25e33a9eca64d5a31480f96a0040617e	maincpu	0	good	no		v104

chip

type	tag	name	clock
cpu	maincpu	Intel 80C31	12000000
audio	cassette	Cassette
audio	dm3ag:speaker1	Speaker
audio	dm3ag:speaker2	Speaker
audio	dm3ag:dac	PCM54HP DAC

device_ref

tag	name
:maincpu	i80c31
:screen	screen
:palette	palette
:cassette	cassette_image
:hd44780	hd44780
:dm3ag	alesis_dm3ag
:dm3ag:speaker1	speaker
:dm3ag:speaker2	speaker
:dm3ag:dac	pcm54hp
:nvram	nvram

biosset

name	description	default
v104	ver 1.04	no

sound

channels
2

feature

type	status	overall
sound	unemulated

device, instance

type	tag	interface	fixed_image	mandatory	name	briefname
cassette	cassette	hr16_cass			cassette	cass

device, extension

type	tag	interface	fixed_image	mandatory	extension_names
cassette	cassette	hr16_cass			wav, flac, aif, aiff

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
keyboard		40		no

port, analog

port_tag	analog_masks
:COL1
:COL2
:COL3
:COL4
:COL5
:COL6
