Star Trek: The Next Generation (LX-1) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Lists: 731 - Software: 139884 - rom: 235974 - disk: 11384

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
sttng_l1	pinball/wpc_dcs.cpp		no	no	yes	yes	Star Trek: The Next Generation (LX-1)	1993	Williams	sttng_l7	sttng_l7

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx

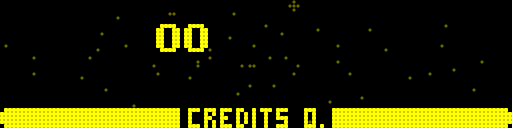

dmd:screen	lcd	0	512	128	60.000000								no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	supported	yes	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
trek_lx1.rom	524288	390befc0	2059891e3fc3034d600274c3915371123c964d28	maincpu	0	good	no
ng_u2_s.l1	524288	c3bd7bf5	2476ff90232a52d667a407fac81ee4db028b94e5	dcs	0	good	no	ng_u2_s.l1
ng_u3_s.l1	524288	9456cac7	83e415e0f21bb5418f3677dbc13433e056c523ab	dcs	200000	good	no	ng_u3_s.l1
ng_u4_s.l1	524288	179d22a4	456b7189e23d4e2bd7e2a6249fa2a73bf0e12194	dcs	400000	good	no	ng_u4_s.l1
ng_u5_s.l1	524288	231a3e72	081b1a042e62ccb723788059d6c1e00b9b32c778	dcs	600000	good	no	ng_u5_s.l1
ng_u6_s.l1	524288	bb21377d	229fb42a1f8b22727a809e5d63f26f045a2adda5	dcs	800000	good	no	ng_u6_s.l1
ng_u7_s.l1	524288	d81b39f0	3443e7327c755b85a5b390f7fcd0e9923890425a	dcs	a00000	good	no	ng_u7_s.l1
ng_u8_s.l1	524288	c9fb065e	c148178ee0ea787acc88078db01d17073e75fdc7	dcs	c00000	good	no	ng_u8_s.l1

chip

type	tag	name	clock
cpu	maincpu	MC6809 (legacy)	2000000
cpu	dcs:dcs	Analog Devices ADSP-2105	10000000
audio	mono	Speaker
audio	dcs	DCS Audio 8K
audio	dcs:dac	DMA-driven DAC

device_ref

name
m6809
timer
wpc_lamp
wpc_out
wpc_shift
wpc_dmd
screen
timer
nvram
speaker
dcs_audio_8k
adsp2105
timer
timer
dmadac

sound

channels
1

feature

type	status	overall
sound	unemulated

input

players	coins	service	tilt
1	4	no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
keypad		73		no

port, analog

port_tag	analog_masks
:DOOR
:DSW
:FLIPPERS
:X0
:X1
:X2
:X3
:X4
:X5
:X6
:X7

dipswitch

Switch 1

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Switch 1	DSW	1

location

name	number	inverted
SWA	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	1	yes

Switch 2

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Switch 2	DSW	2

location

name	number	inverted
SWA	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	2	yes

W20

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
W20	DSW	4

location

name	number	inverted
SWA	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	4	no

W19

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
W19	DSW	8

location

name	number	inverted
SWA	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	8	no

Country

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Country	DSW	240

location

name	number	inverted
SWA	5	no
SWA	6	no
SWA	7	no
SWA	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
USA 1	0	yes
France 1	16	no
Germany	32	no
France 2	48	no
Unknown 1	64	no
Unknown 2	80	no
Unknown 3	96	no
Unknown 4	112	no
Export 1	128	no
France 3	144	no
Export 2	160	no
France 4	176	no
UK	192	no
Europe	208	no
Spain	224	no
USA 2	240	no
