Star Trek: The Next Generation (LX-7) - mame (0287) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
sttng_l7	pinball/wpc_dcs.cpp		no	no	yes	yes	Star Trek: The Next Generation (LX-7)	1994	Williams

snap

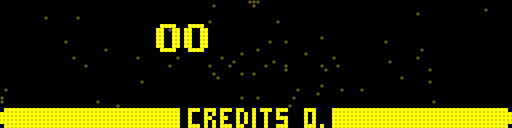

Star Trek: The Next Generation (LX-7) png snap

Star Trek: The Next Generation (LX-7) jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
sttng_l7	1635	29/12/2025 11:31:46	512	128	96	96	0	Format24bppRgb	305:MAME 0.171 (Feb 26 2016)	106a7001eae1b9e3e4ea700aeb52478d7eb9b53a

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
dmd:screen	lcd	0	512	128	60.000000								no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	supported	yes	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
trek_lx7.rom	524288	d439fdbb	12d1c72cd6cc18db53e51ebb4c1e55ca9bcf9908	maincpu	0	good	no
ng_u2_s.l1	524288	c3bd7bf5	2476ff90232a52d667a407fac81ee4db028b94e5	dcs	0	good	no
ng_u3_s.l1	524288	9456cac7	83e415e0f21bb5418f3677dbc13433e056c523ab	dcs	200000	good	no
ng_u4_s.l1	524288	179d22a4	456b7189e23d4e2bd7e2a6249fa2a73bf0e12194	dcs	400000	good	no
ng_u5_s.l1	524288	231a3e72	081b1a042e62ccb723788059d6c1e00b9b32c778	dcs	600000	good	no
ng_u6_s.l1	524288	bb21377d	229fb42a1f8b22727a809e5d63f26f045a2adda5	dcs	800000	good	no
ng_u7_s.l1	524288	d81b39f0	3443e7327c755b85a5b390f7fcd0e9923890425a	dcs	a00000	good	no
ng_u8_s.l1	524288	c9fb065e	c148178ee0ea787acc88078db01d17073e75fdc7	dcs	c00000	good	no

chip

type	tag	name	clock
cpu	maincpu	MC6809 (legacy)	2000000
cpu	dcs:dcs	Analog Devices ADSP-2105	10000000
audio	mono	Speaker
audio	dcs	DCS Audio 8K
audio	dcs:dac	DMA-driven DAC

device_ref

tag	name
:maincpu	m6809
:zero_crossing	timer
:lamp	wpc_lamp
:out	wpc_out
:shift	wpc_shift
:dmd	wpc_dmd
:dmd:screen	screen
:dmd:scanline	timer
:nvram	nvram
:mono	speaker
:dcs	dcs_audio_8k
:dcs:dcs	adsp2105
:dcs:dcs_reg_timer	timer
:dcs:dcs_int_timer	timer
:dcs:dac	dmadac

sound

channels
1

feature

type	status	overall
sound	unemulated

input

players	coins	service	tilt
1	4	no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
keypad		73		no

port, analog

port_tag	analog_masks
:DOOR
:DSW
:FLIPPERS
:X0
:X1
:X2
:X3
:X4
:X5
:X6
:X7

dipswitch

Switch 1

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Switch 1	DSW	1

location

name	number	inverted
SWA	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	1	yes

Switch 2

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Switch 2	DSW	2

location

name	number	inverted
SWA	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	2	yes

W20

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
W20	DSW	4

location

name	number	inverted
SWA	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	4	no

W19

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
W19	DSW	8

location

name	number	inverted
SWA	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	8	no

Country

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Country	DSW	240

location

name	number	inverted
SWA	5	no
SWA	6	no
SWA	7	no
SWA	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
USA 1	0	yes
France 1	16	no
Germany	32	no
France 2	48	no
Unknown 1	64	no
Unknown 2	80	no
Unknown 3	96	no
Unknown 4	112	no
Export 1	128	no
France 3	144	no
Export 2	160	no
France 4	176	no
UK	192	no
Europe	208	no
Spain	224	no
USA 2	240	no

clones

name	description
sttng_g7	Star Trek: The Next Generation (LG-7)
sttng_l1	Star Trek: The Next Generation (LX-1)
sttng_l2	Star Trek: The Next Generation (LX-2)
sttng_l3	Star Trek: The Next Generation (LX-3)
sttng_l5	Star Trek: The Next Generation (LX-5)
sttng_x7	Star Trek: The Next Generation (LX-7 Special)
sttng_s7	Star Trek: The Next Generation (LX-7) SP1
sttng_p4	Star Trek: The Next Generation (P-4)
sttng_p5	Star Trek: The Next Generation (P-5)
sttng_p8	Star Trek: The Next Generation (P-8)
