Star Trek: The Next Generation (LX-7 Special) - mame (0287) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
sttng_x7	pinball/wpc_dcs.cpp		no	no	yes	yes	Star Trek: The Next Generation (LX-7 Special)	1994	Williams	sttng_l7	sttng_l7

snap

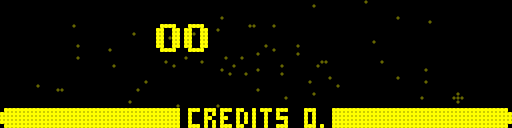

Star Trek: The Next Generation (LX-7 Special) png snap

Star Trek: The Next Generation (LX-7 Special) jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
sttng_x7	1604	29/12/2025 11:31:46	512	128	96	96	0	Format24bppRgb	305:MAME 0.171 (Feb 26 2016)	21c2828b51812785c9ad012721937b99a57897fd

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
dmd:screen	lcd	0	512	128	60.000000								no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	supported	yes	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
trek_x7.rom	524288	4e71c9c7	8a7ec42dfb4a6902ba745548b40e84de5305c295	maincpu	0	good	no
ngs_u2.rom	524288	e9fe68fe	3d7631aa5ddd52f7c3c00cd091e212430faea249	dcs	0	good	no
ngs_u3.rom	524288	368cfd89	40ddc12b2cabbcf73ababf753f3a2fd4bcc10737	dcs	200000	good	no
ngs_u4.rom	524288	8e79a513	4b763d7445acd921a0a6d64d18b5df8ff9e3257e	dcs	400000	good	no
ngs_u5.rom	524288	46049eb0	02991bf1d33ac1df91f459b2d37cf7e07e347b04	dcs	600000	good	no
ngs_u6.rom	524288	e0124da0	bfdba059d084c93122ad291aa8def61f43c26d47	dcs	800000	good	no
ngs_u7.rom	524288	dc1c74d0	21b6b4d2cdd5086bcbbc7ee7a2abdc550a45d2e3	dcs	a00000	good	no
ng_u8_s.l1	524288	c9fb065e	c148178ee0ea787acc88078db01d17073e75fdc7	dcs	c00000	good	no	ng_u8_s.l1

chip

type	tag	name	clock
cpu	maincpu	MC6809 (legacy)	2000000
cpu	dcs:dcs	Analog Devices ADSP-2105	10000000
audio	mono	Speaker
audio	dcs	DCS Audio 8K
audio	dcs:dac	DMA-driven DAC

device_ref

tag	name
:maincpu	m6809
:zero_crossing	timer
:lamp	wpc_lamp
:out	wpc_out
:shift	wpc_shift
:dmd	wpc_dmd
:dmd:screen	screen
:dmd:scanline	timer
:nvram	nvram
:mono	speaker
:dcs	dcs_audio_8k
:dcs:dcs	adsp2105
:dcs:dcs_reg_timer	timer
:dcs:dcs_int_timer	timer
:dcs:dac	dmadac

sound

channels
1

feature

type	status	overall
sound	unemulated

input

players	coins	service	tilt
1	4	no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
keypad		73		no

port, analog

port_tag	analog_masks
:DOOR
:DSW
:FLIPPERS
:X0
:X1
:X2
:X3
:X4
:X5
:X6
:X7

dipswitch

Switch 1

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Switch 1	DSW	1

location

name	number	inverted
SWA	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	1	yes

Switch 2

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Switch 2	DSW	2

location

name	number	inverted
SWA	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	2	yes

W20

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
W20	DSW	4

location

name	number	inverted
SWA	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	4	no

W19

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
W19	DSW	8

location

name	number	inverted
SWA	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	8	no

Country

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Country	DSW	240

location

name	number	inverted
SWA	5	no
SWA	6	no
SWA	7	no
SWA	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
USA 1	0	yes
France 1	16	no
Germany	32	no
France 2	48	no
Unknown 1	64	no
Unknown 2	80	no
Unknown 3	96	no
Unknown 4	112	no
Export 1	128	no
France 3	144	no
Export 2	160	no
France 4	176	no
UK	192	no
Europe	208	no
Spain	224	no
USA 2	240	no
