Sugorotic JAPAN (STJ1 Ver.B) - mame (0287) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
sugorotcb	namco/namcos10.cpp		no	no	no	yes	Sugorotic JAPAN (STJ1 Ver.B)	2002	Namco	sugorotc	sugorotc

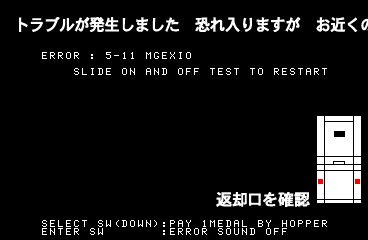

snap

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
sugorotcb	5225	31/03/2026 14:20:07	368	240	96	96	0	Format24bppRgb	305:MAME 0.287 (mame0287)	bfbcd8a80a03d3f0a98d9e03ea255062a9b742f2

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	640	480	60.000000								no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
k9f2808u0b.8e	17301504	4f2a62c2	db38a2976e464c5499791150ad31d281071b7337	nand0	0	good	no
k9f2808u0b.8d	17301504	796fb7c9	3cd8fbe115bcb3a304b49e26c0e8155391c26a98	nand1	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Sony CXD8606BQ	101491200
cpu	exio:exio_mcu	Hitachi H8/3007	14746000
audio	speaker	Speaker
audio	spu	PlayStation SPU	50745600
audio	ata:0:cdrom:cdda	CD/DA	44100

device_ref

tag	name
:maincpu	cxd8606bq
:maincpu:irq	psxirq
:maincpu:dma	psxdma
:maincpu:mdec	psxmdec
:maincpu:rcnt	psxrcnt
:maincpu:sio0	psxsio0
:maincpu:sio1	psxsio1
:maincpu:ram	ram
:gpu	cxd8561cq
:screen	screen
:speaker	speaker
:spu	psxspu
:io_timer	timer
:ata	ata_interface
:ata:0	ata_slot
:ata:0:cdrom	cr589
:ata:0:cdrom:image	cdrom_image
:ata:0:cdrom:cdda	cdda
:ata:1	ata_slot
:exio	namcos10_mgexio
:exio:exio_mcu	h83007
:exio:exio_mcu:intc	h8h_intc
:exio:exio_mcu:adc	h8_adc_3006
:exio:exio_mcu:port4	h8_digital_port
:exio:exio_mcu:port6	h8_digital_port
:exio:exio_mcu:port7	h8_digital_port
:exio:exio_mcu:port8	h8_digital_port
:exio:exio_mcu:port9	h8_digital_port
:exio:exio_mcu:porta	h8_digital_port
:exio:exio_mcu:portb	h8_digital_port
:exio:exio_mcu:timer8_0	h8h_timer8_channel
:exio:exio_mcu:timer8_1	h8h_timer8_channel
:exio:exio_mcu:timer8_2	h8h_timer8_channel
:exio:exio_mcu:timer8_3	h8h_timer8_channel
:exio:exio_mcu:timer16	h8_timer16
:exio:exio_mcu:timer16:0	h8h_timer16_channel
:exio:exio_mcu:timer16:1	h8h_timer16_channel
:exio:exio_mcu:timer16:2	h8h_timer16_channel
:exio:exio_mcu:sci0	h8_sci
:exio:exio_mcu:sci1	h8_sci
:exio:exio_mcu:sci2	h8_sci
:exio:exio_mcu:watchdog	h8_watchdog
:exio:nvram	nvram
:mgexio_hopper1	coin_hopper
:mgexio_hopper2	coin_hopper
:mgexio_hopper3	coin_hopper
:nand0	samsung_k9f2808u0b
:nand1	samsung_k9f2808u0b
:decrypter	ns10_type2_decrypter

sound

channels
1

feature

type	status	overall
graphics		imperfect
sound	imperfect

device, instance

type	tag	interface	fixed_image	mandatory	name	briefname
cdrom	ata:0:cdrom:image	cdrom			cdrom	cdrm

device, extension

type	tag	interface	fixed_image	mandatory	extension_names
cdrom	ata:0:cdrom:image	cdrom			chd, cue, toc, nrg, gdi, iso, cdr

input

players	coins	service	tilt
1	2	yes	yes

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
only_buttons		10		no

port, analog

port_tag	analog_masks
:EXIO_IN1
:EXIO_IN2
:IN1
:MGEXIO_COIN
:MGEXIO_SENSOR
:SYSTEM
:mgexio_hopper1:TEST
:mgexio_hopper2:TEST
:mgexio_hopper3:TEST

dipswitch

Service Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Service Mode	SYSTEM	1

location

name	number	inverted
SW1	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	1	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	SYSTEM	2

location

name	number	inverted
SW1	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	SYSTEM	4

location

name	number	inverted
SW1	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	4	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	SYSTEM	8

location

name	number	inverted
SW1	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	8	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	SYSTEM	16

location

name	number	inverted
SW1	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	16	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	SYSTEM	32

location

name	number	inverted
SW1	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	SYSTEM	64

location

name	number	inverted
SW1	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	64	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	SYSTEM	128

location

name	number	inverted
SW1	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	yes
On	0	no
