Sun 3/60 - mame (0287) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
sun3_60	sun/sun3.cpp		no	no	no	yes	Sun 3/60	1988	Sun Microsystems

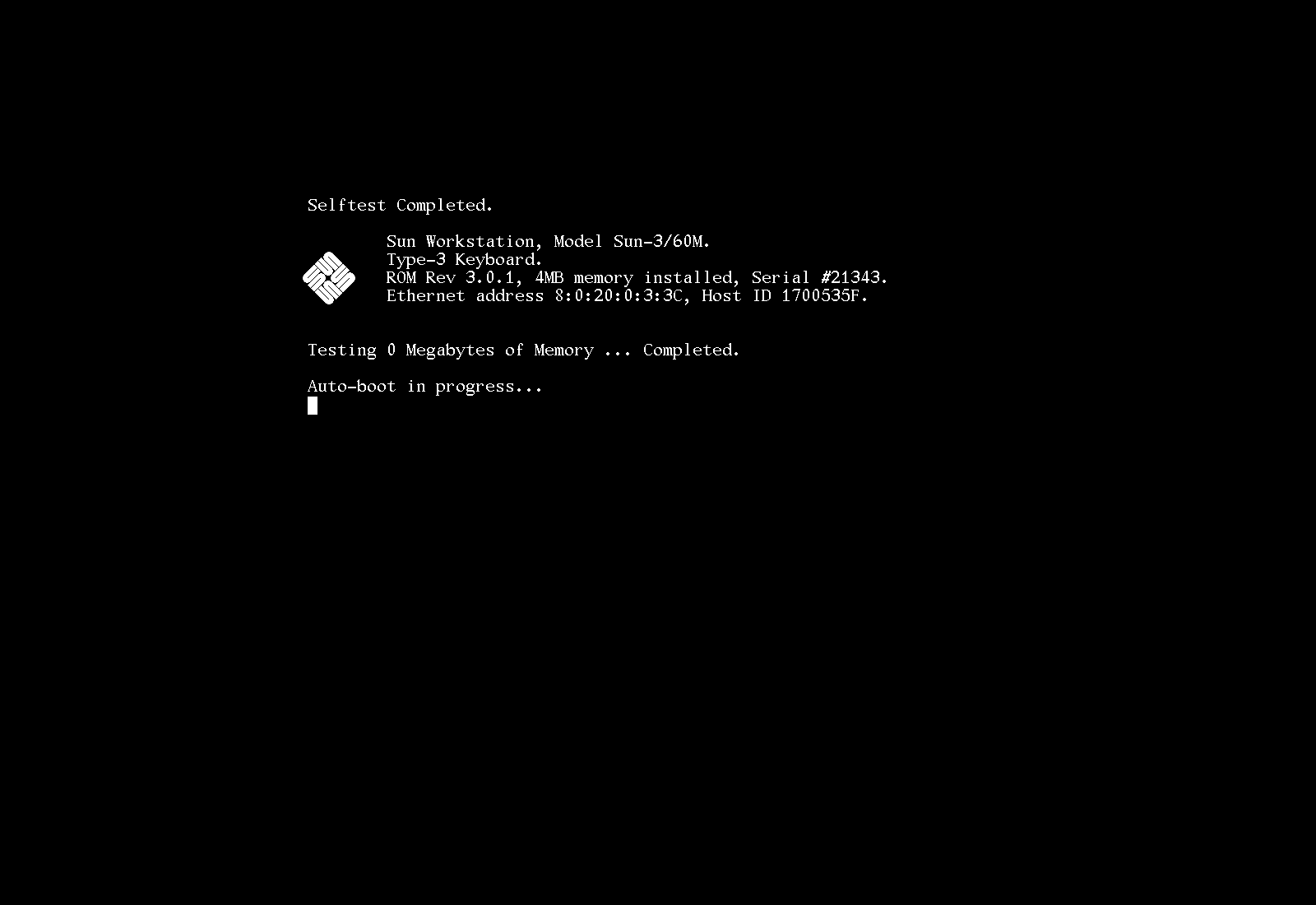

snap

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
sun3_60	12414	26/03/2026 08:59:31	1600	1100	96	96	0	Format24bppRgb	305:MAME 0.286 (mame0286)	b0947afd081097d99cdc0d98a019172a31b3ea1c

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
bwtwo	raster	0	1600	1100	72.000000	126720000	1600	0	1600	1100	0	1100	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	status	optional	bios
sun_3.60v3.0.1	65536	e55dc1d8	6e48414ce2139282e69f57612b20f7d5c475e74c	user1	good	no	rev301
sun_3.60v2.8.3	65536	de4ec54d	e621a9c1a2a7df4975b12fa3a0d7f106383736ef	user1	good	no	rev283
sun_3.60v1.9	65536	32b6d3a9	307756ba5698611d51059881057f8086956ce895	user1	good	no	rev19
sun3-60-idprom.bin	32	117e766a	f01547be0156bd4e06bbdee4c342d1b38c7646ae	idprom	good	no

chip

type	tag	name	clock
cpu	maincpu	Motorola MC68020	20000000
audio	keyboard:type3hle:bell	Speaker
audio	keyboard:type3hle:beeper	Beep	2083
audio	scsibus:6:cdrom:cdda	CD/DA	44100

device_ref

tag	name
:maincpu	m68020
:bwtwo	screen
:ram	ram
:nvram	nvram
:type0	address_map_bank
:type1	address_map_bank
:type2	address_map_bank
:type3	address_map_bank
:timer	timer
:scc1	scc8530
:scc1:cha	z80scc_channel
:scc1:chb	z80scc_channel
:keyboard	sunkbd
:keyboard:type3hle	kbd_type3_hle
:keyboard:type3hle:bell	speaker
:keyboard:type3hle:beeper	beep
:mouseport	sunmouse
:mouseport:hle1200	sunmouse_hle1200
:scc2	scc8530
:scc2:cha	z80scc_channel
:scc2:chb	z80scc_channel
:rs232a	rs232
:rs232b	rs232
:lance	am79c90
:scsibus	nscsi_bus
:scsibus:0	nscsi_connector
:scsibus:1	nscsi_connector
:scsibus:1:harddisk	scsi_harddisk
:scsibus:1:harddisk:image	harddisk_image
:scsibus:2	nscsi_connector
:scsibus:3	nscsi_connector
:scsibus:4	nscsi_connector
:scsibus:4:tape	scsi_tape
:scsibus:4:tape:image	simh_tape_image
:scsibus:5	nscsi_connector
:scsibus:6	nscsi_connector
:scsibus:6:cdrom	scsi_cdrom
:scsibus:6:cdrom:image	cdrom_image
:scsibus:6:cdrom:cdda	cdda
:sbc	ncr5380
:udc	am9516

biosset

name	description	default
rev301	Rev 3.0.1	no
rev283	Rev 2.8.3	no
rev19	Rev 1.9	no

sound

channels
1

feature

type	status	overall
sound	unemulated

ramoption

name	default
6M
8M
12M
16M
20M
24M
28M
32M
4M	yes

device, instance

type	tag	interface	name	briefname
harddisk	scsibus:1:harddisk:image	scsi_hdd,hdd	harddisk	hard
tape	scsibus:4:tape:image	tape	tape	tap
cdrom	scsibus:6:cdrom:image	cdrom	cdrom	cdrm

device, extension

type	tag	interface	extension_names
harddisk	scsibus:1:harddisk:image	scsi_hdd,hdd	chd, hd, hdv, 2mg, hdi
tape	scsibus:4:tape:image	tape	tap
cdrom	scsibus:6:cdrom:image	cdrom	chd, cue, toc, nrg, gdi, iso, cdr

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
mouse		3		no	0	61440	100
keyboard		95		no

port, analog

port_tag	analog_masks
:diagsw
:keyboard:type3hle:DIP
:keyboard:type3hle:ROW0
:keyboard:type3hle:ROW1
:keyboard:type3hle:ROW2
:keyboard:type3hle:ROW3
:keyboard:type3hle:ROW4
:keyboard:type3hle:ROW5
:keyboard:type3hle:ROW6
:keyboard:type3hle:ROW7
:mouseport:hle1200:BTN
:mouseport:hle1200:X	4095
:mouseport:hle1200:Y	4095

slot, slotoption

slot_name	slotoption_name	slotoption_devname	slotoption_default
keyboard	type5jphle	kbd_type5_hle_jp	no
keyboard	type5sehle	kbd_type5_hle_se	no
keyboard	type5hle	kbd_type5_hle_us	no
keyboard	type4hle	kbd_type4_hle	no
keyboard	type5gbhle	kbd_type5_hle_gb	no
keyboard	type3hle	kbd_type3_hle	yes
mouseport	hle4800	sunmouse_hle4800	no
mouseport	hle1200	sunmouse_hle1200	yes
rs232a	terminal	serial_terminal	no
rs232a	sunkbd	sunkbd_adaptor	no
rs232a	votraxtnt	serial_votraxtnt	no
rs232a	rs_printer	rs_serial_printer	no
rs232a	dec_loopback	dec_rs232_loopback	no
rs232a	h19	serial_heath_h19	no
rs232a	ie15	ie15_terminal	no
rs232a	null_modem	null_modem	no
rs232a	keyboard	serial_keyboard	no
rs232a	patch	rs232_patch_box	no
rs232a	swtpc8212	swtpc8212_terminal	no
rs232a	printer	serial_printer	no
rs232a	scorpion	scorpion_ic	no
rs232a	loopback	rs232_loopback	no
rs232a	mockingboard	mockingboardd	no
rs232a	msystems_mouse	rs232_mouse_hle_msystems	no
rs232a	nss_tvi	nss_tvinterface	no
rs232a	rs232_sync_io	rs232_sync_io	no
rs232a	pty	pseudo_terminal	no
rs232b	terminal	serial_terminal	no
rs232b	sunkbd	sunkbd_adaptor	no
rs232b	votraxtnt	serial_votraxtnt	no
rs232b	rs_printer	rs_serial_printer	no
rs232b	dec_loopback	dec_rs232_loopback	no
rs232b	h19	serial_heath_h19	no
rs232b	ie15	ie15_terminal	no
rs232b	null_modem	null_modem	no
rs232b	keyboard	serial_keyboard	no
rs232b	patch	rs232_patch_box	no
rs232b	swtpc8212	swtpc8212_terminal	no
rs232b	printer	serial_printer	no
rs232b	scorpion	scorpion_ic	no
rs232b	loopback	rs232_loopback	no
rs232b	mockingboard	mockingboardd	no
rs232b	msystems_mouse	rs232_mouse_hle_msystems	no
rs232b	nss_tvi	nss_tvinterface	no
rs232b	rs232_sync_io	rs232_sync_io	no
rs232b	pty	pseudo_terminal	no
scsibus:0	tape	scsi_tape	no
scsibus:0	harddisk	scsi_harddisk	no
scsibus:0	cdrom	scsi_cdrom	no
scsibus:1	tape	scsi_tape	no
scsibus:1	harddisk	scsi_harddisk	yes
scsibus:1	cdrom	scsi_cdrom	no
scsibus:2	tape	scsi_tape	no
scsibus:2	harddisk	scsi_harddisk	no
scsibus:2	cdrom	scsi_cdrom	no
scsibus:3	tape	scsi_tape	no
scsibus:3	harddisk	scsi_harddisk	no
scsibus:3	cdrom	scsi_cdrom	no
scsibus:4	tape	scsi_tape	yes
scsibus:4	harddisk	scsi_harddisk	no
scsibus:4	cdrom	scsi_cdrom	no
scsibus:5	tape	scsi_tape	no
scsibus:5	harddisk	scsi_harddisk	no
scsibus:5	cdrom	scsi_cdrom	no
scsibus:6	tape	scsi_tape	no
scsibus:6	harddisk	scsi_harddisk	no
scsibus:6	cdrom	scsi_cdrom	yes

configuration

Diagnostic Switch

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Diagnostic Switch	diagsw	1

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Normal	0	yes
Diagnostic	1	no
