mame (0289) • machine sym1 • SYM-1/SY-VIM-1

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
sym1	synertek/sym1.cpp		no	no	no	yes	SYM-1/SY-VIM-1	1978	Synertek Systems Corp.

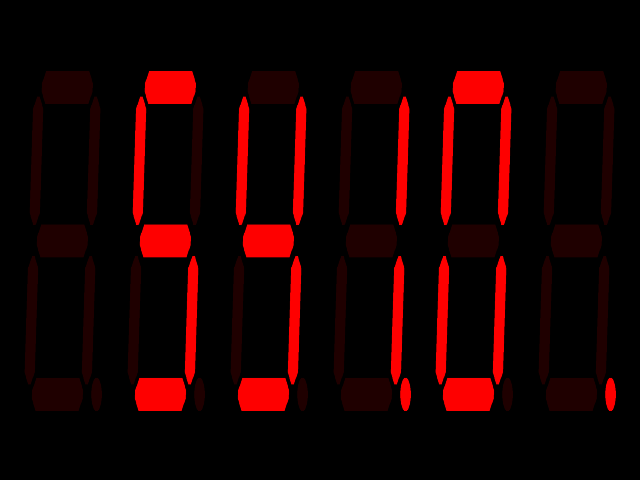

snap

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
sym1	11914	11/03/2026 14:25:51	640	480	96	96	0	Format24bppRgb	305:MAME 0.286 (mame0286)	3e504ce875f105fd6712b2c7d7d60cf0380cc026

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	bios
bas_c000	4096	c168fe70	7447a5e229140cbbde4cf90886966a5d93aa24e1	maincpu	c000	good	no
bas_d000	4096	8375a978	240301bf8bb8ddb99b65a585f17895e1ad872631	maincpu	d000	good	no
rae_b000	4096	f6429326	6f2f10649b54f54217bb35c8c453b5d05434bd86	maincpu	b000	good	no
rae_e000	4096	2255444b	c7dd812962c2e2edd2faa7055e9cce4e769c0388	maincpu	e000	good	no
symon1_0.bin	4096	97928583	6ac52c54adb7a086d51bc7f6d55dd30ab3a0a331	maincpu	8000	good	no	ver10
symon1_1.bin	4096	7a4b1e12	cebdf815105592658cfb7af262f2101d2aeab786	maincpu	8000	good	no	ver11

chip

type	tag	name	clock
cpu	maincpu	MOS Technology 6502	1000000
audio	mono	Speaker
audio	speaker	Filtered DAC
audio	cassette	Cassette

softwarelist

tag	name	status	filter
cass_list	sym1_cass	original

device_ref

tag	name
:maincpu	m6502
:mono	speaker
:speaker	speaker_sound_device
:riot	mos6532
:ttl74145	ttl74145
:via1	mos6522
:via2	mos6522
:via3	mos6522
:mainirq	ipt_merge_any_hi
:crt	rs232
:tty	rs232
:cassette	cassette_image
:cass_r	timer
:ram	ram
:cass_list	software_list

biosset

name	description	default
ver10	Version 1.0	no
ver11	Version 1.1	no

sound

channels
1

ramoption

name	default
1K
2K
3K
4K	yes

device, instance

type	tag	interface	fixed_image	mandatory	name	briefname
cassette	cassette	sym1_cass			cassette	cass

device, extension

type	tag	interface	fixed_image	mandatory	extension_names
cassette	cassette	sym1_cass			wav, flac, aif, aiff

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
keyboard		27		no

port, analog

port_tag	analog_masks
:IN4
:ROW-0
:ROW-1
:ROW-2
:ROW-3
:WP

slot, slotoption

slot_name	slotoption_name	slotoption_devname	slotoption_default
crt	terminal	serial_terminal	no
crt	swtpc8212	swtpc8212_terminal	no
crt	sunkbd	sunkbd_adaptor	no
crt	rs_printer	rs_serial_printer	no
crt	rs232_sync_io	rs232_sync_io	no
crt	printer	serial_printer	no
crt	patch	rs232_patch_box	no
crt	s97801	s97801_terminal	no
crt	msystems_mouse	rs232_mouse_hle_msystems	no
crt	scorpion	scorpion_ic	no
crt	nss_tvi	nss_tvinterface	no
crt	mockingboard	mockingboardd	no
crt	loopback	rs232_loopback	no
crt	keyboard	serial_keyboard	no
crt	ie15	ie15_terminal	no
crt	null_modem	null_modem	no
crt	votraxtnt	serial_votraxtnt	no
crt	h19	serial_heath_h19	no
crt	dec_loopback	dec_rs232_loopback	no
crt	pty	pseudo_terminal	no
crt	auto3a	auto3a_terminal	no
tty	terminal	serial_terminal	no
tty	swtpc8212	swtpc8212_terminal	no
tty	sunkbd	sunkbd_adaptor	no
tty	rs_printer	rs_serial_printer	no
tty	rs232_sync_io	rs232_sync_io	no
tty	printer	serial_printer	no
tty	patch	rs232_patch_box	no
tty	s97801	s97801_terminal	no
tty	msystems_mouse	rs232_mouse_hle_msystems	no
tty	scorpion	scorpion_ic	no
tty	nss_tvi	nss_tvinterface	no
tty	mockingboard	mockingboardd	no
tty	loopback	rs232_loopback	no
tty	keyboard	serial_keyboard	no
tty	ie15	ie15_terminal	no
tty	null_modem	null_modem	no
tty	votraxtnt	serial_votraxtnt	no
tty	h19	serial_heath_h19	no
tty	dec_loopback	dec_rs232_loopback	no
tty	pty	pseudo_terminal	no
tty	auto3a	auto3a_terminal	no

dipswitch

6532 RAM WP

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
6532 RAM WP	WP	1

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	1	yes

1K RAM WP

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
1K RAM WP	WP	2

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	2	yes

2K RAM WP

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
2K RAM WP	WP	4

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	4	yes

3K RAM WP

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
3K RAM WP	WP	8

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	8	yes
