mame (0289) • machine sz1 • SZ-1

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
sz1	casio/cz230s.cpp		no	no	no	yes	SZ-1	1985	Casio

snap

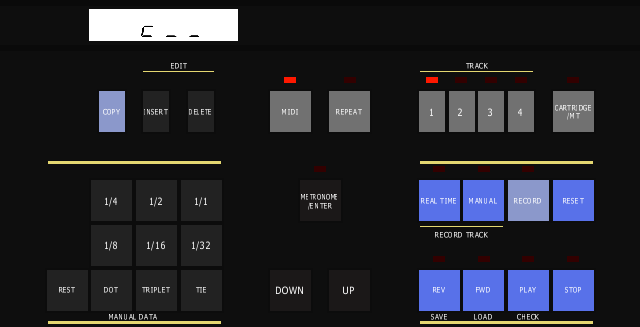

SZ-1 png snap

SZ-1 jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
sz1	13339	29/12/2025 11:31:46	640	327	96	96	0	Format24bppRgb	305:MAME 0.262.0 (Jan 31 2024)	6718624f5f50b41bea3e1ae654f7aba20dc65e41

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	svg	0	938	205	60.000000	11537400	938	0	938	205	0	205	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
program.bin	16384	15f83fa5	cb0d8d8390266f247dc7718b95bc658d1719d105	program	0	good	no
sz1.svg	25655	fd14625b	069790868b382725d309fcab0148147f76ff82cc	screen	0	good	no
upd7811g-120.bin	4096	597ac04a	96451a764296eaa22aaad3cba121226dcba865f4	maincpu	0	good	no

chip

type	tag	name	clock
cpu	maincpu	NEC uPD7811	10000000
audio	speaker	Speaker
audio	cassette	Cassette
audio	beep	Beep	2000

device_ref

tag	name
:maincpu	upd7811
:midi_clock	clock
:mdin	midi_port
:mdin:midiin	midiin_port
:mdin:midiin:midiinimg	midiin
:mdout	midi_port
:mdout:midiout	midiout_port
:mdout:midiout:midioutimg	midiout
:nvram	nvram
:lcdc	mn1252
:screen	screen
:speaker	speaker
:cassette	cassette_image
:cart	casio_ra5
:beep	beep

sound

channels
1

device, instance

type	tag	interface	fixed_image	mandatory	name	briefname
midiin	mdin:midiin:midiinimg				midiin	min
midiout	mdout:midiout:midioutimg				midiout	mout
cassette	cassette				cassette	cass
cartridge	cart	cz_cart			cartridge	cart

device, extension

type	tag	interface	fixed_image	mandatory	extension_names
midiin	mdin:midiin:midiinimg				mid, syx
midiout	mdout:midiout:midioutimg				mid
cassette	cassette				wav, flac, aif, aiff
cartridge	cart	cz_cart			bin

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
keypad		31		no

port, analog

port_tag	analog_masks
:KC0
:KC1
:KC2
:KC3
:KC4
:PA
:PB
:PC
:mdin:midiin:midiinimg:CFG

slot, slotoption

slot_name	slotoption_name	slotoption_devname	slotoption_default
mdin	midiin	midiin_port	yes
mdout	midiout	midiout_port	yes

configuration

MIDI file mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
MIDI file mode	mdin:midiin:midiinimg:CFG	255

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Multi	255	yes
Poly: Channel 1	0	no
Poly: Channel 2	1	no
Poly: Channel 3	2	no
Poly: Channel 4	3	no
Poly: Channel 5	4	no
Poly: Channel 6	5	no
Poly: Channel 7	6	no
Poly: Channel 8	7	no
Poly: Channel 9	8	no
Poly: Channel 10	9	no
Poly: Channel 11	10	no
Poly: Channel 12	11	no
Poly: Channel 13	12	no
Poly: Channel 14	13	no
Poly: Channel 15	14	no
Poly: Channel 16	15	no
