Tandy 1000 RL - mame (0284) machine

MAME: 0284 - Released: 2025-12-30T16:33:58 - Machines: 49538 - rom: 367487 - disk: 1392

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
t1000rl	pc/tandy1t.cpp		no	no	no	yes	Tandy 1000 RL	1989	Tandy Radio Shack	ibm5150	ibm5150

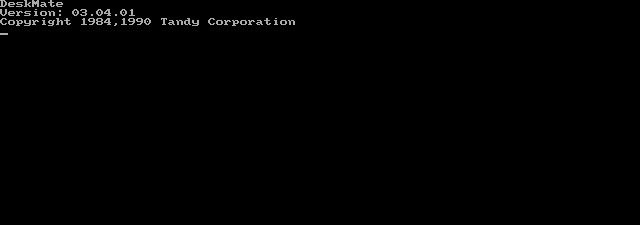

snap

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems
t1000rl	1320	29/12/2025 11:31:46	640	225	96	96	0	Format24bppRgb	305:MAME 0.176 (Jul 27 2016)

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
pcvideo_t1000:screen	raster	0	640	200	59.922748	14318181	912	0	640	262	0	200	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
8079073.u23	524288	6fab50f7	2ccc02bee4c250dc1b7c17faef2590bc158860b0	rom	0	good	no
8079027.u3	16384	33d64a11	b63da2a656b6c0a8a32f2be8bdcb51aed983a450	gfx1	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Intel 8086	9545454
cpu	mb:dma8237	AM9517A	4772727
audio	mb:mono	Speaker
audio	mb:speaker	Filtered DAC
audio	sn76496	NCR8496	3579545
audio	isa_fdc:fdc_xt:fdc:0:35dd:flopsndout	Speaker
audio	isa_fdc:fdc_xt:fdc:0:35dd:floppysound	Floppy sound	44100

softwarelist

tag	name	status	filter
disk_list	t1000	original
pc_list	ibm5150	compatible

device_ref

tag	name
:maincpu	i8086
:pcvideo_t1000	tandy_1000x_graphics
:pcvideo_t1000:screen	screen
:pcvideo_t1000:mc6845_t1000	mc6845
:mb	t1000_mb
:mb:pit8253	pit8253
:mb:pit8253:counter0	pit_counter
:mb:pit8253:counter1	pit_counter
:mb:pit8253:counter2	pit_counter
:mb:dma8237	am9517a
:mb:pic8259	pic8259
:mb:isa	isa8
:mb:mono	speaker
:mb:speaker	speaker_sound_device
:sn76496	ncr8496
:isa_fdc	isa8_slot
:isa_fdc:fdc_xt	isa8_fdc_xt
:isa_fdc:fdc_xt:fdc	upd765a
:isa_fdc:fdc_xt:fdc:0	floppy_connector
:isa_fdc:fdc_xt:fdc:0:35dd	floppy_35_dd
:isa_fdc:fdc_xt:fdc:0:35dd:flopsndout	speaker
:isa_fdc:fdc_xt:fdc:0:35dd:floppysound	flopsnd
:isa_fdc:fdc_xt:fdc:1	floppy_connector
:lpt	pc_lpt
:lpt:centronics	centronics
:lpt:centronics:printer	centronics_printer
:lpt:centronics:printer:printer	printer_image
:lpt:cent_data_in	input_buffer
:lpt:cent_ctrl_in	input_buffer
:lpt:cent_status_in	input_buffer
:lpt:cent_data_out	output_latch
:lpt:cent_ctrl_out	output_latch
:pc_joy	pc_joy
:pc_joy:basic_joy	pc_basic_joy
:ram	ram
:disk_list	software_list
:pc_list	software_list
:pc_keyboard	at_keyb
:isa_com	isa8_slot
:isa_com:com	isa_com
:isa_com:com:uart_0	ins8250
:isa_com:com:uart_1	ins8250
:isa_com:com:serport0	rs232
:isa_com:com:serport0:logitech_mouse	rs232_mouse_hle_logitech
:isa_com:com:serport1	rs232
:nvram	nvram

sound

channels
2

ramoption

name	default
384K
640K	yes

device, instance

type	tag	interface	fixed_image	mandatory	name	briefname
floppydisk	isa_fdc:fdc_xt:fdc:0:35dd	floppy_3_5			floppydisk	flop
printout	lpt:centronics:printer:printer				printout	prin

device, extension

type	tag	interface	fixed_image	mandatory	extension_names
floppydisk	isa_fdc:fdc_xt:fdc:0:35dd	floppy_3_5			mfi, dfi, mfm, td0, imd, 86f, d77, d88, 1dd, cqm, cqi, dsk, ima, img, ufi, 360, ipf, xdf
printout	lpt:centronics:printer:printer				prn

input

players	coins	service	tilt
3		no	no

control

type	player	buttons	reverse	minimum	maximum	sensitivity	keydelta
stick	1	2	no	1	255	100	1
keyboard	1	103	no
stick	2	2	no	1	255	100	1
mouse	3	3	no	0	4095	100

port, analog

port_tag	analog_masks
:DSW0
:DSW1
:DSW2
:IN0
:isa_com:com:serport0:logitech_mouse:BTN
:isa_com:com:serport0:logitech_mouse:X	4095
:isa_com:com:serport0:logitech_mouse:Y	4095
:pc_joy:basic_joy:btn
:pc_joy:basic_joy:x1	255
:pc_joy:basic_joy:x2	255
:pc_joy:basic_joy:y1	255
:pc_joy:basic_joy:y2	255
:pc_keyboard:pc_keyboard_0
:pc_keyboard:pc_keyboard_1
:pc_keyboard:pc_keyboard_2
:pc_keyboard:pc_keyboard_3
:pc_keyboard:pc_keyboard_4
:pc_keyboard:pc_keyboard_5
:pc_keyboard:pc_keyboard_6
:pc_keyboard:pc_keyboard_7

slot, slotoption

slot_name	slotoption_name	slotoption_devname	slotoption_default
isa_fdc:fdc_xt:fdc:1	35dd	floppy_35_dd	no
isa_fdc:fdc_xt:fdc:1	525dd	floppy_525_dd	no
lpt:centronics	nlq401	nlq401	no
lpt:centronics	smartboard	centronics_smartboard	no
lpt:centronics	chessmec	centronics_chessmec	no
lpt:centronics	samdac	centronics_samdac	no
lpt:centronics	covox_stereo	covox_stereo	no
lpt:centronics	adaptator	adaptator_multitap	no
lpt:centronics	digiblst	cpcdigiblst	no
lpt:centronics	lx800	lx800	no
lpt:centronics	jx80	epson_jx80	no
lpt:centronics	ap2000	ap2000	no
lpt:centronics	ex800	ex800	no
lpt:centronics	fx80	epson_fx80	no
lpt:centronics	rx80	epson_rx80	no
lpt:centronics	mz1p16	mz1p16	no
lpt:centronics	covox	covox	no
lpt:centronics	pl80	comx_pl80	no
lpt:centronics	lx810l	lx810l	no
lpt:centronics	p72	p72	no
lpt:centronics	printer	centronics_printer	yes
pc_joy	mssw_pad	mssw_pad	no
pc_joy	magnum6_pad	magnum6_pad	no
pc_joy	basic_joy	pc_basic_joy	yes
isa_com:com:serport0	null_modem	null_modem	no
isa_com:com:serport0	terminal	serial_terminal	no
isa_com:com:serport0	msystems_mouse	rs232_mouse_hle_msystems	no
isa_com:com:serport0	sun_kbd	sunkbd_adaptor	no
isa_com:com:serport0	wheel_mouse	rs232_mouse_hle_wheel	no
isa_com:com:serport0	rotatable_mouse	rs232_mouse_hle_rotatable	no
isa_com:com:serport0	logitech_mouse	rs232_mouse_hle_logitech	yes
isa_com:com:serport0	microsoft_mouse	rs232_mouse_hle_msft	no
isa_com:com:serport1	null_modem	null_modem	no
isa_com:com:serport1	terminal	serial_terminal	no
isa_com:com:serport1	msystems_mouse	rs232_mouse_hle_msystems	no
isa_com:com:serport1	sun_kbd	sunkbd_adaptor	no
isa_com:com:serport1	wheel_mouse	rs232_mouse_hle_wheel	no
isa_com:com:serport1	rotatable_mouse	rs232_mouse_hle_rotatable	no
isa_com:com:serport1	logitech_mouse	rs232_mouse_hle_logitech	no
isa_com:com:serport1	microsoft_mouse	rs232_mouse_hle_msft	no

dipswitch

Game port enable

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Game port enable	DSW1	1

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	yes
Yes	1	no

LPT1: enable

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
LPT1: enable	DSW1	8

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	no
Yes	8	yes

COM2: enable

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
COM2: enable	DSW1	64

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	no
Yes	64	yes

COM1: enable

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
COM1: enable	DSW1	128

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	no
Yes	128	yes

HDC2 (CA00:0 port 324-327)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
HDC2 (CA00:0 port 324-327)	DSW2	4

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	no
Yes	4	yes

HDC1 (C800:0 port 320-323)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
HDC1 (C800:0 port 320-323)	DSW2	8

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	no
Yes	8	yes
