Time Scanner (set 1, System 16A, FD1089B 317-0024)

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
timescan1	sega/segas16a.cpp		no	no	no	yes	Time Scanner (set 1, System 16A, FD1089B 317-0024)	1987	Sega	timescan	timescan

snap

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1

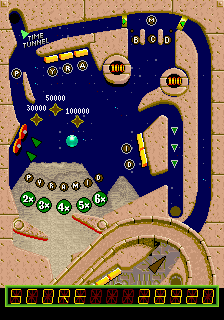

timescan1	16289	29/12/2025 11:31:47	224	320	96	96	0	Format24bppRgb	305:MAME 0.127u1 (Aug 28 2008)	c6958644948c9d25fa5c5f927a435b90867dc3e4

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	270	320	224	60.000000	5376240	342	0	320	262	0	224	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge
epr-10540a.43	32768	76848b0b	a7755898c2b3212d80034c47760440db6dcde83c	maincpu	0	good	no
epr-10537a.26	32768	4ddc434a	54908654f1445f2d3a3b1496015f3347ad603225	maincpu	1	good	no
epr-10541.42	32768	cc6d945e	0ace2a8fddc27da4c8c3efb16f245f6325f02ed5	maincpu	10000	good	no
epr-10538.25	32768	68379473	7f6e0b3fb29ef5dd1023625ef7a7270fc230d40f	maincpu	10001	good	no
epr-10542.41	32768	10217dfa	845ea0483dca0aae042da52fbd7bc07e7e2f026d	maincpu	20000	good	no
epr-10539.24	32768	10943b2e	a297ed455062a3d39b9eecfe2b92474d47ce758f	maincpu	20001	good	no
epr-10543.95	32768	07dccc37	544cc6a3b3ef64727ecf5098b84ade2dd5330614	gfx1	0	good	no	epr-10543.b9
epr-10544.94	32768	84fb9a3a	efde54cc9582f68e58cae05f717a4fc8f620c0fc	gfx1	8000	good	no	epr-10544.b10
epr-10545.93	32768	c8694bc0	e48fc349ef454ded86141937f70b006e64da6b6b	gfx1	10000	good	no	epr-10545.b11
epr-10548.10	32768	aa150735	b6e6ff9229c641e196fc7a0a2cf7aa362f554676	sprites	1	good	no	epr-10548.b1
epr-10552.11	32768	6fcbb9f7	0a0fab930477d8b79e500263bbc80d3bf73778f8	sprites	0	good	no	epr-10552.b5
epr-10549.17	32768	2f59f067	1fb64cce2f98ddcb5ecb662e63ea636a8da08bcd	sprites	10001	good	no	epr-10549.b2
epr-10553.18	32768	8a220a9f	c17547d85721fa19e5f445b5be30b3fbf5e8cc6e	sprites	10000	good	no	epr-10553.b6
epr-10550.23	32768	f05069ff	bd95761036c2fad8ddf4e169d899b173822ee4b0	sprites	20001	good	no	epr-10550.b3
epr-10554.24	32768	dc64f809	ea85eefa98ec55e9e872940821a959ff4eb1bd1c	sprites	20000	good	no	epr-10554.b7
epr-10551.29	32768	435d811f	b28eb09620113cd7578387c4d96029f2acb8ec06	sprites	30001	good	no	epr-10551.b4
epr-10555.30	32768	2143c471	d413aa216349ddf773a39d2826c3a940b4149229	sprites	30000	good	no	epr-10555.b8
epr-10546.12	32768	1ebee5cc	5e24ee25e770068a1292e657307cf53f6a8ae1c9	soundcpu	0	good	no
7751.bin	1024	6a9534fc	67ad94674db5c2aab75785668f610f6f4eccd158	upd7751	0	good	no
epr-10547.1	32768	d24ffc4b	3b250e1f026664f7a37f65d1c1a07381e88f11e8	upd7751data	0	good	no
317-0024.key	8192	dcd41d24	2bd96bc7467ad40f4d981d767f9685ec142d6d87	maincpu:key	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Hitachi FD1089B Encrypted CPU	10000000
cpu	soundcpu	Zilog Z80	4000000
cpu	upd7751	NEC uPD7751	6000000
audio	speaker	Speaker
audio	ymsnd	YM2151 OPM	4000000
audio	dac	8-Bit R-2R DAC

device_ref

tag	name
:maincpu	fd1089b
:soundcpu	z80
:upd7751	upd7751
:upd7751_8243	i8243
:nvram	nvram
:watchdog	watchdog
:i8255	i8255
:screen	screen
:sprites	sega_sys16a_sprite
:segaic16vid	segaic16_video
:gfxdecode	gfxdecode
:palette	palette
:speaker	speaker
:soundlatch	generic_latch_8
:ymsnd	ym2151
:dac	dac_8bit_r2r

sound

channels
1

input

players	coins	service	tilt
2	2	yes	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
joy	1	3	5 (half8)	no
joy	2	3	5 (half8)	no

port, analog

port_tag	analog_masks
:DSW1
:DSW2
:P1
:P2
:SERVICE
:UNUSED

dipswitch

Coin A

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin A	DSW1	15

location

name	number	inverted
SW1	1	no
SW1	2	no
SW1	3	no
SW1	4	no

value

name	value	default
4 Coins/1 Credit	7	no
3 Coins/1 Credit	8	no
2 Coins/1 Credit	9	no
2 Coins/1 Credit, 5/3, 6/4	5	no
2 Coins/1 Credit, 4/3	4	no
1 Coin/1 Credit	15	yes
1 Coin/1 Credit, 5/6	3	no
1 Coin/1 Credit, 4/5	2	no
1 Coin/1 Credit, 2/3	1	no
3 Coins/4 Credits	6	no
1 Coin/2 Credits	14	no
1 Coin/3 Credits	13	no
1 Coin/4 Credits	12	no
1 Coin/5 Credits	11	no
1 Coin/6 Credits	10	no
Free Play (if Coin B too) or 1/1	0	no

Coin B

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin B	DSW1	240

location

name	number	inverted
SW1	5	no
SW1	6	no
SW1	7	no
SW1	8	no

value

name	value	default
4 Coins/1 Credit	112	no
3 Coins/1 Credit	128	no
2 Coins/1 Credit	144	no
2 Coins/1 Credit, 5/3, 6/4	80	no
2 Coins/1 Credit, 4/3	64	no
1 Coin/1 Credit	240	yes
1 Coin/1 Credit, 5/6	48	no
1 Coin/1 Credit, 4/5	32	no
1 Coin/1 Credit, 2/3	16	no
3 Coins/4 Credits	96	no
1 Coin/2 Credits	224	no
1 Coin/3 Credits	208	no
1 Coin/4 Credits	192	no
1 Coin/5 Credits	176	no
1 Coin/6 Credits	160	no
Free Play (if Coin A too) or 1/1	0	no

Cabinet

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Cabinet	DSW2	1

location

name	number	inverted
SW2	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Upright	1	yes
Cocktail	0	no

Extended Score

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Extended Score	DSW2	30

location

name	number	inverted
SW2	2	no
SW2	3	no
SW2	4	no
SW2	5	no

value

name	value	default
Credit 1000000/2000000	22	no
Credit 1200000/2500000	20	no
Credit 1500000/3000000	18	no
Credit 2000000/4000000	16	no
Credit 1000000	28	no
Credit 1200000	30	yes
Credit 1500000	26	no
Credit 1800000	24	no
Ball 100000	14	no
Ball 200000	12	no
Ball 300000	10	no
Ball 400000	8	no
Ball 500000	6	no
Ball 600000	4	no
Ball 700000	2	no
None	0	no

Number Match

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Number Match	DSW2	32

location

name	number	inverted
SW2	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	no
Yes	32	yes

Pin Rebound

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Pin Rebound	DSW2	64

location

name	number	inverted
SW2	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Well	64	yes
A Little	0	no

Lives

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Lives	DSW2	128

location

name	number	inverted
SW2	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
3	128	yes
5	0	no

Flip Screen

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Flip Screen	UNUSED	1

location

name	number	inverted
SWE	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	1	yes
On	0	no

Out Lane Pin

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Out Lane Pin	UNUSED	2

location

name	number	inverted
SWE	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Near	2	yes
Far	0	no

Special

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Special	UNUSED	12

location

name	number	inverted
SWE	3	no
SWE	4	no

value

name	value	default
3 Credits	8	no
2 Credits	12	yes
1 Credit	4	no
2000000 Points	0	no

Allow Continue

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Allow Continue	UNUSED	16

location

name	number	inverted
SWE	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	no
Yes	16	yes

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	UNUSED	32

location

name	number	inverted
SWE	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	UNUSED	64

location

name	number	inverted
SWE	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	64	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	UNUSED	128

location

name	number	inverted
SWE	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	yes
On	0	no
