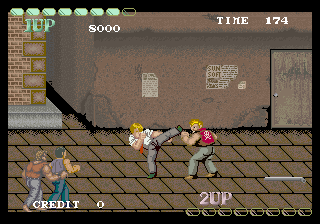

Tough Turf (set 2, Japan) (8751 317-0104) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Machines: 48893 - rom: 364836 - disk: 1378

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
tturf	sega/segas16b.cpp		no	no	no	yes	Tough Turf (set 2, Japan) (8751 317-0104)	1989	Sega / Sunsoft

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	320	224	60.054389	6293700	400	0	320	262	0	224	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
epr-12327.a7	131072	0376c593	3057828b16ee3b7cbb57a76047eecf74d1d8b465	maincpu	0	good	no
epr-12326.a5	131072	f998862b	69902ab0162eb42e1d6a9792651a5d41cb77477d	maincpu	1	good	no
opr-12268.a14	65536	e0dac07f	c7f6de42eb93a8f34afdc300628735b5f40a34c2	gfx1	0	good	no
opr-12269.a15	65536	457a8790	b701e1a1745cefb31083c8a3daa3b23181f89576	gfx1	10000	good	no
opr-12270.a16	65536	69fc025b	20be1242de27f1b997d43890051cc5d5ac8a127a	gfx1	20000	good	no
opr-12279.b1	65536	7a169fb1	1ec6da0d2cfcf727e61f61c847fd8b975b64f944	sprites	1	good	no
opr-12283.b5	65536	ae0fa085	ae9af92d4dd0c8a0f064d24e647522b588fbd7f7	sprites	0	good	no
opr-12278.b2	65536	961d06b7	b1a9dea63785bfa2c0e7b931387b91dfcd27d79b	sprites	40001	good	no
opr-12282.b6	65536	e8671ee1	a3732938c370f1936d867aae9c3d1e9bbfb57ede	sprites	40000	good	no
opr-12277.b3	65536	f16b6ba2	00cc04c7b5aad82d51d2d252e1e57bcdc5e2c9e3	sprites	80001	good	no
opr-12281.b7	65536	1ef1077f	8ce6fd7d32a20b93b3f91aaa43fe22720da7236f	sprites	80000	good	no
opr-12276.b4	65536	838bd71f	82d9d127438f5e1906b1cf40bf3b4727f2ee5685	sprites	c0001	good	no
opr-12280.b8	65536	639a57cb	84fd8b96758d38f9e1ba1a3c2cf8099ec0452784	sprites	c0000	good	no
epr-12328.a10	32768	13a346de	4e8cb12b7936c4c5d8ebc9ba563099ac2056ee60	soundcpu	0	good	no
opr-12329.a11	65536	ed9a686d	da433033d501ee871429ee676b3972b14179df9f	soundcpu	10000	good	no
opr-12330.a12	65536	fb762bca	ff9191c5ec38c711ebb7c2ad043f62b6d7e2203c	soundcpu	30000	good	no
317-0104.c2	4096			mcu	0	nodump	no
315-5298.b9	235	39b47212	432b47aee5ecbf08a8a6dc2f8379c816feb86328	plds	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Motorola MC68000	10000000
cpu	soundcpu	Zilog Z80	5000000
cpu	mcu	Intel 8751	8000000
audio	mono	Speaker
audio	ym2151	YM2151 OPM	4000000
audio	upd	NEC uPD7759	640000
audio	netlist	Netlist Sound Device

device_ref

name
m68000
z80
nvram
sega_315_5195
gfxdecode
palette
screen
sega_sys16b_sprite
segaic16_video
speaker
ym2151
upd7759
netlist_sound
nl_stream_in
nl_stream_in
nl_stream_in
nl_stream_out
i8751

sound

channels
1

input

players	coins	service	tilt
2	2	yes	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
joy	1	3	8	no
joy	2	3	8	no

port, analog

port_tag	analog_masks
:DSW1
:DSW2
:P1
:P2
:SERVICE
:UNUSED

dipswitch

Coin A

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin A	DSW1	15

location

name	number	inverted
SW1	1	no
SW1	2	no
SW1	3	no
SW1	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
4 Coins/1 Credit	7	no
3 Coins/1 Credit	8	no
2 Coins/1 Credit	9	no
2 Coins/1 Credit, 5/3, 6/4	5	no
2 Coins/1 Credit, 4/3	4	no
1 Coin/1 Credit	15	yes
1 Coin/1 Credit, 5/6	3	no
1 Coin/1 Credit, 4/5	2	no
1 Coin/1 Credit, 2/3	1	no
2 Coins/3 Credits	6	no
1 Coin/2 Credits	14	no
1 Coin/3 Credits	13	no
1 Coin/4 Credits	12	no
1 Coin/5 Credits	11	no
1 Coin/6 Credits	10	no
Free Play (if Coin B too) or 1/1	0	no

Coin B

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin B	DSW1	240

location

name	number	inverted
SW1	5	no
SW1	6	no
SW1	7	no
SW1	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
4 Coins/1 Credit	112	no
3 Coins/1 Credit	128	no
2 Coins/1 Credit	144	no
2 Coins/1 Credit, 5/3, 6/4	80	no
2 Coins/1 Credit, 4/3	64	no
1 Coin/1 Credit	240	yes
1 Coin/1 Credit, 5/6	48	no
1 Coin/1 Credit, 4/5	32	no
1 Coin/1 Credit, 2/3	16	no
2 Coins/3 Credits	96	no
1 Coin/2 Credits	224	no
1 Coin/3 Credits	208	no
1 Coin/4 Credits	192	no
1 Coin/5 Credits	176	no
1 Coin/6 Credits	160	no
Free Play (if Coin A too) or 1/1	0	no

Continues

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Continues	DSW2	3

location

name	number	inverted
SW2	1	no
SW2	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
None	0	yes
3	1	no
Unlimited	2	no
Unlimited	3	no

Difficulty

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Difficulty	DSW2	12

location

name	number	inverted
SW2	3	no
SW2	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Easy	8	no
Normal	12	yes
Hard	4	no
Hardest	0	no

Starting Energy

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Starting Energy	DSW2	48

location

name	number	inverted
SW2	5	no
SW2	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
3	0	no
4	16	no
6	32	yes
8	48	no

Demo Sounds

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Demo Sounds	DSW2	64

location

name	number	inverted
SW2	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	64	no
On	0	yes

Bonus Energy

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Bonus Energy	DSW2	128

location

name	number	inverted
SW2	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1	128	no
2	0	yes
