Tough Turf (set 1, US) (8751 317-0099)

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
tturfu	sega/segas16b.cpp		no	no	no	yes	Tough Turf (set 1, US) (8751 317-0099)	1989	Sega / Sunsoft	tturf	tturf

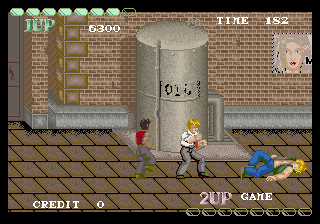

snap

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
tturfu	16449	29/12/2025 11:31:48	320	224	96	96	0	Format24bppRgb	305:MAME 0.126u4 (Aug 7 2008)	2f59607b17c262983a673aa72feb98a6dab1266d

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	320	224	60.054389	6293700	400	0	320	262	0	224	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge
epr-12266.a4	65536	f549def8	9e913509d46274bd192455321904ec9884b5f629	maincpu	0	good	no
epr-12264.a1	65536	f7cdb289	9c386cf33a96a977c623c2f243db38fda2c41ba4	maincpu	1	good	no
epr-12267.a5	65536	3c3ce191	036ece2be585a85e05c047fe4a1ab3b6814c3490	maincpu	20000	good	no
epr-12265.a2	65536	8cdadd9a	a17852f0eb8f63a82ff44cbeb100da72fe5890e0	maincpu	20001	good	no
epr-12268.b9	65536	e0dac07f	c7f6de42eb93a8f34afdc300628735b5f40a34c2	tiles	0	good	no	opr-12268.a14
epr-12269.b10	65536	457a8790	b701e1a1745cefb31083c8a3daa3b23181f89576	tiles	10000	good	no	opr-12269.a15
epr-12270.b11	65536	69fc025b	20be1242de27f1b997d43890051cc5d5ac8a127a	tiles	20000	good	no	opr-12270.a16
epr-12276.b1	65536	838bd71f	82d9d127438f5e1906b1cf40bf3b4727f2ee5685	sprites	1	good	no	opr-12276.b4
epr-12280.b5	65536	639a57cb	84fd8b96758d38f9e1ba1a3c2cf8099ec0452784	sprites	0	good	no	opr-12280.b8
epr-12277.b2	65536	f16b6ba2	00cc04c7b5aad82d51d2d252e1e57bcdc5e2c9e3	sprites	20001	good	no	opr-12277.b3
epr-12281.b6	65536	1ef1077f	8ce6fd7d32a20b93b3f91aaa43fe22720da7236f	sprites	20000	good	no	opr-12281.b7
epr-12278.b3	65536	961d06b7	b1a9dea63785bfa2c0e7b931387b91dfcd27d79b	sprites	40001	good	no	opr-12278.b2
epr-12282.b7	65536	e8671ee1	a3732938c370f1936d867aae9c3d1e9bbfb57ede	sprites	40000	good	no	opr-12282.b6
epr-12279.b4	65536	7a169fb1	1ec6da0d2cfcf727e61f61c847fd8b975b64f944	sprites	60001	good	no	opr-12279.b1
epr-12283.b8	65536	ae0fa085	ae9af92d4dd0c8a0f064d24e647522b588fbd7f7	sprites	60000	good	no	opr-12283.b5
epr-12271.a7	32768	99671e52	ab21b7e7a449c8081b5db1fdb579071e31b6852c	soundcpu	0	good	no
epr-12272.a8	32768	7cf7e69f	62c9f75db8e2b4ece517167ba5c0712bac5f1d95	soundcpu	10000	good	no
epr-12273.a9	32768	28f0bb8b	d99aff57d213b10ac10c37ceff2f125875816488	soundcpu	20000	good	no
epr-12274.a10	32768	8207f0c4	169914861a52fa731a305e1ee2d230aa0d0d97fe	soundcpu	30000	good	no
epr-12275.a11	32768	182f3c3d	1482fe08a05a721e315b1a3aa5bef4dddc72e26e	soundcpu	40000	good	no
317-0099.c2	4096	f676e3e4	b71bad46c8b5f7328fd8d48f18624a620f0d34ce	mcu	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Motorola MC68000	10000000
cpu	soundcpu	Zilog Z80	5000000
cpu	mcu	Intel 8751	8000000
audio	mono	Speaker
audio	ym2151	YM2151 OPM	4000000
audio	upd	NEC uPD7759	640000
audio	netlist	Netlist Sound Device

device_ref

tag	name
:maincpu	m68000
:soundcpu	z80
:nvram	nvram
:mapper	sega_315_5195
:gfxdecode	gfxdecode
:palette	palette
:screen	screen
:sprites	sega_sys16b_sprite
:segaic16vid	segaic16_video
:mono	speaker
:ym2151	ym2151
:upd	upd7759
:netlist	netlist_sound
:netlist:cin0	nl_stream_in
:netlist:cin1	nl_stream_in
:netlist:cin2	nl_stream_in
:netlist:cout0	nl_stream_out
:mcu	i8751

sound

channels
1

input

players	coins	service	tilt
2	2	yes	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
joy	1	3	8	no
joy	2	3	8	no

port, analog

port_tag	analog_masks
:DSW1
:DSW2
:P1
:P2
:SERVICE
:UNUSED

dipswitch

Coin A

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin A	DSW1	15

location

name	number	inverted
SW1	1	no
SW1	2	no
SW1	3	no
SW1	4	no

value

name	value	default
4 Coins/1 Credit	7	no
3 Coins/1 Credit	8	no
2 Coins/1 Credit	9	no
2 Coins/1 Credit, 5/3, 6/4	5	no
2 Coins/1 Credit, 4/3	4	no
1 Coin/1 Credit	15	yes
1 Coin/1 Credit, 5/6	3	no
1 Coin/1 Credit, 4/5	2	no
1 Coin/1 Credit, 2/3	1	no
3 Coins/4 Credits	6	no
1 Coin/2 Credits	14	no
1 Coin/3 Credits	13	no
1 Coin/4 Credits	12	no
1 Coin/5 Credits	11	no
1 Coin/6 Credits	10	no
Free Play (if Coin B too) or 1/1	0	no

Coin B

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin B	DSW1	240

location

name	number	inverted
SW1	5	no
SW1	6	no
SW1	7	no
SW1	8	no

value

name	value	default
4 Coins/1 Credit	112	no
3 Coins/1 Credit	128	no
2 Coins/1 Credit	144	no
2 Coins/1 Credit, 5/3, 6/4	80	no
2 Coins/1 Credit, 4/3	64	no
1 Coin/1 Credit	240	yes
1 Coin/1 Credit, 5/6	48	no
1 Coin/1 Credit, 4/5	32	no
1 Coin/1 Credit, 2/3	16	no
3 Coins/4 Credits	96	no
1 Coin/2 Credits	224	no
1 Coin/3 Credits	208	no
1 Coin/4 Credits	192	no
1 Coin/5 Credits	176	no
1 Coin/6 Credits	160	no
Free Play (if Coin A too) or 1/1	0	no

Continues

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Continues	DSW2	3

location

name	number	inverted
SW2	1	no
SW2	2	no

value

name	value	default
None	0	yes
3	1	no
Unlimited	2	no
Unlimited	3	no

Difficulty

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Difficulty	DSW2	12

location

name	number	inverted
SW2	3	no
SW2	4	no

value

name	value	default
Easy	8	no
Normal	12	yes
Hard	4	no
Hardest	0	no

Starting Energy

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Starting Energy	DSW2	48

location

name	number	inverted
SW2	5	no
SW2	6	no

value

name	value	default
3	0	no
4	16	no
6	32	yes
8	48	no

Demo Sounds

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Demo Sounds	DSW2	64

location

name	number	inverted
SW2	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	64	no
On	0	yes

Bonus Energy

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Bonus Energy	DSW2	128

location

name	number	inverted
SW2	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1	128	no
2	0	yes
