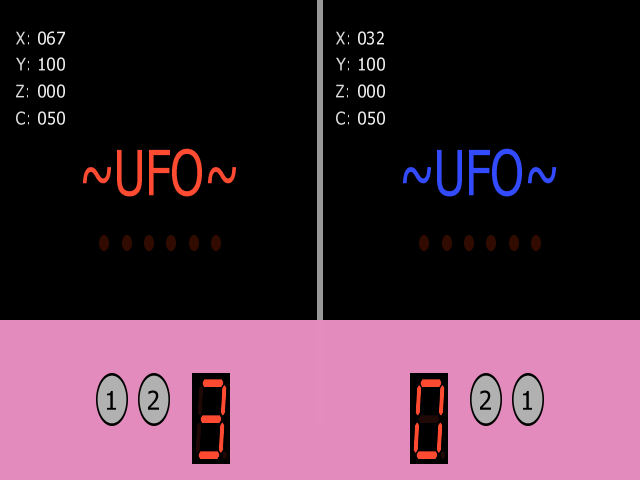

UFO Catcher 21 - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Machines: 48893 - rom: 364836 - disk: 1378

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
ufo21	sega/segaufo.cpp		no	no	yes	yes	UFO Catcher 21	1996	Sega

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
epr-19063a.ic33	65536	2e13e3e9	6908f7db79c1a1da4ebc0456afc50ff18f2e8cf3	maincpu	0	good	no
epr-19064.ic32	262144	ab62c1f0	8791a88546ae69e710e128ffc2ea6e9b464f0631	upd	0	good	no
315-5766.ic40.jed	857	cb7a531f	ef80f2701781a180e9087ca52c887d96a23127cc	gals	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Zilog Z80	8000000
audio	mono	Speaker
audio	ym	YM3438 OPN2C	8000000
audio	upd	NEC uPD7759	640000

device_ref

name
z80
315_5296
315_5296
pit8254
pit_counter
pit_counter
pit_counter
speaker
ym3438
315_5338a
upd7759

sound

channels
1

input

players	coins	service	tilt
2	2	yes	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
only_buttons	1	2		no
only_buttons	2	2		no

port, analog

port_tag	analog_masks
:DSW1
:DSW2
:IN1
:IN2

dipswitch

Coin A

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin A	DSW1	15

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
4 Coins/1 Credit	5	no
3 Coins/1 Credit	8	no
3 Coins/1 Credit, 5 Coins/2 Credits	3	no
2 Coins/1 Credit	10	no
2 Coins/1 Credit, 5 Coins/3 Credits	2	no
2 Coins/1 Credit, 3 Coins/2 Credits	7	no
1 Coin/1 Credit	15	yes
1 Coin/1 Credit, 5 Coins/6 Credits	1	no
1 Coin/1 Credit, 4 Coins/5 Credits	4	no
1 Coin/1 Credit, 3 Coins/4 Credits	6	no
1 Coin/1 Credit, 2 Coins/3 Credits	9	no
1 Coin/2 Credits	14	no
1 Coin/3 Credits	13	no
1 Coin/5 Credits	12	no
1 Coin/6 Credits	11	no
Free Play	0	no

Coin B

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin B	DSW1	240

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
4 Coins/1 Credit	80	no
3 Coins/1 Credit	128	no
3 Coins/1 Credit, 5 Coins/2 Credits	48	no
2 Coins/1 Credit	160	no
2 Coins/1 Credit, 5 Coins/3 Credits	32	no
2 Coins/1 Credit, 3 Coins/2 Credits	112	no
1 Coin/1 Credit	240	yes
1 Coin/1 Credit, 5 Coins/6 Credits	16	no
1 Coin/1 Credit, 4 Coins/5 Credits	64	no
1 Coin/1 Credit, 3 Coins/4 Credits	96	no
1 Coin/1 Credit, 2 Coins/3 Credits	144	no
1 Coin/2 Credits	224	no
1 Coin/3 Credits	208	no
1 Coin/5 Credits	192	no
1 Coin/6 Credits	176	no
Free Play	0	no

UNK2-01

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
UNK2-01	DSW2	1

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	1	yes
On	0	no

UNK2-02

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
UNK2-02	DSW2	2

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2	yes
On	0	no

Advertise BGM CHRISTMAS

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Advertise BGM CHRISTMAS	DSW2	4

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	4	yes
On	0	no

Advertise BGM NORMAL

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Advertise BGM NORMAL	DSW2	8

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	8	yes
On	0	no

TIME ATTACK 1

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
TIME ATTACK 1	DSW2	16

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	16	yes
On	0	no

TIME ATTACK 2

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
TIME ATTACK 2	DSW2	32

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32	yes
On	0	no

TIME ATTACK 3

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
TIME ATTACK 3	DSW2	64

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	64	yes
On	0	no

UNK2-80

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
UNK2-80	DSW2	128

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	yes
On	0	no
