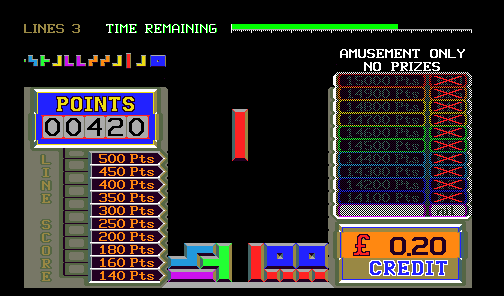

Blox (SJM BLOX, 50p/20p Play, Version 2.0) (Datapak) (MPU4 Video) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Machines: 48893 - rom: 364836 - disk: 1378

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
v4bloxd	barcrest/mpu4vid.cpp		no	no	no	yes	Blox (SJM BLOX, 50p/20p Play, Version 2.0) (Datapak) (MPU4 Video)	1990	BWB / Barcrest	v4blox	v4blox

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	504	296	49.920128	10000000	640	0	504	313	0	296	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
imperfect	good	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge
blxv_d_2.0_0	16384	2e0891e1	3e8ffd0d41227a8a1e311ca0c0bde7590e06dfbd	maincpu	0	good	no
blxv___2.0_1	65536	68134eda	b324ae1243164c7be7f5eced7ff93760e2176a4e	video	0	good	no	blxv___2.0_1
blxv___2.0_2	65536	6b1f8588	e8a443f062555f1ed228e1bfed2031927bcd7015	video	1	good	no	blxv___2.0_2
blxv___2.0_3	65536	c62d704b	bea0c9519063f1601f70372ccb49fb892fbd6e76	video	20000	good	no	blxv___2.0_3
blxv___2.0_4	65536	e431471a	cf90dc48be3bc5e3c5a8efea5818dbc15fa442e9	video	20001	good	no	blxv___2.0_4
blxv___2.0_5	65536	98ac6bc7	9575014ba21fa4330138a34f53e13d30d312bc8b	video	40000	good	no	blxv___2.0_5
blxv___2.0_6	65536	a3d92b5b	1e7042d5eae4a19a01a3ef7d806c434886dc9f4d	video	40001	good	no	blxv___2.0_6

chip

type	tag	name	clock
cpu	maincpu	Motorola MC6809	6880000
cpu	video	Motorola MC68000	10000000
audio	ay8913	AY-3-8913 PSG	1720000
audio	mono	Speaker
audio	alarmdac	1-Bit DAC
audio	speaker	Speaker
audio	saa	Philips SAA1099	8000000

device_ref

name
mc6809
ay8913
nvram
timer
msc1937
ptm6840
pia6821
pia6821
pia6821
pia6821
pia6821
pia6821
meters
bacta_datalogger
coin_hopper
speaker
dac
screen
gfxdecode
scn2674
m68000
palette
ef9369
ptm6840
speaker
saa1099
acia6850
acia6850

sound

channels
2

feature

type	status	overall
graphics	imperfect
sound	imperfect

input

players	coins	service	tilt
1	5	yes	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
joy		2	5 (half8)	no

port, analog

port_tag	analog_masks
:AUX1
:AUX2
:BLACK1
:BLACK2
:DIL1
:DIL2
:ORANGE1
:ORANGE2

dipswitch

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DIL1	1

location

name	number	inverted
DIL1	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	1	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DIL1	2

location

name	number	inverted
DIL1	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	2	no

High Token Payout Proportion

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
High Token Payout Proportion	DIL1	4

location

name	number	inverted
DIL1	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	yes
Yes	4	no

Low Token Payout Proportion

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Low Token Payout Proportion	DIL1	8

location

name	number	inverted
DIL1	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	yes
Yes	8	no

Target Percentage (if key not fitted)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Target Percentage (if key not fitted)	DIL1	240

location

name	number	inverted
DIL1	5	no
DIL1	6	no
DIL1	7	no
DIL1	8	no

value

name	value	default
Unset (Program Optimum)	0	yes
70	16	no
72	32	no
74	48	no
76	64	no
78	80	no
80	96	no
82	112	no
84	128	no
86	144	no
88	160	no
90	176	no
92	192	no
94	208	no
96	224	no
98	240	no

Coin Alarm Inhibit

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin Alarm Inhibit	DIL2	1

location

name	number	inverted
DIL2	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	1	no

Allow Multiple Credits

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Allow Multiple Credits	DIL2	2

location

name	number	inverted
DIL2	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Yes	0	yes
No	2	no

Demo Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Demo Mode	DIL2	4

location

name	number	inverted
DIL2	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Continuous	0	yes
Cancelled @5min	4	no

Odd 10p

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Odd 10p	DIL2	8

location

name	number	inverted
DIL2	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Lost @2min	0	yes
Never Lost	8	no

DIL205

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
DIL205	DIL2	16

location

name	number	inverted
DIL2	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	16	no

DIL205

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
DIL205	DIL2	32

location

name	number	inverted
DIL2	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	32	no

DIL207

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
DIL207	DIL2	64

location

name	number	inverted
DIL2	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	64	no

Clear MPU Memory

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Clear MPU Memory	DIL2	128

location

name	number	inverted
DIL2	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	yes
Yes	128	no
