The Crystal Maze Team Challenge (v0.9) (MPU4 Video)

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
v4cmaze3	barcrest/mpu4vid.cpp		no	no	no	yes	The Crystal Maze Team Challenge (v0.9) (MPU4 Video)	1994	Barcrest		v4bios

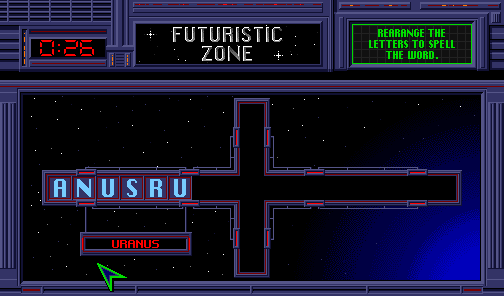

snap

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
v4cmaze3	10786	29/12/2025 11:31:48	504	296	96	96	0	Format24bppRgb	305:MAME 0.143u1 (Jul 11 2011)	08edadd67499655716af62b90de2c783a3e8e022

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	504	296	49.920128	10000000	640	0	504	313	0	296	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
imperfect	good	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge
vid.p1	65536	e996bc18	49798165640627eb31024319353da04380787b10	maincpu	0	good	no	vid.p1
cm3.p1	524288	2d2edee5	0281ec97aaaaf4c7969340bd5995ac1541dbad54	video	0	good	no
cm3.p2	524288	c223d7b9	da9d730716a30d0e93f2a02c1efa7f19457ae010	video	1	good	no
cm3.p3	524288	2959c77b	8de533bfad48ad19a635dddcafa2a0825133b4de	video	100000	good	no
cm3.p4	524288	b7873e9a	a71fac883e02d5f49aee0a20f92dbdb00640ce8d	video	100001	good	no
cm3.p5	524288	c8375070	da2ba6591d8765f896c40d6526da8e945d02a182	video	200000	good	no
cm3.p6	524288	1ea36938	43f62935b21232d23f662e1e124663267edb1283	video	200001	good	no
cm3.p7	524288	9de3802e	ec792f115a0708d68046ba0beb314b7e1f1eb422	video	300000	good	no
cm3.p8	524288	1e6e60b0	5e71714747073dd89852a84585642388ee440325	video	300001	good	no
cm3.p9	524288	bfba55a7	22eb9b1f9fe83d3b424fd521b68e2976a1940df9	video	400000	good	no
cm3.p10	524288	07edda81	e94525be03f30e407051992925bb0d693f3d809b	video	400001	good	no

chip

type	tag	name	clock
cpu	maincpu	Motorola MC6809	6880000
cpu	video	Motorola MC68000	10000000
audio	ay8913	AY-3-8913 PSG	1720000
audio	mono	Speaker
audio	alarmdac	1-Bit DAC
audio	speaker	Speaker
audio	saa	Philips SAA1099	8000000

device_ref

tag	name
:maincpu	mc6809
:ay8913	ay8913
:nvram	nvram
:50hz	timer
:vfd	msc1937
:ptm_ic2	ptm6840
:pia_ic3	pia6821
:pia_ic4	pia6821
:pia_ic5	pia6821
:pia_ic6	pia6821
:pia_ic7	pia6821
:pia_ic8	pia6821
:meters	meters
:dataport	bacta_datalogger
:hopper	coin_hopper
:mono	speaker
:alarmdac	dac
:screen	screen
:gfxdecode	gfxdecode
:scn2674_vid	scn2674
:video	m68000
:palette	palette
:ef9369	ef9369
:6840ptm_68k	ptm6840
:speaker	speaker
:saa	saa1099
:acia6850_0	acia6850
:acia6850_1	acia6850
:characteriser	mpu4chrpal

sound

channels
2

feature

type	status	overall
graphics	imperfect
sound	imperfect

input

players	coins	service	tilt
1	4	yes	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
trackball		5		no	0	255	50	10

port, analog

port_tag	analog_masks
:AUX1
:AUX2
:BLACK1
:BLACK2
:DIL1
:DIL2
:ORANGE1
:ORANGE2
:TRACKX	255
:TRACKY	255
:hopper:TEST

dipswitch

1 Pound for change

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
1 Pound for change	DIL2	1

location

name	number	inverted
DIL2	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	1	no

DIL202

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
DIL202	DIL2	2

location

name	number	inverted
DIL2	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	2	no

DIL203

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
DIL203	DIL2	4

location

name	number	inverted
DIL2	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	4	no

Attract mode inhibit

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Attract mode inhibit	DIL2	8

location

name	number	inverted
DIL2	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	8	no

DIL205

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
DIL205	DIL2	16

location

name	number	inverted
DIL2	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	16	no

Coin alarm inhibit

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin alarm inhibit	DIL2	32

location

name	number	inverted
DIL2	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	32	no

DIL207

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
DIL207	DIL2	64

location

name	number	inverted
DIL2	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	64	no

Single coin entry

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Single coin entry	DIL2	128

location

name	number	inverted
DIL2	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	128	no

clones

name	description
v4cmaze3c	The Crystal Maze Team Challenge (v0.6) (MPU4 Video)
v4cmaze3b	The Crystal Maze Team Challenge (v0.8) (MPU4 Video)
v4cmaze3d	The Crystal Maze Team Challenge (v0.9, Datapak) (MPU4 Video)
v4cmaze3_amld	The Crystal Maze Team Challenge (v1.2, AMLD) (MPU4 Video)
