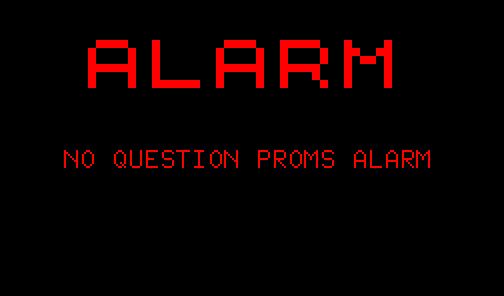

Ten Quid Grid (v1.2) (MPU4 Video) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Machines: 48893 - rom: 364836 - disk: 1378

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
v4quidgr	barcrest/mpu4vid.cpp		no	no	no	yes	Ten Quid Grid (v1.2) (MPU4 Video)	199?	Barcrest		v4bios

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	504	296	49.920128	10000000	640	0	504	313	0	296	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge
vid.p1	65536	e996bc18	49798165640627eb31024319353da04380787b10	maincpu	0	good	no	vid.p1
qgs.p1	65536	e6d072a9	b2d656818c2fb12a26ef8a170152087336c00c66	video	0	good	no
qg.p2	65536	e4d74b11	d23ccc57c54823ffaa7869ca824e049dc80f8945	video	1	good	no
qg.p3	65536	5dda7cd8	246a801e862990aade98fa358477e53707714b42	video	20000	good	no
qg.p4	65536	2106cf5d	2073589775139ad92daef05a67afb2c70ece168c	video	20001	good	no
quidgrid_questions	131072			video	40000	nodump	no

chip

type	tag	name	clock
cpu	maincpu	Motorola MC6809	6880000
cpu	video	Motorola MC68000	10000000
audio	ay8913	AY-3-8913 PSG	1720000
audio	mono	Speaker
audio	alarmdac	1-Bit DAC
audio	speaker	Speaker
audio	saa	Philips SAA1099	8000000

device_ref

name
mc6809
ay8913
nvram
timer
msc1937
ptm6840
pia6821
pia6821
pia6821
pia6821
pia6821
pia6821
meters
bacta_datalogger
coin_hopper
speaker
dac
screen
gfxdecode
scn2674
m68000
palette
ef9369
ptm6840
speaker
saa1099
acia6850
acia6850
mpu4chrpal

sound

channels
2

input

players	coins	service	tilt
1	4	yes	no

port, analog

port_tag	analog_masks
:AUX1
:AUX2
:BLACK1
:BLACK2
:DIL1
:DIL2
:ORANGE1
:ORANGE2

dipswitch

1 Pound for change

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
1 Pound for change	DIL2	1

location

name	number	inverted
DIL2	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	1	no

DIL202

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
DIL202	DIL2	2

location

name	number	inverted
DIL2	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	2	no

DIL203

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
DIL203	DIL2	4

location

name	number	inverted
DIL2	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	4	no

Attract mode inhibit

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Attract mode inhibit	DIL2	8

location

name	number	inverted
DIL2	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	8	no

DIL205

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
DIL205	DIL2	16

location

name	number	inverted
DIL2	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	16	no

Coin alarm inhibit

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin alarm inhibit	DIL2	32

location

name	number	inverted
DIL2	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	32	no

DIL207

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
DIL207	DIL2	64

location

name	number	inverted
DIL2	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	64	no

Single coin entry

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Single coin entry	DIL2	128

location

name	number	inverted
DIL2	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	128	no
