Red Hot Poker (Release 3, 20p Fixed, Cash+Token) (set 1) (MPU4 Video)

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
v4redhtp	barcrest/mpu4vid.cpp		no	no	no	yes	Red Hot Poker (Release 3, 20p Fixed, Cash+Token) (set 1) (MPU4 Video)	199?	BWB

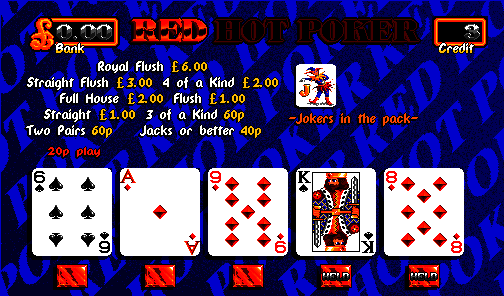

snap

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
v4redhtp	32700	29/12/2025 11:31:49	504	296	96	96	0	Format24bppRgb	305:MAME 0.234 (Jul 28 2021)	ede4b207ec5e88b0e7577abd09069d7e5c43cc17

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	504	296	49.920128	10000000	640	0	504	313	0	296	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional
rp_20s__.3_0	65536	b7d02d22	f9da1c6dde064bc39d0c48a165dac7acde933397	maincpu	0	good	no
rp______.3_1	65536	b987406d	8c4d386570c0c6298b1cabf50295021b3b0cf625	video	0	good	no
rp______.3_2	65536	73e3c12e	19e3ed7255fa0c3bfa14b6a4b705c0c3e1a237b6	video	1	good	no
rp______.3_3	65536	05a30183	302f4926073bf7335da7f0b1e6399b64ea9bbae4	video	20000	good	no
rp______.3_4	65536	6b122765	72cd0fda322790bed8cdc7697306ec01efc43789	video	20001	good	no
rp______.3_5	65536	d9fd05d0	330ef58c012b5d5fd018bea54b3ae315b3e45cfd	video	40000	good	no
rp______.3_6	65536	eeea91ff	cc7870a68f62d4dd70c13713a432a61a091821ef	video	40001	good	no

chip

type	tag	name	clock
cpu	maincpu	Motorola MC6809	6880000
cpu	video	Motorola MC68000	10000000
audio	ay8913	AY-3-8913 PSG	1720000
audio	mono	Speaker
audio	alarmdac	1-Bit DAC
audio	speaker	Speaker
audio	saa	Philips SAA1099	8000000

device_ref

tag	name
:maincpu	mc6809
:ay8913	ay8913
:nvram	nvram
:50hz	timer
:vfd	msc1937
:ptm_ic2	ptm6840
:pia_ic3	pia6821
:pia_ic4	pia6821
:pia_ic5	pia6821
:pia_ic6	pia6821
:pia_ic7	pia6821
:pia_ic8	pia6821
:meters	meters
:dataport	bacta_datalogger
:hopper	coin_hopper
:mono	speaker
:alarmdac	dac
:screen	screen
:gfxdecode	gfxdecode
:scn2674_vid	scn2674
:video	m68000
:palette	palette
:ef9369	ef9369
:6840ptm_68k	ptm6840
:speaker	speaker
:saa	saa1099
:acia6850_0	acia6850
:acia6850_1	acia6850

sound

channels
2

input

players	coins	service	tilt
1	5	yes	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
only_buttons		9		no

port, analog

port_tag	analog_masks
:AUX1
:AUX2
:BLACK1
:BLACK2
:DIL1
:DIL2
:ORANGE1
:ORANGE2
:hopper:TEST

configuration

Jackpot / Prize Key

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Jackpot / Prize Key	ORANGE2	15

setting

name	value	default
Not fitted	0	yes
3 GBP	1	no
4 GBP	2	no
5 GBP	8	no
6 GBP	3	no
6 GBP Token	4	no
8 GBP	5	no
8 GBP Token	6	no
10 GBP	7	no
15 GBP	9	no
25 GBP	10	no
25 GBP - Licensed Betting Office Profile	11	no
35 GBP	12	no
70 GBP	13	no
Reserved 0e	14	no
Reserved 0f	15	no

Percentage Key

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Percentage Key	ORANGE2	240

setting

name	value	default
Not fitted / 68% (Invalid for UK Games)	0	yes
70	16	no
72	32	no
74	48	no
76	64	no
78	80	no
80	96	no
82	112	no
84	128	no
86	144	no
88	160	no
90	176	no
92	192	no
94	208	no
96	224	no
98	240	no

dipswitch

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DIL1	1

location

name	number	inverted
DIL1	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	1	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DIL1	2

location

name	number	inverted
DIL1	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	2	no

High Token Payout Proportion

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
High Token Payout Proportion	DIL1	4

location

name	number	inverted
DIL1	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	yes
Yes	4	no

Low Token Payout Proportion

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Low Token Payout Proportion	DIL1	8

location

name	number	inverted
DIL1	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	yes
Yes	8	no

Target Percentage (if key not fitted)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Target Percentage (if key not fitted)	DIL1	240

location

name	number	inverted
DIL1	5	no
DIL1	6	no
DIL1	7	no
DIL1	8	no

value

name	value	default
Unset (Program Optimum)	0	yes
70	16	no
72	32	no
74	48	no
76	64	no
78	80	no
80	96	no
82	112	no
84	128	no
86	144	no
88	160	no
90	176	no
92	192	no
94	208	no
96	224	no
98	240	no

Clear MPU Memory

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Clear MPU Memory	DIL2	1

location

name	number	inverted
DIL2	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	yes
Yes	1	no

Enable Cash Refill

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Enable Cash Refill	DIL2	2

location

name	number	inverted
DIL2	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	yes
Yes	2	no

Inhibit Win Banking

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Inhibit Win Banking	DIL2	4

location

name	number	inverted
DIL2	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	4	no

Inhibit Attract Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Inhibit Attract Mode	DIL2	8

location

name	number	inverted
DIL2	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	8	no

Halt Payout when Empty

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Halt Payout when Empty	DIL2	16

location

name	number	inverted
DIL2	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	yes
Yes	16	no

Coin Alarm Inhibit

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin Alarm Inhibit	DIL2	32

location

name	number	inverted
DIL2	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	32	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DIL2	64

location

name	number	inverted
DIL2	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	64	no

Single Credit Entry

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Single Credit Entry	DIL2	128

location

name	number	inverted
DIL2	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	128	no

clones

name	description
v4redhtparc	Red Hot Poker (Arcade, Cash+Tokens, 1993 Awards, 20p Fixed, Version 1.9) (MPU4 Video)
v4redhtp2z	Red Hot Poker (Release 2, 1992 copyright, 20p Fixed, Cash+Token) (MPU4 Video)
v4redhtp2a	Red Hot Poker (Release 2, 1993 copryight, 5p Fixed, Cash+Token) (set 2) (MPU4 Video)
v4redhtp2d	Red Hot Poker (Release 2, 1993 copryight, 5p Fixed, Cash+Token, % Key) (set 1) (MPU4 Video)
v4redhtp2g	Red Hot Poker (Release 2, 1993 copryight, 5p Fixed, Cash+Token, % Key) (set 2) (MPU4 Video)
v4redhtp2c	Red Hot Poker (Release 2, 1993 copryight, 5p Fixed, Cash+Token, Datapak) (set 1) (MPU4 Video)
v4redhtp2f	Red Hot Poker (Release 2, 1993 copryight, 5p Fixed, Cash+Token, Datapak) (set 2) (MPU4 Video)
v4redhtp2b	Red Hot Poker (Release 2, 1993 copryight, 5p Fixed, Cash+Token, Datapak, % Key) (set 1) (MPU4 Video)
v4redhtp2e	Red Hot Poker (Release 2, 1993 copryight, 5p Fixed, Cash+Token, Datapak, % Key) (set 2) (MPU4 Video)
v4redhtp2	Red Hot Poker (Release 2, 1993 copyright, 5p Fixed, Cash+Token) (set 1) (MPU4 Video)
v4redhtpb	Red Hot Poker (Release 3, 10p Fixed, Cash+Token) (set 1) (MPU4 Video)
v4redhtpg	Red Hot Poker (Release 3, 10p Fixed, Cash+Token) (set 2) (MPU4 Video)
v4redhtpe	Red Hot Poker (Release 3, 10p Fixed, Cash+Token, % Key) (set 1) (MPU4 Video)
v4redhtpj	Red Hot Poker (Release 3, 10p Fixed, Cash+Token, % Key) (set 2) (MPU4 Video)
v4redhtpd	Red Hot Poker (Release 3, 10p Fixed, Cash+Token, Datapak) (set 1) (MPU4 Video)
v4redhtpc	Red Hot Poker (Release 3, 10p Fixed, Cash+Token, Datapak) (set 1, % Key) (MPU4 Video)
v4redhtpf	Red Hot Poker (Release 3, 10p Fixed, Cash+Token, Datapak) (set 2) (MPU4 Video)
v4redhtph	Red Hot Poker (Release 3, 10p Fixed, Cash+Token, Datapak) (set 2, % Key) (MPU4 Video)
v4redhtpi	Red Hot Poker (Release 3, 10p Fixed, Cash+Token, Datapak) (set 3) (MPU4 Video)
v4redhtpab	Red Hot Poker (Release 3, 10p Fxed, All-Cash) (MPU4 Video)
v4redhtpk	Red Hot Poker (Release 3, 20p Fixed, Cash+Token) (set 2) (MPU4 Video)
v4redhtpn	Red Hot Poker (Release 3, 20p Fixed, Cash+Token, % Key) (set 1) (MPU4 Video)
v4redhtpr	Red Hot Poker (Release 3, 20p Fixed, Cash+Token, % Key) (set 2) (MPU4 Video)
v4redhtpm	Red Hot Poker (Release 3, 20p Fixed, Cash+Token, Datapak) (set 1) (MPU4 Video)
v4redhtpo	Red Hot Poker (Release 3, 20p Fixed, Cash+Token, Datapak) (set 2) (MPU4 Video)
v4redhtpq	Red Hot Poker (Release 3, 20p Fixed, Cash+Token, Datapak) (set 3) (MPU4 Video)
v4redhtpl	Red Hot Poker (Release 3, 20p Fixed, Cash+Token, Datapak, % Key) (set 1) (MPU4 Video)
v4redhtpp	Red Hot Poker (Release 3, 20p Fixed, Cash+Token, Datapak, % Key) (set 2) (MPU4 Video)
v4redhtpa	Red Hot Poker (Release 3, 20p Switchable to 10p, All - Cash) (MPU4 Video)
v4redhtps	Red Hot Poker (Release 3, 20p Switchable to 10p, Cash+Token) (set 1) (MPU4 Video)
v4redhtpx	Red Hot Poker (Release 3, 20p Switchable to 10p, Cash+Token) (set 2) (MPU4 Video)
v4redhtpv	Red Hot Poker (Release 3, 20p Switchable to 10p, Cash+Token, % Key) (set 1) (MPU4 Video)
v4redhtpaa	Red Hot Poker (Release 3, 20p Switchable to 10p, Cash+Token, % Key) (set 2) (MPU4 Video)
v4redhtpu	Red Hot Poker (Release 3, 20p Switchable to 10p, Cash+Token, Datapak) (set 1) (MPU4 Video)
v4redhtpw	Red Hot Poker (Release 3, 20p Switchable to 10p, Cash+Token, Datapak) (set 2) (MPU4 Video)
v4redhtpz	Red Hot Poker (Release 3, 20p Switchable to 10p, Cash+Token, Datapak) (set 3) (MPU4 Video)
v4redhtpt	Red Hot Poker (Release 3, 20p Switchable to 10p, Cash+Token, Datapak, % Key) (set 1) (MPU4 Video)
v4redhtpy	Red Hot Poker (Release 3, 20p Switchable to 10p, Cash+Token, Datapak, % Key) (set 2) (MPU4 Video)
v4redhtpunk	Red Hot Poker (unknown release) (MPU4 Video)
