Red Hot Mazooma Belle (BWB) (Version 1.4, Cash+Token, 1993 Awards, 10p Fixed) (MPU4 Video)

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
v4rhmaz	barcrest/mpu4vid.cpp		no	no	no	yes	Red Hot Mazooma Belle (BWB) (Version 1.4, Cash+Token, 1993 Awards, 10p Fixed) (MPU4 Video)	199?	BWB

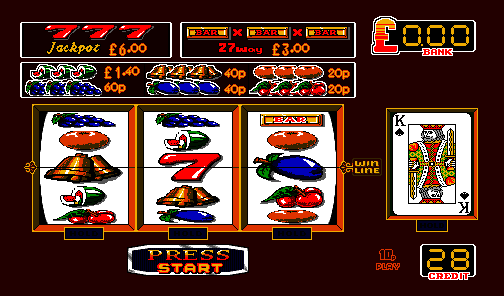

snap

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
v4rhmaz	14934	29/12/2025 11:31:49	504	296	96	96	0	Format24bppRgb	305:MAME 0.234 (Jul 28 2021)	fe86c89dcd6f187cd003220fc5c2b847f7523e9d

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	504	296	49.920128	10000000	640	0	504	313	0	296	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional
rm_10___.4_0	65536	5e9b282e	d40744ae4cb36e49398f2f2e91274f9a1ecbe018	maincpu	0	good	no
rm______.4_1	65536	51af0692	74e52d63adeaaa1f0949dad60f5d4ca1635d2261	video	0	good	no
rm______.4_2	65536	2c0971ee	7ee22c7bf0e0dcc548537a6418d56c7088a699a0	video	1	good	no
rm______.4_3	65536	b7981930	d4356dcbbfda7486a684d8c8d375648dd0f8e200	video	20000	good	no
rm______.4_4	65536	1bc71ac8	ac0f56d974a4aba143cb3b8cad8a65dc25b3e145	video	20001	good	no
rm______.4_5	65536	71460efc	3ae79df9d3ec83abdde059827e06e81316026380	video	40000	good	no
rm______.4_6	65536	471678de	919394768314bc8707f93875528dca33bcf7e09c	video	40001	good	no

chip

type	tag	name	clock
cpu	maincpu	Motorola MC6809	6880000
cpu	video	Motorola MC68000	10000000
audio	ay8913	AY-3-8913 PSG	1720000
audio	mono	Speaker
audio	alarmdac	1-Bit DAC
audio	speaker	Speaker
audio	saa	Philips SAA1099	8000000

device_ref

tag	name
:maincpu	mc6809
:ay8913	ay8913
:nvram	nvram
:50hz	timer
:vfd	msc1937
:ptm_ic2	ptm6840
:pia_ic3	pia6821
:pia_ic4	pia6821
:pia_ic5	pia6821
:pia_ic6	pia6821
:pia_ic7	pia6821
:pia_ic8	pia6821
:meters	meters
:dataport	bacta_datalogger
:hopper	coin_hopper
:mono	speaker
:alarmdac	dac
:screen	screen
:gfxdecode	gfxdecode
:scn2674_vid	scn2674
:video	m68000
:palette	palette
:ef9369	ef9369
:6840ptm_68k	ptm6840
:speaker	speaker
:saa	saa1099
:acia6850_0	acia6850
:acia6850_1	acia6850

sound

channels
2

input

players	coins	service	tilt
1	5	yes	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
only_buttons		7		no

port, analog

port_tag	analog_masks
:AUX1
:AUX2
:BLACK1
:BLACK2
:DIL1
:DIL2
:ORANGE1
:ORANGE2
:hopper:TEST

configuration

Jackpot / Prize Key

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Jackpot / Prize Key	ORANGE2	15

setting

name	value	default
Not fitted	0	yes
3 GBP	1	no
4 GBP	2	no
5 GBP	8	no
6 GBP	3	no
6 GBP Token	4	no
8 GBP	5	no
8 GBP Token	6	no
10 GBP	7	no
15 GBP	9	no
25 GBP	10	no
25 GBP - Licensed Betting Office Profile	11	no
35 GBP	12	no
70 GBP	13	no
Reserved 0e	14	no
Reserved 0f	15	no

Percentage Key

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Percentage Key	ORANGE2	240

setting

name	value	default
Not fitted / 68% (Invalid for UK Games)	0	yes
70	16	no
72	32	no
74	48	no
76	64	no
78	80	no
80	96	no
82	112	no
84	128	no
86	144	no
88	160	no
90	176	no
92	192	no
94	208	no
96	224	no
98	240	no

dipswitch

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DIL1	1

location

name	number	inverted
DIL1	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	1	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DIL1	2

location

name	number	inverted
DIL1	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	2	no

High Token Payout Proportion

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
High Token Payout Proportion	DIL1	4

location

name	number	inverted
DIL1	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	yes
Yes	4	no

Low Token Payout Proportion

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Low Token Payout Proportion	DIL1	8

location

name	number	inverted
DIL1	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	yes
Yes	8	no

Target Percentage (if key not fitted)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Target Percentage (if key not fitted)	DIL1	240

location

name	number	inverted
DIL1	5	no
DIL1	6	no
DIL1	7	no
DIL1	8	no

value

name	value	default
Unset (Program Optimum)	0	yes
70	16	no
72	32	no
74	48	no
76	64	no
78	80	no
80	96	no
82	112	no
84	128	no
86	144	no
88	160	no
90	176	no
92	192	no
94	208	no
96	224	no
98	240	no

Clear MPU Memory

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Clear MPU Memory	DIL2	1

location

name	number	inverted
DIL2	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	yes
Yes	1	no

Enable Cash Refill

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Enable Cash Refill	DIL2	2

location

name	number	inverted
DIL2	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	yes
Yes	2	no

Inhibit Win Banking

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Inhibit Win Banking	DIL2	4

location

name	number	inverted
DIL2	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	4	no

Inhibit Attract Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Inhibit Attract Mode	DIL2	8

location

name	number	inverted
DIL2	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	8	no

Halt Payout when Empty

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Halt Payout when Empty	DIL2	16

location

name	number	inverted
DIL2	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	yes
Yes	16	no

Coin Alarm Inhibit

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin Alarm Inhibit	DIL2	32

location

name	number	inverted
DIL2	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	32	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DIL2	64

location

name	number	inverted
DIL2	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	64	no

Single Credit Entry

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Single Credit Entry	DIL2	128

location

name	number	inverted
DIL2	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	128	no

clones

name	description
v4rhmazk	Red Hot Mazooma Belle (BWB) (Version 1.4 C, Cash+Token, 1993 Awards, 20p Switchable to 10p) (MPU4 Video)
v4rhmazb	Red Hot Mazooma Belle (BWB) (Version 1.4 D, Cash+Token, 1993 Awards, 10p Fixed, Datapak) (MPU4 Video)
v4rhmazf	Red Hot Mazooma Belle (BWB) (Version 1.4 D, Cash+Token, 1993 Awards, 20p Fixed, Datapak) (MPU4 Video)
v4rhmazi	Red Hot Mazooma Belle (BWB) (Version 1.4 D, Cash+Token, 1993 Awards, 20p Switchable to 10p, Datapak) (MPU4 Video)
v4rhmaza	Red Hot Mazooma Belle (BWB) (Version 1.4 DY, Cash+Token, 1993 Awards, 10p Fixed, Datapak, % Key) (MPU4 Video)
v4rhmazd	Red Hot Mazooma Belle (BWB) (Version 1.4 DY, Cash+Token, 1993 Awards, 20p Fixed, Datapak, % Key) (set 1) (MPU4 Video)
v4rhmaze	Red Hot Mazooma Belle (BWB) (Version 1.4 DY, Cash+Token, 1993 Awards, 20p Fixed, Datapak, % Key) (set 2) (MPU4 Video)
v4rhmazh	Red Hot Mazooma Belle (BWB) (Version 1.4 DY, Cash+Token, 1993 Awards, 20p Switchable to 10p, Datapak, % Key) (MPU4 Video)
v4rhmazj	Red Hot Mazooma Belle (BWB) (Version 1.4 Y, Cash+Token, 1993 Awards, 20p Switchable to 10p, % Key) (MPU4 Video)
v4rhmazc	Red Hot Mazooma Belle (BWB) (Version 1.4, Cash+Token, 1993 Awards, 20p Fixed) (MPU4 Video)
v4rhmazg	Red Hot Mazooma Belle (BWB) (Version 1.4, Cash+Token, 1993 Awards, 20p Switchable to 10p) (MPU4 Video)

Red Hot Mazooma Belle (BWB) (Version 1.4, Cash+Token, 1993 Awards, 10p Fixed) (MPU4 Video) - mame (0287) machine

machine

snap

display

driver

rom

chip

device_ref

sound

input

control

port, analog

configuration

Jackpot / Prize Key

setting

Percentage Key

setting

dipswitch

Unused

location

value

Unused

location

value

High Token Payout Proportion

location

value

Low Token Payout Proportion

location

value

Target Percentage (if key not fitted)

location

value

Clear MPU Memory

location

value

Enable Cash Refill

location

value

Inhibit Win Banking

location

value

Inhibit Attract Mode

location

value

Halt Payout when Empty

location

value

Coin Alarm Inhibit

location

value

Unused

location

value

Single Credit Entry

location

value

clones
