Video Pinball (4 ROMs version) - mame (0286) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
videopina	atari/videopin.cpp		no	no	no	yes	Video Pinball (4 ROMs version)	1979	Atari	videopin	videopin

snap

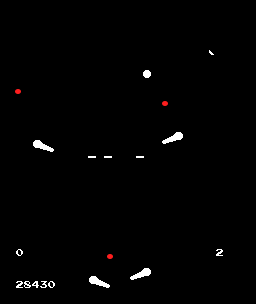

Video Pinball (4 ROMs version) png snap

Video Pinball (4 ROMs version) jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
videopina	919	29/12/2025 11:31:49	256	304	96	96	0	Format24bppRgb	305:MAME 0.230 (Mar 31 2021)	6fa1dad5d6943c4822c6272c2fa1767a0d5c58a5

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	270	304	256	60.000000	4797120	304	0	304	263	0	256	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	yes	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
034253-01.m0	2048	981b5986	78ca6dc1b968529e23796884aa461e71bf7f9a48	maincpu	2000	good	no
034254-01.h2	2048	c3eebf23	e9a0e2bf71a5131a8317ad40c1c56f84b5ae1643	maincpu	2800	good	no
034255-01.j2	2048	5565ae42	4a9f376650684217d523d3378a5852aaa9fdfedc	maincpu	3000	good	no
034256-01.k2	2048	9f24428c	df35225afebb4cc18a593ec665e94f677b3606ee	maincpu	3800	good	no
34259-01.d5	512	6cd98c06	48bf077b7abbd2f529a19bdf85700b93014f39f9	tiles	0	good	no	34259-01.d5
34258-01.c5	512	91a5f117	03ac6b0b3da0ed5faf1ba6695d16918d12ceeff5	tiles	0	good	no	34258-01.c5
34257-01.m1	32	50245866	b0692bc8d44f127f6e7182a1ce75a785e22ac5b9	ball	0	good	no	34257-01.m1
9402-01.h4	256	b8094b4c	82dc6799a19984f3b204ee3aeeb007e55afc8be3	sync_prom	0	good	no	9402-01.h4

chip

type	tag	name	clock
cpu	maincpu	MOS Technology 6502	756000
audio	mono	Speaker
audio	discrete	Discrete Sound

device_ref

tag	name
:maincpu	m6502
:watchdog	watchdog
:screen	screen
:gfxdecode	gfxdecode
:palette	palette
:mono	speaker
:discrete	discrete

sound

channels
1

input

players	coins	service	tilt
1	2	no	yes

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
only_buttons		4		no

port, analog

port_tag	analog_masks
:DSW
:IN0
:IN1
:IN2

dipswitch

Replay Level

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Replay Level	DSW	1

location

name	number	inverted
DSW	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
180000 (3 balls) / 300000 (5 balls)	0	no
210000 (3 balls) / 350000 (5 balls)	1	yes

Extra Ball

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Extra Ball	DSW	2

location

name	number	inverted
DSW	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off (award 50000 points instead)	2	no
On	0	yes

Replay

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Replay	DSW	4

location

name	number	inverted
DSW	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off (award 80000 points instead)	4	no
On	0	yes

Balls

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Balls	DSW	8

location

name	number	inverted
DSW	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
3	8	yes
5	0	no

Language

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Language	DSW	48

location

name	number	inverted
DSW	6	no
DSW	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
English	0	yes
German	16	no
French	32	no
Spanish	48	no

Coinage

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coinage	DSW	192

location

name	number	inverted
DSW	8	no
DSW	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
2 Coins/1 Credit	192	no
1 Coin/1 Credit	128	yes
1 Coin/2 Credits	64	no
Free Play	0	no

Service Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Service Mode	IN0	64

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	64	yes
On	0	no
