X1 (CZ-800C) - mame (0286) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
x1	sharp/x1.cpp		no	no	no	yes	X1 (CZ-800C)	1982	Sharp

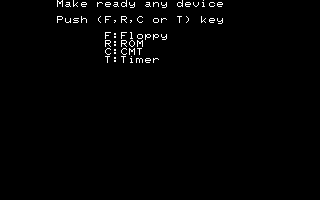

snap

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
x1	1126	29/12/2025 11:31:50	320	200	96	96	0	Format24bppRgb	305:MAME 0.203 (Oct 31 2018)	5ac7b55d46f7532cf325090811a4f882a9aada84

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	640	480	60.000000								no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	status	optional
ipl.x1	4096	7b28d9de	c4db9a6e99873808c8022afd1c50fef556a8b44d	ipl	good	no
80c48	4096			mcu	nodump	no
ank.fnt	8192	19689fbd	0d4e072cd6195a24a1a9b68f1d37500caa60e599	font	baddump	no
fnt0808.x1	2048	e3995a57	1c1a0d8c9f4c446ccd7470516b215ddca5052fb2	cgrom	good	no

chip

type	tag	name	clock
cpu	x1_cpu	Zilog Z80	4000000
audio	fdc:0:525dd:flopsndout	Speaker
audio	fdc:0:525dd:floppysound	Floppy sound	44100
audio	fdc:1:525dd:flopsndout	Speaker
audio	fdc:1:525dd:floppysound	Floppy sound	44100
audio	fdc:2:525dd:flopsndout	Speaker
audio	fdc:2:525dd:floppysound	Floppy sound	44100
audio	fdc:3:525dd:flopsndout	Speaker
audio	fdc:3:525dd:floppysound	Floppy sound	44100
audio	speaker	Speaker
audio	ay	AY-3-8910A PSG	2000000
audio	cassette	Cassette

softwarelist

tag	name	status	filter
cass_list	x1_cass	original
flop_list	x1_flop	original
flop_generic_list	generic_flop_525	compatible	x1

device_ref

tag	name
:x1_cpu	z80
:iobank	address_map_bank
:ctc	z80ctc
:ctc:ch0	z80ctc_channel
:ctc:ch1	z80ctc_channel
:ctc:ch2	z80ctc_channel
:ctc:ch3	z80ctc_channel
:x1kb	x1_keyboard
:ppi8255_0	i8255
:screen	screen
:crtc	hd6845s
:palette	palette
:gfxdecode	gfxdecode
:fdc	mb8877
:fdc:0	floppy_connector
:fdc:0:525dd	floppy_525_dd
:fdc:0:525dd:flopsndout	speaker
:fdc:0:525dd:floppysound	flopsnd
:fdc:1	floppy_connector
:fdc:1:525dd	floppy_525_dd
:fdc:1:525dd:flopsndout	speaker
:fdc:1:525dd:floppysound	flopsnd
:fdc:2	floppy_connector
:fdc:2:525dd	floppy_525_dd
:fdc:2:525dd:flopsndout	speaker
:fdc:2:525dd:floppysound	flopsnd
:fdc:3	floppy_connector
:fdc:3:525dd	floppy_525_dd
:fdc:3:525dd:flopsndout	speaker
:fdc:3:525dd:floppysound	flopsnd
:cartslot	generic_cartslot
:speaker	speaker
:ay	ay8910
:cassette	cassette_image
:keyboard_timer	timer
:cmt_wind_timer	timer
:cass_list	software_list
:flop_list	software_list
:flop_generic_list	software_list

sound

channels
5

device, instance

type	tag	interface	name	briefname
floppydisk	fdc:0:525dd	floppy_5_25	floppydisk1	flop1
floppydisk	fdc:1:525dd	floppy_5_25	floppydisk2	flop2
floppydisk	fdc:2:525dd	floppy_5_25	floppydisk3	flop3
floppydisk	fdc:3:525dd	floppy_5_25	floppydisk4	flop4
cartridge	cartslot	x1_cart	cartridge	cart
cassette	cassette	x1_cass	cassette	cass

device, extension

type	tag	interface	extension_names
floppydisk	fdc:0:525dd	floppy_5_25	mfi, dfi, mfm, td0, imd, 86f, d77, d88, 1dd, cqm, cqi, dsk, 2d
floppydisk	fdc:1:525dd	floppy_5_25	mfi, dfi, mfm, td0, imd, 86f, d77, d88, 1dd, cqm, cqi, dsk, 2d
floppydisk	fdc:2:525dd	floppy_5_25	mfi, dfi, mfm, td0, imd, 86f, d77, d88, 1dd, cqm, cqi, dsk, 2d
floppydisk	fdc:3:525dd	floppy_5_25	mfi, dfi, mfm, td0, imd, 86f, d77, d88, 1dd, cqm, cqi, dsk, 2d
cartridge	cartslot	x1_cart	bin, rom
cassette	cassette	x1_cass	wav, flac, tap

input

players	coins	service	tilt
2		no	no

control

type	player	buttons	ways	reverse
joy	1	2	8	no
keyboard	1	103		no
joy	2	2	8	no

port, analog

port_tag	analog_masks
:FP_SYS
:IOSYS
:P1
:P2
:SOUND_SW
:f_keys
:key1
:key2
:key3
:key_modifiers
:tenkey

slot, slotoption

slot_name	slotoption_name	slotoption_devname	slotoption_default
fdc:0	525dd	floppy_525_dd	yes
fdc:1	525dd	floppy_525_dd	yes
fdc:2	525dd	floppy_525_dd	yes
fdc:3	525dd	floppy_525_dd	yes
cartslot

dipswitch

IOSYS

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
IOSYS	IOSYS	1

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	1	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	IOSYS	2

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	IOSYS	4

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	4	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	IOSYS	8

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	8	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	IOSYS	16

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	16	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	IOSYS	32

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	IOSYS	64

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	64	yes
On	0	no

Sound Setting?

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Sound Setting?	IOSYS	128

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	yes
On	0	no

clones

name	description
x1turbo	X1 Turbo (CZ-850C)
x1turbo40	X1 Turbo (CZ-862C)
x1twin	X1 Twin (CZ-830C)
