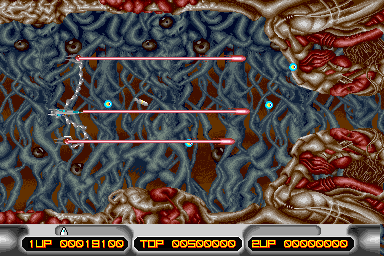

X Multiply (World, M81 hardware) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Machines: 48893 - rom: 364836 - disk: 1378

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
xmultipl	irem/m72.cpp		no	no	no	yes	X Multiply (World, M81 hardware)	1989	Irem

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	384	256	55.017606	8000000	512	64	448	284	0	256	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no	preliminary

rom

name	size	crc	sha1	region	offset	status	optional
xm_a-h1-.ic58	131072	449048cf	871b588177fb018937d143f76eda18aa53b0f6c4	maincpu	1	good	no
xm_a-l1-.ic67	131072	26ce39b0	18ae2e8c2c826c6ecfa66f7af5afdeeac3936543	maincpu	0	good	no
xm_a-h0-.ic59	65536	509bc970	44bb4ecedf8f127792e9a8da70b3a42c8ff30ad2	maincpu	40001	good	no
xm_a-l0-.ic68	65536	490a9ebc	55d9d3a4f82f120faabca78c2e47922831f62a5d	maincpu	40000	good	no
xm_a-sp-.ic14	65536	006eef56	917b26b200fa4c1692d4c7ca0ea0f7897e3e3b7b	soundcpu	0	good	no
t44.00.ic3	131072	db45186e	8c8edeb4b7e6b0516f2597823dc27eba9c5d9528	sprites	0	good	no
t45.01.ic2	131072	4d0764d4	4942333336a110b033f16ac1afa06ffef7b2dad6	sprites	20000	good	no
t46.10.ic5	131072	f0c465a4	69c107c860d4e8736431fd86b6821b70a8367eb3	sprites	40000	good	no
t47.11.ic4	131072	1263b24b	0445a5381df3a868bed6967c8e5de7169e4be6a3	sprites	60000	good	no
t48.20.ic12	131072	4129944f	988b072032d1667c3ac0731fada32fb6978505dc	sprites	80000	good	no
t49.21.ic11	131072	2346e6f9	b3de017dd0353e04d279f57e151c47f5fcc70e9c	sprites	a0000	good	no
t50.30.ic14	131072	e322543e	b4c3a7f202d81485d5f0a7b7668ee89fc1edb215	sprites	c0000	good	no
t51.31.ic13	131072	229bf7b1	ae42c7efbb6278dd3fa56842361138391f2d49ca	sprites	e0000	good	no
t53.a0.ic50	131072	1a082494	63a3a84a262833d2cafab41e35df8f10a5e317b1	tiles0	0	good	no
t54.a1.ic49	131072	076c16c5	4be858806b916953d59aceee550e721eaf3996a6	tiles0	20000	good	no
t55.a2.ic51	131072	25d877a5	48c948bf714c432f534c098123c8f50d5561756f	tiles0	40000	good	no
t56.a3.ic52	131072	5b1213f5	87782aa0bd04d4378c4ba78b63028ae2709da2f1	tiles0	60000	good	no
t57.b0.ic47	131072	0a84e0c7	67ad181a7d2c431cb4bf45955e09754549a03576	tiles1	0	good	no
t58.b1.ic48	131072	a874121d	1351d5901d55059c6472a4588a2e560396903861	tiles1	20000	good	no
t59.b2.ic46	131072	69deb990	1eed3183efbe576376661b45152a0a21240ecfc8	tiles1	40000	good	no
t60.b3.ic45	131072	14c69f99	4bea72f8bd421ef3ca559363f7473ce2e7038699	tiles1	60000	good	no
t52.v0.ic11	131072	2db1bd80	657006d0642ec7fb949bb52821d78fe51a599415	samples	0	good	no
m81_a-9l-.ic72	256	b460c438	00e20cf754b6fd5138ee4d2f6ec28dff9e292fe6	proms	0	good	no
m81_a-9p-.ic74	256	a4f2c4bc	f13b0a4b52dcc6704063b676f09d83dcba170133	proms	100	good	no
m81_b-9h-.ic94	279	4bc1d393	d9358a409b4568839ee6cea7241e37f557c3d3a9	plds	0	good	no
m81_a-5l-.ic28	279	56c29834	a66c589845f9995c673325f1161c687eb90d68c1	plds	200	good	no
m81_a-2h-.ic2	279	21ede612	5d05d3088f3d248db8948da175551ea29d7478b5	plds	400	good	no
xm_a-7d-.ic48	279	2ef7ad4e	a7fae2f34f60de11362cd712c63b681012452e96	plds	600	good	no

chip

type	tag	name	clock
cpu	maincpu	NEC V30	8000000
cpu	soundcpu	Zilog Z80	3579545
audio	speaker	Speaker
audio	ymsnd	YM2151 OPM	3579545
audio	dac	8-Bit R-2R DAC

device_ref

name
v30
z80
pic8259
buffered_spriteram16
gfxdecode
palette
screen
speaker
generic_latch_8
rst_neg_buffer
m72_audio
ym2151
dac_8bit_r2r

sound

channels
1

input

players	coins	service	tilt
2	2	yes	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
joy	1	4	8	no
joy	2	4	8	no

port, analog

port_tag	analog_masks
:DSW
:IN0
:IN1
:JumperJ3

configuration

M81-B-B Jumper J3

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
M81-B-B Jumper J3	JumperJ3	1

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
W	1	yes

dipswitch

Difficulty

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Difficulty	DSW	3

location

name	number	inverted
SW1	1	no
SW1	2	no

value

name	value	default
Very Easy	2	no
Easy	1	no
Normal	3	yes
Hard	0	no

Lives

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Lives	DSW	12

location

name	number	inverted
SW1	3	no
SW1	4	no

value

name	value	default
1	8	no
2	4	no
3	12	yes
4	0	no

Coin A

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin A	DSW	48	DSW	1024	eq	0

location

name	number	inverted
SW1	5	no
SW1	6	no

value

name	value	default
5 Coins/1 Credit	0	no
3 Coins/1 Credit	16	no
2 Coins/1 Credit	32	no
1 Coin/1 Credit	48	yes

Coin B

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin B	DSW	192	DSW	1024	eq	0

location

name	number	inverted
SW1	7	no
SW1	8	no

value

name	value	default
1 Coin/2 Credits	192	yes
1 Coin/3 Credits	128	no
1 Coin/5 Credits	64	no
1 Coin/6 Credits	0	no

Coinage

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coinage	DSW	240	DSW	1024	ne	0

location

name	number	inverted
SW1	5	no
SW1	6	no
SW1	7	no
SW1	8	no

value

name	value	default
6 Coins/1 Credit	160	no
5 Coins/1 Credit	176	no
4 Coins/1 Credit	192	no
3 Coins/1 Credit	208	no
8 Coins/3 Credits	16	no
2 Coins/1 Credit	224	no
5 Coins/3 Credits	32	no
3 Coins/2 Credits	48	no
1 Coin/1 Credit	240	yes
2 Coins/3 Credits	64	no
1 Coin/2 Credits	144	no
1 Coin/3 Credits	128	no
1 Coin/4 Credits	112	no
1 Coin/5 Credits	96	no
1 Coin/6 Credits	80	no
Free Play	0	no

Flip Screen

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Flip Screen	DSW	256

location

name	number	inverted
SW2	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	256	yes
On	0	no

Cabinet

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Cabinet	DSW	512

location

name	number	inverted
SW2	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation
Upright (single)	0	yes	DSW	4096	ne
Cocktail	512	no	DSW	4096	ne
Upright (double) On	0	yes	DSW	4096	eq
Upright (double) Off	512	no	DSW	4096	eq

Coin Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin Mode	DSW	1024

location

name	number	inverted
SW2	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Mode 1	1024	yes
Mode 2	0	no

Demo Sounds

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Demo Sounds	DSW	2048

location

name	number	inverted
SW2	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	2048	yes

Upright (double) Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Upright (double) Mode	DSW	4096

location

name	number	inverted
SW2	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	4096	yes
On	0	no

Allow Continue

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Allow Continue	DSW	8192

location

name	number	inverted
SW2	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	no
Yes	8192	yes

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW	16384

location

name	number	inverted
SW2	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	16384	yes
On	0	no

Service Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Service Mode	DSW	32768

location

name	number	inverted
SW2	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32768	yes
On	0	no
