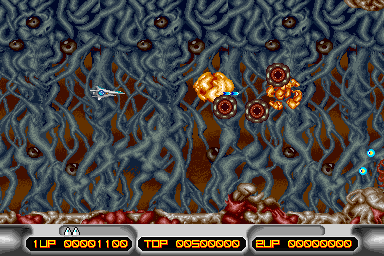

X Multiply (Japan, M72 hardware) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Machines: 48893 - rom: 364836 - disk: 1378

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
xmultiplm72	irem/m72.cpp		no	no	no	yes	X Multiply (Japan, M72 hardware)	1989	Irem	xmultipl	xmultipl

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	384	256	55.017606	8000000	512	64	448	284	0	256	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no	preliminary

rom

name	size	crc	sha1	region	offset	status	optional	merge
xm_c-h3-.ic43	131072	20685021	92f4216320bf525045223b9454fb5bb224c536d8	maincpu	1	good	no
xm_c-l3-.ic34	131072	93fdd200	dd4244ba0ce6c621136b0648374179da44363c01	maincpu	0	good	no
xm_c-h0-.ic40	65536	9438dd8a	dc85789c47d31a96300b4236dc43f065e1b01e4a	maincpu	40001	good	no
xm_c-l0-.ic37	65536	06a9e213	9831c110814642703d6e71d49848d854095b7d3a	maincpu	40000	good	no
xm_c-pr-.ic1	4096	c8ceb3cd	e5d20a3a9d7f0919604543c97643a03434d80130	mcu	0	good	no
t44.00.ic53	131072	db45186e	8c8edeb4b7e6b0516f2597823dc27eba9c5d9528	sprites	0	good	no	t44.00.ic3
t45.01.ic52	131072	4d0764d4	4942333336a110b033f16ac1afa06ffef7b2dad6	sprites	20000	good	no	t45.01.ic2
t46.10.ic51	131072	f0c465a4	69c107c860d4e8736431fd86b6821b70a8367eb3	sprites	40000	good	no	t46.10.ic5
t47.11.ic50	131072	1263b24b	0445a5381df3a868bed6967c8e5de7169e4be6a3	sprites	60000	good	no	t47.11.ic4
t48.20.ic49	131072	4129944f	988b072032d1667c3ac0731fada32fb6978505dc	sprites	80000	good	no	t48.20.ic12
t49.21.ic48	131072	2346e6f9	b3de017dd0353e04d279f57e151c47f5fcc70e9c	sprites	a0000	good	no	t49.21.ic11
t50.30.ic47	131072	e322543e	b4c3a7f202d81485d5f0a7b7668ee89fc1edb215	sprites	c0000	good	no	t50.30.ic14
t51.31.ic46	131072	229bf7b1	ae42c7efbb6278dd3fa56842361138391f2d49ca	sprites	e0000	good	no	t51.31.ic13
t53.a0.ic21	131072	1a082494	63a3a84a262833d2cafab41e35df8f10a5e317b1	tiles0	0	good	no	t53.a0.ic50
t54.a1.ic22	131072	076c16c5	4be858806b916953d59aceee550e721eaf3996a6	tiles0	20000	good	no	t54.a1.ic49
t55.a2.ic20	131072	25d877a5	48c948bf714c432f534c098123c8f50d5561756f	tiles0	40000	good	no	t55.a2.ic51
t56.a3.ic23	131072	5b1213f5	87782aa0bd04d4378c4ba78b63028ae2709da2f1	tiles0	60000	good	no	t56.a3.ic52
t57.b0.ic26	131072	0a84e0c7	67ad181a7d2c431cb4bf45955e09754549a03576	tiles1	0	good	no	t57.b0.ic47
t58.b1.ic27	131072	a874121d	1351d5901d55059c6472a4588a2e560396903861	tiles1	20000	good	no	t58.b1.ic48
t59.b2.ic25	131072	69deb990	1eed3183efbe576376661b45152a0a21240ecfc8	tiles1	40000	good	no	t59.b2.ic46
t60.b3.ic24	131072	14c69f99	4bea72f8bd421ef3ca559363f7473ce2e7038699	tiles1	60000	good	no	t60.b3.ic45
t52.v0.ic44	131072	2db1bd80	657006d0642ec7fb949bb52821d78fe51a599415	samples	0	good	no	t52.v0.ic11
m72_a-8l-.ic66	256	b460c438	00e20cf754b6fd5138ee4d2f6ec28dff9e292fe6	proms	0	good	no	m81_a-9l-.ic72
m72_a-9l-.ic75	256	a4f2c4bc	f13b0a4b52dcc6704063b676f09d83dcba170133	proms	100	good	no	m81_a-9p-.ic74
m72_a-3d-.ic11	279	8a3732ff	6e3039e7dc424cbef7156312fa1ce67d7b082d30	pals	0	good	no
m72_a-4d-.ic19	279	56c29834	a66c589845f9995c673325f1161c687eb90d68c1	pals	200	good	no	m81_a-5l-.ic28
xm_c-3f-.ic13	279	f43e91e4	37dd9b9436ad57232da7fd57040311ac140c1841	pals	400	good	no

chip

type	tag	name	clock
cpu	maincpu	NEC V30	8000000
cpu	soundcpu	Zilog Z80	3579545
cpu	mcu	Intel 8751	8000000
audio	speaker	Speaker
audio	ymsnd	YM2151 OPM	3579545
audio	dac	8-Bit R-2R DAC

device_ref

name
v30
z80
pic8259
buffered_spriteram16
gfxdecode
palette
screen
speaker
generic_latch_8
rst_neg_buffer
m72_audio
ym2151
dac_8bit_r2r
mb8421_mb8431_16
generic_latch_8
generic_latch_8
i8751

sound

channels
1

input

players	coins	service	tilt
2	2	yes	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
joy	1	4	8	no
joy	2	4	8	no

port, analog

port_tag	analog_masks
:DSW
:IN0
:IN1

dipswitch

Difficulty

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Difficulty	DSW	3

location

name	number	inverted
SW1	1	no
SW1	2	no

value

name	value	default
Very Easy	2	no
Easy	1	no
Normal	3	yes
Hard	0	no

Lives

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Lives	DSW	12

location

name	number	inverted
SW1	3	no
SW1	4	no

value

name	value	default
1	8	no
2	4	no
3	12	yes
4	0	no

Coin A

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin A	DSW	48	DSW	1024	eq	0

location

name	number	inverted
SW1	5	no
SW1	6	no

value

name	value	default
5 Coins/1 Credit	0	no
3 Coins/1 Credit	16	no
2 Coins/1 Credit	32	no
1 Coin/1 Credit	48	yes

Coin B

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin B	DSW	192	DSW	1024	eq	0

location

name	number	inverted
SW1	7	no
SW1	8	no

value

name	value	default
1 Coin/2 Credits	192	yes
1 Coin/3 Credits	128	no
1 Coin/5 Credits	64	no
1 Coin/6 Credits	0	no

Coinage

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coinage	DSW	240	DSW	1024	ne	0

location

name	number	inverted
SW1	5	no
SW1	6	no
SW1	7	no
SW1	8	no

value

name	value	default
6 Coins/1 Credit	160	no
5 Coins/1 Credit	176	no
4 Coins/1 Credit	192	no
3 Coins/1 Credit	208	no
8 Coins/3 Credits	16	no
2 Coins/1 Credit	224	no
5 Coins/3 Credits	32	no
3 Coins/2 Credits	48	no
1 Coin/1 Credit	240	yes
2 Coins/3 Credits	64	no
1 Coin/2 Credits	144	no
1 Coin/3 Credits	128	no
1 Coin/4 Credits	112	no
1 Coin/5 Credits	96	no
1 Coin/6 Credits	80	no
Free Play	0	no

Flip Screen

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Flip Screen	DSW	256

location

name	number	inverted
SW2	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	256	yes
On	0	no

Cabinet

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Cabinet	DSW	512

location

name	number	inverted
SW2	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation
Upright (single)	0	yes	DSW	4096	ne
Cocktail	512	no	DSW	4096	ne
Upright (double) On	0	yes	DSW	4096	eq
Upright (double) Off	512	no	DSW	4096	eq

Coin Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin Mode	DSW	1024

location

name	number	inverted
SW2	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Mode 1	1024	yes
Mode 2	0	no

Demo Sounds

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Demo Sounds	DSW	2048

location

name	number	inverted
SW2	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	2048	yes

Upright (double) Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Upright (double) Mode	DSW	4096

location

name	number	inverted
SW2	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	4096	yes
On	0	no

Allow Continue

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Allow Continue	DSW	8192

location

name	number	inverted
SW2	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	no
Yes	8192	yes

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW	16384

location

name	number	inverted
SW2	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	16384	yes
On	0	no

Service Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Service Mode	DSW	32768

location

name	number	inverted
SW2	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32768	yes
On	0	no
