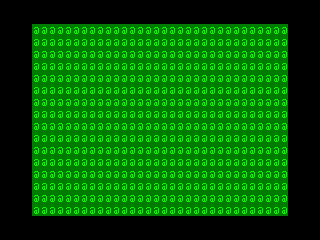

Z80NE + LX.388 + LX.390 - mame (0277) machine

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	romof	cloneof
z80netf	misc/z80ne.cpp		no	no	no	yes	Z80NE + LX.388 + LX.390	1980	Nuova Elettronica	z80ne	z80ne

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
lx388	raster	0	372	293	62.325953	8867238	456	0	372	312	0	293	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	yes	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
548-1.ic1	2048	868cad39	0ea8af010786a080f823a879a4211f5712d260da	maincpu	0	good	no
548-2.ic2	2048	ac297d99	ccf31d3f9d02c3b68a0ee3be4984424df0e83ab0	maincpu	800	good	no
548-3.ic3	2048	9c1fe511	ff5b6e49a137c2ff9cb760c39bfd85ce4b52bb7d	maincpu	1000	good	no
548-4.ic4	2048	cb5e0de3	0beaa8927faaf61f6c3fc0ea1d3d5670f901aae3	maincpu	1800	good	no
548-5.ic5	2048	0bd4559c	e736a3124819ffb43e96a8114cd188f18d538053	maincpu	2000	good	no
548-6.ic6	2048	6d663034	57588be4e360658dbb313946d7a608e36c1fdd68	maincpu	2800	good	no
548-7.ic7	2048	0bab06c0	d52f1519c798e91f25648e996b1db174d90ce0f5	maincpu	3000	good	no
548-8.ic8	2048	f381b594	2de7a8941ba48d463974c73d62e994d3cbe2868d	maincpu	3800	good	no
ep382.ic5	1024	55818366	adcac04b83c09265517b7bafbc2f5f665d751bec	maincpu	4000	good	no	ep382.ic5
ep390.ic6	1024	e4dd7de9	523caa97112a9e67cc078c1a70ceee94ec232093	maincpu	4400	good	no
ep1390.ic6	1024	dc2cbc1d	e23418b8f8261a17892f3a73ec09c72bb02e1d0b	maincpu	4800	good	no
ep2390.ic6	1024	28d28eee	b80f75c1ac4905ae369ecbc9b9ce120cc85502ed	maincpu	4c00	good	no

chip

type	tag	name	clock
cpu	maincpu	Zilog Z80	1920000
audio	mono	Speaker
audio	cassette	Cassette
audio	cassette2	Cassette
audio	wd1771:0:sssd:flopsndout	Speaker
audio	wd1771:0:sssd:floppysound	Floppy sound	44100
audio	wd1771:1:sssd:flopsndout	Speaker
audio	wd1771:1:sssd:floppysound	Floppy sound	44100

softwarelist

tag	name	status	filter
cass_list	z80ne_cass	original
flop_list	z80ne_flop	original

device_ref

name
z80
ay31015
clock
speaker
cassette_image
cassette_image
kr2376_st
screen
mc6847_pal
fd1771
floppy_connector
floppy_525_sssd
speaker
flopsnd
floppy_connector
floppy_525_sssd
speaker
flopsnd
floppy_connector
floppy_connector
ram
software_list
software_list

sound

channels
3

ramoption

name	default
56K	yes

device, instance

type	tag	interface	fixed_image	mandatory	name	briefname
cassette	cassette	z80ne_cass			cassette1	cass1
cassette	cassette2	z80ne_cass			cassette2	cass2
floppydisk	wd1771:0:sssd	floppy_5_25			floppydisk1	flop1
floppydisk	wd1771:1:sssd	floppy_5_25			floppydisk2	flop2

device, extension

type	tag	interface	fixed_image	mandatory	extension_names
cassette	cassette	z80ne_cass			wav, flac
cassette	cassette2	z80ne_cass			wav, flac
floppydisk	wd1771:0:sssd	floppy_5_25			mfi, dfi, mfm, td0, imd, 86f, dmk
floppydisk	wd1771:1:sssd	floppy_5_25			mfi, dfi, mfm, td0, imd, 86f, dmk

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
keyboard		75		no

port, analog

port_tag	analog_masks
:CONFIG
:CTRL
:LX.385
:LX387_BRK
:MODIFIERS
:ROW0
:ROW1
:RST
:X0
:X1
:X2
:X3
:X4
:X5
:X6
:X7
:mc6847:artifacting

slot, slotoption

slot_name	slotoption_name	slotoption_devname	slotoption_default
wd1771:0	sssd	floppy_525_sssd	yes
wd1771:1	sssd	floppy_525_sssd	yes
wd1771:2	sssd	floppy_525_sssd	no
wd1771:3	sssd	floppy_525_sssd	no

configuration

Boot EPROM

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Boot EPROM	CONFIG	7

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
EP382 Hex Monitor	1	yes
EP548 16k BASIC	2	no
EP390 Boot Loader for 5.5k floppy BASIC	3	no
EP1390 Boot Loader for NE DOS 1.0/1.5	4	no
EP2390 Boot Loader for NE DOS G.1	5	no

LX.385 Cassette: P1,P3 Data Rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
LX.385 Cassette: P1,P3 Data Rate	LX.385	7

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
A-B: 300 bps	1	no
A-C: 600 bps	2	no
A-D: 1200 bps	4	yes

LX.385: P4 Parity Check

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
LX.385: P4 Parity Check	LX.385	8

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Parity Check Enabled	0	yes
Parity Check Disabled	8	no

Artifacting

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Artifacting	mc6847:artifacting	3

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
Standard	1	yes
Reverse	2	no
