Zorba (Modular Micros) - mame (0286) machine

MAME: 0286 - Released: 2026-02-25T16:02:51 - Machines: 49738 - rom: 368235 - disk: 1396

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
zorba	skeleton/zorba.cpp		no	no	no	yes	Zorba (Modular Micros)	1984?	Modular Micros

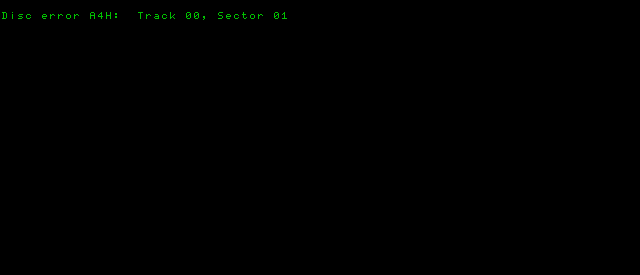

snap

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems
zorba	1065	29/12/2025 11:31:50	640	275	96	96	0	Format24bppRgb	305:MAME 0.179 (Oct 26 2016)

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	100	100	50.000000	500000	100	0	100	100	0	100	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional
780000.u47	4096	6d58f2c5	7763f08c801cd36e5a761c6dc9f30a50b3bc482d	maincpu	0	good	no
773000.u5	4096	d0a2f8fc	29aee7ee657778c46e9800abd4955e6d4b33ef68	chargen	0	good	no
74ls288.u37	32	0a67edd6	c1ece8978a3a061e0130d43907fa63a71e75e75d	proms	0	baddump	no
74ls288.u38	32	5ec93ea7	3a84c098474b05d5cbe1939a3e15f66d06470581	proms	20	baddump	no
74ls288.u77	32	946e03b0	24240bdd7bdf507a5b51628fb36ad1266fc53a28	proms	40	baddump	no

chip

type	tag	name	clock
cpu	maincpu	Zilog Z80	4000000
cpu	keyboard:mcu	Motorola MC68705P3	3579545
audio	mono	Speaker
audio	beeper	Beep	800
audio	fdc:0:525dd:flopsndout	Speaker
audio	fdc:0:525dd:floppysound	Floppy sound	44100
audio	fdc:1:525dd:flopsndout	Speaker
audio	fdc:1:525dd:floppysound	Floppy sound	44100
audio	keyboard:bell	Speaker
audio	keyboard:beeper	Beep	2083

softwarelist

tag	name	status	filter
flop_list	zorba	original

device_ref

tag	name
:maincpu	z80
:screen	screen
:gfxdecode	gfxdecode
:palette	palette
:mono	speaker
:beeper	beep
:irq0	ipt_merge_any_hi
:irq1	ipt_merge_any_hi
:irq2	ipt_merge_any_hi
:dma	z80dma
:uart0	i8251
:uart1	i8251
:uart2	i8251
:pia0	pia6821
:pia1	pia6821
:pit	pit8254
:pit:counter0	pit_counter
:pit:counter1	pit_counter
:pit:counter2	pit_counter
:crtc	i8275
:fdc	fd1793
:fdc:0	floppy_connector
:fdc:0:525dd	floppy_525_dd
:fdc:0:525dd:flopsndout	speaker
:fdc:0:525dd:floppysound	flopsnd
:fdc:1	floppy_connector
:fdc:1:525dd	floppy_525_dd
:fdc:1:525dd:flopsndout	speaker
:fdc:1:525dd:floppysound	flopsnd
:ieee_bus	ieee488
:rs232	rs232
:parprn	centronics
:parprn:printer	centronics_printer
:parprn:printer:printer	printer_image
:parprndata	output_latch
:serprn	rs232
:keyboard	zorba_kbd
:keyboard:mcu	m68705p3
:keyboard:bell	speaker
:keyboard:beeper	beep
:flop_list	software_list

sound

channels
4

device, instance

type	tag	interface	name	briefname
floppydisk	fdc:0:525dd	floppy_5_25	floppydisk1	flop1
floppydisk	fdc:1:525dd	floppy_5_25	floppydisk2	flop2
printout	parprn:printer:printer		printout	prin

device, extension

type	tag	interface	extension_names
floppydisk	fdc:0:525dd	floppy_5_25	mfi, dfi, mfm, td0, imd, 86f, d77, d88, 1dd, cqm, cqi, dsk
floppydisk	fdc:1:525dd	floppy_5_25	mfi, dfi, mfm, td0, imd, 86f, d77, d88, 1dd, cqm, cqi, dsk
printout	parprn:printer:printer		prn

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
keyboard		94		no

port, analog

port_tag	analog_masks
:CNF
:keyboard:ROW0
:keyboard:ROW1
:keyboard:ROW10
:keyboard:ROW11
:keyboard:ROW12
:keyboard:ROW13
:keyboard:ROW14
:keyboard:ROW15
:keyboard:ROW2
:keyboard:ROW3
:keyboard:ROW4
:keyboard:ROW5
:keyboard:ROW6
:keyboard:ROW7
:keyboard:ROW8
:keyboard:ROW9

slot, slotoption

slot_name	slotoption_name	slotoption_devname	slotoption_default
fdc:0	525dd	floppy_525_dd	yes
fdc:1	525dd	floppy_525_dd	yes
rs232	terminal	serial_terminal	no
rs232	sunkbd	sunkbd_adaptor	no
rs232	votraxtnt	serial_votraxtnt	no
rs232	rs_printer	rs_serial_printer	no
rs232	dec_loopback	dec_rs232_loopback	no
rs232	h19	serial_heath_h19	no
rs232	ie15	ie15_terminal	no
rs232	null_modem	null_modem	no
rs232	keyboard	serial_keyboard	no
rs232	patch	rs232_patch_box	no
rs232	swtpc8212	swtpc8212_terminal	no
rs232	printer	serial_printer	no
rs232	scorpion	scorpion_ic	no
rs232	loopback	rs232_loopback	no
rs232	mockingboard	mockingboardd	no
rs232	msystems_mouse	rs232_mouse_hle_msystems	no
rs232	nss_tvi	nss_tvinterface	no
rs232	rs232_sync_io	rs232_sync_io	no
rs232	pty	pseudo_terminal	no
parprn	nlq401	nlq401	no
parprn	smartboard	centronics_smartboard	no
parprn	chessmec	centronics_chessmec	no
parprn	samdac	centronics_samdac	no
parprn	covox_stereo	covox_stereo	no
parprn	adaptator	adaptator_multitap	no
parprn	digiblst	cpcdigiblst	no
parprn	lx800	lx800	no
parprn	jx80	epson_jx80	no
parprn	ap2000	ap2000	no
parprn	ex800	ex800	no
parprn	fx80	epson_fx80	no
parprn	rx80	epson_rx80	no
parprn	mz1p16	mz1p16	no
parprn	covox	covox	no
parprn	pl80	comx_pl80	no
parprn	lx810l	lx810l	no
parprn	p72	p72	no
parprn	printer	centronics_printer	yes
serprn	terminal	serial_terminal	no
serprn	sunkbd	sunkbd_adaptor	no
serprn	votraxtnt	serial_votraxtnt	no
serprn	rs_printer	rs_serial_printer	no
serprn	dec_loopback	dec_rs232_loopback	no
serprn	h19	serial_heath_h19	no
serprn	ie15	ie15_terminal	no
serprn	null_modem	null_modem	no
serprn	keyboard	serial_keyboard	no
serprn	patch	rs232_patch_box	no
serprn	swtpc8212	swtpc8212_terminal	no
serprn	printer	serial_printer	no
serprn	scorpion	scorpion_ic	no
serprn	loopback	rs232_loopback	no
serprn	mockingboard	mockingboardd	no
serprn	msystems_mouse	rs232_mouse_hle_msystems	no
serprn	nss_tvi	nss_tvinterface	no
serprn	rs232_sync_io	rs232_sync_io	no
serprn	pty	pseudo_terminal	no

configuration

Parallel Printer

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Parallel Printer	CNF	1

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Centronics	0	yes
Prowriter	1	no

dipswitch

Diagnostic Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Diagnostic Mode	keyboard:ROW15	7

location

name	number	inverted
DIP	1	no
DIP	2	no
DIP	3	no

value

name	value	default
0 (Normal)	7	yes
1 (Dump Tables)	6	no
2 (Report Revision)	5	no
3 (Serial Test)	4	no
4 (Serial Echo)	3	no
5 (Output Test)	2	no
6 (Normal)	1	no
7 (Dump Tables)	0	no

Key Repeat

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Key Repeat	keyboard:ROW15	8

location

name	number	inverted
DIP	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	8	yes

Baud Rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Baud Rate	keyboard:ROW15	16

location

name	number	inverted
DIP	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
300	0	no
1200	16	yes

Key Click

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Key Click	keyboard:ROW15	32

location

name	number	inverted
DIP	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	32	yes

Synchronous Output

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Synchronous Output	keyboard:ROW15	64

location

name	number	inverted
DIP	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	64	yes
On	0	no

Key Repeat Delay/Rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Key Repeat Delay/Rate	keyboard:ROW15	128

location

name	number	inverted
DIP	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
0.75s/15cps	128	yes
0.5s/21cps	0	no
