BBC Master AIV - mame (0287) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
bbcmaiv	acorn/bbcm.cpp	bbc	no	no	no	yes	BBC Master AIV	1986	Acorn Computers	bbcm	bbcm

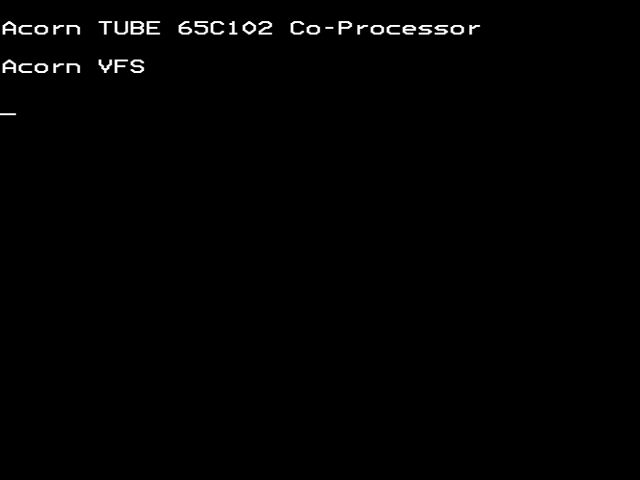

snap

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
bbcmaiv	3688	29/12/2025 11:31:16	640	480	96	96	0	Format24bppRgb	305:MAME 0.198 (May 30 2018)	550b88d44aa165bf99a6e4e78872a3a4657cd3fb

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	640	256	50.080128	16000000	1024	0	640	312	0	256	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge
mos320.ic24	131072	0f747ebe	eacacbec3892dc4809ad5800e6c8299ff9eb528f	rom	20000	good	no	mos320.ic24
vfs170.rom	16384	b124a0bb	ba31c757815cf470402d7829a70a0e1d3fb1355b	rom	20000	good	no
mos320aiv.cmos	50	b9ae42a1	abf3e94b013f24027ca36c96720963c3411e93f8	rtc	e	baddump	no

chip

type	tag	name	clock
cpu	maincpu	GTE G65SC12	2000000
cpu	intube:65c102:maincpu	Rockwell R65C102	16000000
audio	mono	Speaker
audio	sn	SN76489A	4000000
audio	samples	Samples
audio	cassette	Cassette
audio	wdfdc:0:525qd:flopsndout	Speaker
audio	wdfdc:0:525qd:floppysound	Floppy sound	44100
audio	wdfdc:1:525qd:flopsndout	Speaker
audio	wdfdc:1:525qd:floppysound	Floppy sound	44100
audio	1mhzbus	BBC Micro 1MHz Bus port	1000000

softwarelist

tag	name	status	filter
intube:65c102:flop_ls_6502	bbc_flop_6502	original
cass_ls	bbc_cass	original	A,B,M
flop_ls_m	bbcm_flop	original
cart_ls_m	bbcm_cart	original
flop_ls_b	bbcb_flop	compatible
flop_ls_b_orig	bbcb_flop_orig	compatible
rom_ls	bbc_rom	original	M
hdd_ls	bbc_hdd	original	M

device_ref

tag	name
:maincpu	g65sc12
:irqs	ipt_merge_any_hi
:ram	ram
:screen	screen
:palette	palette
:saa5050	saa5050
:crtc	hd6845s
:latch	ls259
:sysvia	mos6522
:kbd	bbcm_kbd
:mono	speaker
:sn	sn76489a
:rtc	mc146818
:mc6854	mc6854
:network	econet
:econet	econet_slot
:cartslot1	electron_cartslot
:cartslot2	electron_cartslot
:romslot8	bbc_romslot16
:samples	samples
:cassette	cassette_image
:acia	acia6850
:serproc	serproc
:rs423	rs232
:uservia	mos6522
:printer	centronics
:printer:printer	centronics_printer
:printer:printer:printer	printer_image
:cent_data_out	output_latch
:upd7002	upd7002
:analogue	bbc_analogue_slot
:wdfdc	wd1770
:wdfdc:0	floppy_connector
:wdfdc:0:525qd	floppy_525_qd
:wdfdc:0:525qd:flopsndout	speaker
:wdfdc:0:525qd:floppysound	flopsnd
:wdfdc:1	floppy_connector
:wdfdc:1:525qd	floppy_525_qd
:wdfdc:1:525qd:flopsndout	speaker
:wdfdc:1:525qd:floppysound	flopsnd
:1mhzbus	bbc_1mhzbus_slot
:intube	bbc_tube_slot
:intube:65c102	bbc_tube_65c102
:intube:65c102:maincpu	r65c102
:intube:65c102:ula	tube
:intube:65c102:ram	ram
:intube:65c102:flop_ls_6502	software_list
:extube	bbc_tube_slot
:userport	bbc_userport_slot
:userport:tracker	bbc_tracker
:romslot4	bbc_romslot32
:romslot4:ram	bbc_ram
:romslot6	bbc_romslot32
:romslot6:ram	bbc_ram
:internal	bbc_internal_slot
:modem	bbc_modem_slot
:modem:scsiaiv	bbc_scsiaiv
:modem:scsiaiv:scsi	nscsi_bus
:modem:scsiaiv:scsi:0	nscsi_connector
:modem:scsiaiv:scsi:7	nscsi_connector
:modem:scsiaiv:scsi:7:scsicb	nscsi_cb
:cass_ls	software_list
:flop_ls_m	software_list
:cart_ls_m	software_list
:flop_ls_b	software_list
:flop_ls_b_orig	software_list
:rom_ls	software_list
:hdd_ls	software_list

sample

name
motoroff
motoron

sound

channels
3

ramoption

name	default
128K	yes

device, instance

type	tag	interface	name	briefname
cartridge	cartslot1	bbcm_cart	cartridge1	cart1
cartridge	cartslot2	bbcm_cart	cartridge2	cart2
romimage	romslot8	bbc_rom	romimage1	rom1
cassette	cassette	bbc_cass	cassette	cass
printout	printer:printer:printer		printout	prin
floppydisk	wdfdc:0:525qd	floppy_5_25	floppydisk1	flop1
floppydisk	wdfdc:1:525qd	floppy_5_25	floppydisk2	flop2

device, extension

type	tag	interface	fixed_image	extension_names
cartridge	cartslot1	bbcm_cart		rom, bin
cartridge	cartslot2	bbcm_cart		rom, bin
romimage	romslot8	bbc_rom		rom, bin
cassette	cassette	bbc_cass		wav, flac, aif, aiff, csw, uef
printout	printer:printer:printer			prn
floppydisk	wdfdc:0:525qd	floppy_5_25		mfi, dfi, mfm, td0, imd, 86f, d77, d88, 1dd, cqm, cqi, dsk, ima, img, ufi, 360, ipf, hfe, ssd, bbc, dsd, adf, ads, adm, adl, dds, fsd
floppydisk	wdfdc:1:525qd	floppy_5_25		mfi, dfi, mfm, td0, imd, 86f, d77, d88, 1dd, cqm, cqi, dsk, ima, img, ufi, 360, ipf, hfe, ssd, bbc, dsd, adf, ads, adm, adl, dds, fsd
romimage	romslot4	bbc_rom	1
romimage	romslot6	bbc_rom	1

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
trackball		3		no	0	255	100
keyboard		92		no

port, analog

port_tag	analog_masks
:BBCCONFIG
:kbd:BREAK
:kbd:COL0
:kbd:COL1
:kbd:COL10
:kbd:COL11
:kbd:COL12
:kbd:COL13
:kbd:COL14
:kbd:COL15
:kbd:COL2
:kbd:COL3
:kbd:COL4
:kbd:COL5
:kbd:COL6
:kbd:COL7
:kbd:COL8
:kbd:COL9
:userport:tracker:BUTTONS
:userport:tracker:POINTER_X	255
:userport:tracker:POINTER_Y	255

slot, slotoption

slot_name	slotoption_name	slotoption_devname	slotoption_default
econet	e01s	econet_e01s	no
econet	e01	econet_e01	no
cartslot1
cartslot2
romslot8	ram	bbc_ram	no
rs423	terminal	serial_terminal	no
rs423	sunkbd	sunkbd_adaptor	no
rs423	votraxtnt	serial_votraxtnt	no
rs423	rs_printer	rs_serial_printer	no
rs423	dec_loopback	dec_rs232_loopback	no
rs423	h19	serial_heath_h19	no
rs423	ie15	ie15_terminal	no
rs423	null_modem	null_modem	no
rs423	keyboard	serial_keyboard	no
rs423	patch	rs232_patch_box	no
rs423	swtpc8212	swtpc8212_terminal	no
rs423	printer	serial_printer	no
rs423	scorpion	scorpion_ic	no
rs423	loopback	rs232_loopback	no
rs423	mockingboard	mockingboardd	no
rs423	msystems_mouse	rs232_mouse_hle_msystems	no
rs423	nss_tvi	nss_tvinterface	no
rs423	rs232_sync_io	rs232_sync_io	no
rs423	pty	pseudo_terminal	no
printer	neomania	neomania_adapter	no
printer	nlq401	nlq401	no
printer	smartboard	centronics_smartboard	no
printer	chessmec	centronics_chessmec	no
printer	samdac	centronics_samdac	no
printer	covox_stereo	covox_stereo	no
printer	adaptator	adaptator_multitap	no
printer	digiblst	cpcdigiblst	no
printer	lx800	lx800	no
printer	jx80	epson_jx80	no
printer	ap2000	ap2000	no
printer	ex800	ex800	no
printer	fx80	epson_fx80	no
printer	rx80	epson_rx80	no
printer	mz1p16	mz1p16	no
printer	covox	covox	no
printer	pl80	comx_pl80	no
printer	lx810l	lx810l	no
printer	p72	p72	no
printer	printer	centronics_printer	yes
analogue	robinlp	robinlp	no
analogue	stacklp	stacklp	no
analogue	datapen	datapen	no
analogue	quinkey	bbc_quinkey_intf	no
analogue	voltmace3b	bbc_voltmace3b	no
analogue	micromike	micromike	no
analogue	bitstik2	bbc_bitstik2	no
analogue	bitstik1	bbc_bitstik1	no
analogue	stacklr	stacklr	no
analogue	acornjoy	bbc_acornjoy	no
wdfdc:0	525qd	floppy_525_qd	yes
wdfdc:0	525sd	floppy_525_sd	no
wdfdc:0	35dd	floppy_35_dd	no
wdfdc:0	525sssd	floppy_525_sssd	no
wdfdc:1	525qd	floppy_525_qd	yes
wdfdc:1	525sd	floppy_525_sd	no
wdfdc:1	35dd	floppy_35_dd	no
wdfdc:1	525sssd	floppy_525_sssd	no
1mhzbus	cc500	bbc_cc500	no
1mhzbus	beebsid	beebsid	no
1mhzbus	dc	bbc_datacentre	no
1mhzbus	sprite	bbc_sprite	no
1mhzbus	torchhd	bbc_torchhd	no
1mhzbus	pms64k	bbc_pms64k	no
1mhzbus	pdram	bbc_pdram	no
1mhzbus	opusa	bbc_opusa	no
1mhzbus	multiform	bbc_multiform	no
1mhzbus	m87	bbc_m87	no
1mhzbus	ieee488	bbc_ieee488	no
1mhzbus	awhd	bbc_awhd	no
1mhzbus	barrybox	bbc_barrybox	no
1mhzbus	b488	bbc_b488	no
1mhzbus	beebex	bbc_beebex	no
1mhzbus	m2000	bbc_m2000	no
1mhzbus	ramdisc	bbc_ramdisc	no
1mhzbus	24bbc	bbc_24bbc	no
1mhzbus	beebopl	beebopl	no
1mhzbus	beebide	bbc_beebide	no
1mhzbus	emrmidi	bbc_emrmidi	no
1mhzbus	ide8	bbc_ide8	no
1mhzbus	m3000	bbc_m3000	no
1mhzbus	2ndserial	bbc_2ndserial	no
1mhzbus	m5000	bbc_m5000	no
extube	rc6502	bbc_tube_rc6502	no
extube	arm7	bbc_tube_arm7	no
extube	80186	bbc_tube_80186	no
extube	65c102	bbc_tube_65c102	no
extube	6502	bbc_tube_6502	no
extube	80286	bbc_tube_80286	no
extube	pcplus	bbc_tube_pcplus	no
extube	z80	bbc_tube_z80	no
extube	z80w	bbc_tube_z80w	no
extube	32016	bbc_tube_32016	no
extube	6502e	bbc_tube_6502e	no
extube	32016l	bbc_tube_32016l	no
extube	arm	bbc_tube_arm	no
extube	matchbox	bbc_tube_matchbox	no
extube	a500	bbc_tube_a500	no
extube	rc65816	bbc_tube_rc65816	no
extube	a500d	bbc_tube_a500d	no
extube	zep100m	bbc_tube_zep100m	no
userport	amxmouse	bbc_amxmouse	no
userport	beebspch	bbc_beebspch	no
userport	chameleon	bbc_chameleon	no
userport	sdcard	bbc_sdcard	no
userport	lcd	bbc_lcd	no
userport	cpalette	bbc_cpalette	no
userport	m4000	bbc_m4000	no
userport	m512mouse	bbc_m512mouse	no
userport	usersplit	bbc_usersplit	no
userport	sdcardt	bbc_sdcardt	no
userport	lvlecho	bbc_lvlecho	no
userport	tracker	bbc_tracker	yes
userport	voicebox	bbc_voicebox	no
internal	overlay	bbc_overlay	no
internal	morleyaa	bbc_morleyaa	no
modem:scsiaiv:scsi:0	pc98_hd	scsi_pc98_hd	no
modem:scsiaiv:scsi:0	cfp1080s	cfp1080s	no
modem:scsiaiv:scsi:0	aplcdsc_ext	scsi_cdrom_apple_ext	no
modem:scsiaiv:scsi:0	aplcdsc	scsi_cdrom_apple	no
modem:scsiaiv:scsi:0	aplcd150	aplcd150	no
modem:scsiaiv:scsi:0	tape	scsi_tape	no
modem:scsiaiv:scsi:0	s1410	scsi_s1410	no
modem:scsiaiv:scsi:0	dtc510	scsi_dtc510	no
modem:scsiaiv:scsi:0	harddisk	scsi_harddisk	no
modem:scsiaiv:scsi:0	cw7501	cw7501	no
modem:scsiaiv:scsi:0	crd254sh	crd254sh	no
modem:scsiaiv:scsi:0	cdr4210	cdr4210	no
modem:scsiaiv:scsi:0	smoc501	smoc501	no
modem:scsiaiv:scsi:0	cdd2000	cdd2000	no
modem:scsiaiv:scsi:0	cdrn820s	cdrn820s	no
modem:scsiaiv:scsi:0	cdu75s	cdu75s	no
modem:scsiaiv:scsi:0	cdrom	scsi_cdrom	no
modem:scsiaiv:scsi:0	cdu415	cdu415	no
modem:scsiaiv:scsi:0	cdu561_25	cdu561_25	no

configuration

Monitor

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Monitor	BBCCONFIG	3	BBCCONFIG	8	eq	0

setting

name	value	default
Colour	0	yes
B&W	1	no
Green	2	no
Amber	3	no

Econet

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Econet	BBCCONFIG	4

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	yes
Yes	4	no

VideoNuLA

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
VideoNuLA	BBCCONFIG	8

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	yes
Yes	8	no
