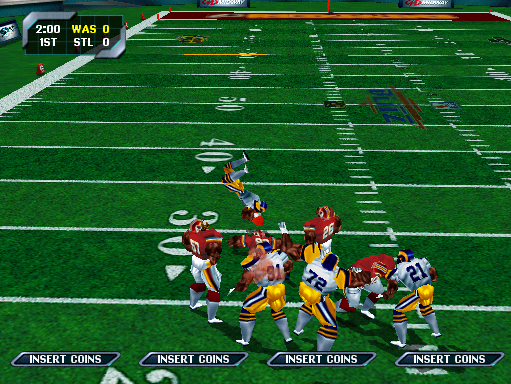

NFL Blitz '99 (ver 1.2, Aug 28 1998) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Lists: 731 - Software: 139884 - rom: 235974 - disk: 11384

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
blitz99a	midway/seattle.cpp		no	no	no	yes	NFL Blitz '99 (ver 1.2, Aug 28 1998)	1998	Midway Games	blitz99	blitz99

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	640	480	57.000000	17510400	640	0	640	480	0	480	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	status	optional	merge	bios
rev.-1.3.u33	1048576	0a0fde5a	1edb671c66819f634a9f1daa35331a99b2bda01a	pci:00.0:update	good	no		up130
sound102.u95	32768	bec7d3ae	db80aa4a645804a4574b07b9f34dec6b6b64190d	dcs	good	no	sound102.u95
bltz9910.u32	524288	777119b2	40d255181c2f3a787919c339e83593fd506779a5	pci:00.0:rom	good	no	bltz9910.u32
481_blitz-99.u96	8192	f58df548	5bda123035f49f06b4721ab4a1577a115470aa02	serial_security_pic	good	no	481_blitz-99.u96

disk

name	merge	sha1	region	index	writable	status	optional
blitz99a		43f834727ce01d7a63b482fc28cbf292477fc6f2	pci:09.0:ide:0:hdd	0	yes	good	no

chip

type	tag	name	clock
cpu	maincpu	MIPS R5000 (little)	150000000
cpu	dcs:dcs2	Analog Devices ADSP-2115	16000000
audio	pci:09.0:ide:1:cdrom:cdda	CD/DA	44100
audio	pci:09.0:ide2:1:cdrom:cdda	CD/DA	44100
audio	speaker	Speaker
audio	dcs	DCS2 Audio 2115
audio	dcs:dac1	DMA-driven DAC
audio	dcs:dac2	DMA-driven DAC

device_ref

name
r5000le
pci_root
gt64010
ide_pci
idectrl32bm
ata_slot
idehd
harddisk_image
ata_slot
cdrom
cdrom_image
cdda
idectrl32bm
ata_slot
idehd
harddisk_image
ata_slot
cdrom
cdrom_image
cdda
voodoo_1_pci
voodoo_1
nvram
screen
speaker
dcs2_audio_2115
adsp2115
timer
timer
timer
timer
dmadac
dmadac
midway_ioasic

biosset

name	description	default
noupdate	No Update Rom	no
up130	Update to 1.30	no

sound

channels
1

device, instance

type	tag	interface	name	briefname
harddisk	pci:09.0:ide:0:hdd:image	ide_hdd,hdd	harddisk1	hard1
cdrom	pci:09.0:ide:1:cdrom:image	cdrom	cdrom1	cdrm1
harddisk	pci:09.0:ide2:0:hdd:image	ide_hdd,hdd	harddisk2	hard2
cdrom	pci:09.0:ide2:1:cdrom:image	cdrom	cdrom2	cdrm2

device, extension

type	tag	interface	extension_names
harddisk	pci:09.0:ide:0:hdd:image	ide_hdd,hdd	chd, hd, hdv, 2mg, hdi
cdrom	pci:09.0:ide:1:cdrom:image	cdrom	chd, cue, toc, nrg, gdi, iso, cdr
harddisk	pci:09.0:ide2:0:hdd:image	ide_hdd,hdd	chd, hd, hdv, 2mg, hdi
cdrom	pci:09.0:ide2:1:cdrom:image	cdrom	chd, cue, toc, nrg, gdi, iso, cdr

input

players	coins	service	tilt
4	4	yes	yes

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta
joy	1	3	8	no
stick	1			no	0	111	100	10
joy	2	3	8	no
stick	2			no	0	111	100	10
joy	3	3	8	no
stick	3			no	0	111	100	10
joy	4	3	8	no
stick	4			no	0	111	100	10

port, analog

port_tag	analog_masks
:49WAYX_P1	255
:49WAYX_P2	255
:49WAYX_P3	255
:49WAYX_P4	255
:49WAYY_P1	255
:49WAYY_P2	255
:49WAYY_P3	255
:49WAYY_P4	255
:8WAY_P4
:DIPS
:IN1
:IN2
:SYSTEM
:ioasic:SERIAL_DIGIT

dipswitch

Coinage Source

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coinage Source	DIPS	1

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Dipswitch	1	no
CMOS	0	yes

Coinage

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coinage	DIPS	62

value

name	value	default
USA 1	62	yes
USA 2	60	no
USA 3	58	no
USA 4	56	no
USA 5	54	no
USA 6	52	no
USA 7	50	no
USA ECA	48	no
France 1	46	no
France 2	44	no
France 3	42	no
France 4	40	no
France 5	38	no
France 6	36	no
France 7	34	no
France ECA	32	no
German 1	30	no
German 2	28	no
German 3	26	no
German 4	24	no
German 5	22	no
German ECA	16	no
U.K. 1 ECA	14	no
U.K. 2 ECA	12	no
U.K. 3 ECA	10	no
U.K. 4	8	no
U.K. 5	6	no
U.K. 6 ECA	4	no
U.K. 7 ECA	2	no
Free Play	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DIPS	64

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	64	no
On	0	yes

Power Up Test Loop

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Power Up Test Loop	DIPS	128

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
One Time	128	yes
Continuous	0	no

Joysticks

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Joysticks	DIPS	256

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
8-Way	256	yes
49-Way	0	no

Resolution

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Resolution	DIPS	1536

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
512x385 @ 25KHz	512	yes
512x256 @ 15KHz	1024	no

Graphics Speed

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Graphics Speed	DIPS	6144

value

name	value	default
45 MHz	0	no
47 MHz	2048	no
49 MHz	4096	no
51 MHz	6144	yes

Players

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Players	DIPS	8192

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
2	8192	no
4	0	yes

Power On Self Test

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Power On Self Test	DIPS	16384

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	yes
Yes	16384	no

Test Switch

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Test Switch	DIPS	32768

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32768	yes
On	0	no

Serial Low Digit

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Serial Low Digit	ioasic:SERIAL_DIGIT	15

value

name	value	default
0	0	no
1	1	no
2	2	no
3	3	no
4	4	no
5	5	no
6	6	yes
7	7	no
8	8	no
9	9	no
