Commodore 128D/81 (NTSC, prototype)

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
c128d81	commodore/c128.cpp		no	no	no	yes	Commodore 128D/81 (NTSC, prototype)	1986	Commodore Business Machines	c128	c128

snap

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1

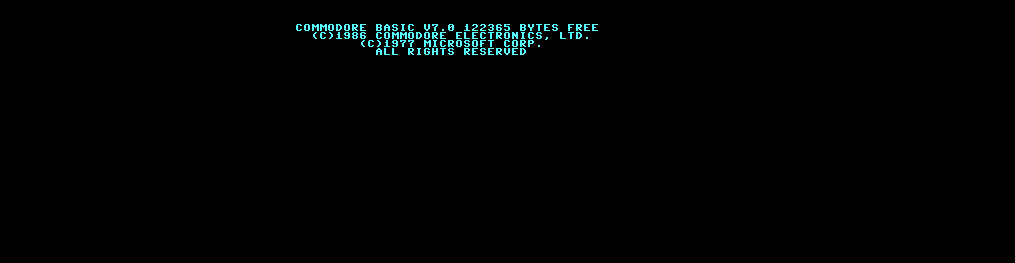

c128d81	2068	29/12/2025 11:31:17	1015	263	96	96	0	Format24bppRgb	305:MAME 0.172 (Mar 30 2016)	fdcc8ebb163aa7ee23a2b95a5f1462bb3fbf8462

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen80	raster	0	640	200	60.000000	7680000	640	0	640	200	0	200	no
screen	raster	0	418	235	59.826102	8055943	512	0	418	263	0	235	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
318018-02.u33	16384	2ee6e2fa	60e1491e1d5782e3cf109f518eb73427609badc6	u6	4000	good	no	318018-02.u33	r2
318019-02.u34	16384	d551fce0	4d223883e866645328f86a904b221464682edc4f	u6	8000	good	no	318019-02.u34	r2
318020-03.u35	16384	1e94bb02	e80ffbafae068cc0e42698ec5c5c39af46ac612a	u6	c000	good	no	318020-03.u35	r2
318018-04.u33	16384	9f9c355b	d53a7884404f7d18ebd60dd3080c8f8d71067441	u6	4000	good	no	318018-04.u33	r4
318019-04.u34	16384	6e2c91a7	c4fb4a714e48a7bf6c28659de0302183a0e0d6c0	u6	8000	good	no	318019-04.u34	r4
318020-05.u35	16384	ba456b8e	ceb6e1a1bf7e08eb9cbc651afa29e26adccf38ab	u6	c000	good	no	318020-05.u35	r4
318018-04.u33	16384	9f9c355b	d53a7884404f7d18ebd60dd3080c8f8d71067441	u6	4000	good	no	318018-04.u33	jiffydos
318019-04.u34	16384	6e2c91a7	c4fb4a714e48a7bf6c28659de0302183a0e0d6c0	u6	8000	good	no	318019-04.u34	jiffydos
jiffydos c128.u35	16384	4b7964de	7d1898f32beae4b2ae610d469ce578a588efaa7c	u6	c000	good	no	jiffydos c128.u35	jiffydos
318018-04.u33	16384	9f9c355b	d53a7884404f7d18ebd60dd3080c8f8d71067441	u6	4000	good	no	318018-04.u33	quikslvr
318019-04.u34	16384	6e2c91a7	c4fb4a714e48a7bf6c28659de0302183a0e0d6c0	u6	8000	good	no	318019-04.u34	quikslvr
quicksilver128.u35	16384	c2e74338	916cdcc62eb631073aa7f096815dcf33b3229ca8	u6	c000	good	no	quicksilver128.u35	quikslvr
251913-01.u32	16384	0010ec31	765372a0e16cbb0adf23a07b80f6b682b39fbf88	u6	0	good	no	251913-01.u32
390059-01.u18	8192	6aaaafe6	29ed066d513f2d5c09ff26d9166ba23c2afb2b3f	charom	0	good	no	390059-01.u18
8721r3.u11	3208	154db186	ccadcdb1db3b62c51dc4ce60fe6f96831586d297	u11	0	baddump	no	8721r3.u11

chip

type	tag	name	clock
cpu	u10	Zilog Z80	4090908
cpu	u6	MOS Technology 8502	1022727
cpu	u21	MOS 8564 VIC-II	8181817
cpu	u1	MOS 6526 CIA	1022727
cpu	u4	MOS 6526 CIA	1022727
cpu	iec8:c1563:u1	MOS Technology 6502	2000000
cpu	iec8:c1563:u5	MOS 8520 CIA	2000000
audio	speaker	Speaker
audio	u5	MOS 6581 SID	1022727
audio	tape:c1530:cassette	Cassette
audio	iec8:c1563:u4:0:35dd:flopsndout	Speaker
audio	iec8:c1563:u4:0:35dd:flopsnd	Floppy sound	44100

softwarelist

tag	name	status	filter
cart_list	c128_cart	original	NTSC
flop_list	c128_flop	original	NTSC
from_list	c128_rom	original	NTSC
cart_list_c64	c64_cart	original	NTSC
cass_list_c64	c64_cass	original	NTSC
cart_list_vic10	vic10	original	NTSC
flop_list_c64_orig	c64_flop_orig	compatible	NTSC
flop_list_c64_misc	c64_flop_misc	compatible	NTSC

device_ref

tag	name
:u10	z80
:u6	m8502
:irq	ipt_merge_any_hi
:nmi	ipt_merge_any_hi
:u22	mos8563
:screen80	screen
:u21	mos8564
:screen	screen
:gfxdecode	gfxdecode
:speaker	speaker
:u5	mos6581
:u7	mos8722
:u11	mos8721
:u1	mos6526
:u4	mos6526
:tape	pet_datassette_port
:tape:c1530	c1530
:tape:c1530:cassette	cassette_image
:joy1	vcs_control_port
:joy2	vcs_control_port
:joy2:joy	vcs_joystick
:exp	c64_expansion_slot
:user	pet_user_port
:quickload	quickload
:cart_list	software_list
:flop_list	software_list
:from_list	software_list
:cart_list_c64	software_list
:cass_list_c64	software_list
:cart_list_vic10	software_list
:flop_list_c64_orig	software_list
:flop_list_c64_misc	software_list
:from	generic_socket
:ram	ram
:iec4	cbm_iec_slot
:iec8	cbm_iec_slot
:iec8:c1563	c1563
:iec8:c1563:u1	m6502
:iec8:c1563:u5	mos8520
:iec8:c1563:u4	wd1772
:iec8:c1563:u4:0	floppy_connector
:iec8:c1563:u4:0:35dd	floppy_35_dd
:iec8:c1563:u4:0:35dd:flopsndout	speaker
:iec8:c1563:u4:0:35dd:flopsnd	flopsnd
:iec9	cbm_iec_slot
:iec10	cbm_iec_slot
:iec11	cbm_iec_slot
:iec_bus	cbm_iec

biosset

name	description	default
r2	Revision 2	no
r4	Revision 4	yes
jiffydos	JiffyDOS v6.01	no
quikslvr	QuickSilver 128	no

sound

channels
2

ramoption

name	default
128K	yes

device, instance

type	tag	interface	name	briefname
cassette	tape:c1530:cassette	cbm_cass	cassette	cass
cartridge	exp	c64_cart,vic10_cart	cartridge	cart
quickload	quickload		quickload	quik
romimage	from	c128_rom	romimage	rom
floppydisk	iec8:c1563:u4:0:35dd	floppy_3_5	floppydisk	flop

device, extension

type	tag	interface	extension_names
cassette	tape:c1530:cassette	cbm_cass	wav, flac, aif, aiff, tap
cartridge	exp	c64_cart,vic10_cart	80, a0, e0, crt
quickload	quickload		p00, prg
romimage	from	c128_rom	bin, rom
floppydisk	iec8:c1563:u4:0:35dd	floppy_3_5	mfi, dfi, d81

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
joy		1	8	no
keyboard		92		no

port, analog

port_tag	analog_masks
:40_80
:CAPS
:JOYSWAP
:K0
:K1
:K2
:LOCK
:RESTORE
:ROW0
:ROW1
:ROW2
:ROW3
:ROW4
:ROW5
:ROW6
:ROW7
:iec8:c1563:ADDRESS
:joy2:joy:JOY

slot, slotoption

slot_name	slotoption_name	slotoption_devname	slotoption_default
tape	c1530	c1530	yes
tape	c2n	c2n	no
joy1	trakball	atari_trakball	no
joy1	keypad	vcs_keypad	no
joy1	cx85	atari_cx85	no
joy1	wheel	vcs_wheel	no
joy1	mouse	vcs_mouse	no
joy1	joybstr	vcs_joystick_booster	no
joy1	lp	vcs_lightpen	no
joy1	pad	vcs_paddles	no
joy1	joy	vcs_joystick	no
joy2	trakball	atari_trakball	no
joy2	keypad	vcs_keypad	no
joy2	cx85	atari_cx85	no
joy2	wheel	vcs_wheel	no
joy2	mouse	vcs_mouse	no
joy2	joybstr	vcs_joystick_booster	no
joy2	lp	vcs_lightpen	no
joy2	pad	vcs_paddles	no
joy2	joy	vcs_joystick	yes
exp	music64	c64_music64	no
exp	midimap	c64_midimap	no
exp	midisci	c64_midisci	no
exp	dqbb	c64_dqbb	no
exp	buscard2	c64_buscard2	no
exp	ide64	c64_ide64	no
exp	buscard	c64_buscard	no
exp	neoram	c64_neoram	no
exp	reu1764	c64_1764reu	no
exp	reu1750	c64_1750reu	no
exp	reu1700	c64_1700reu	no
exp	swiftlink	c64_swiftlink	no
exp	supercpu	c64_supercpu	no
exp	midipp	c64_midipp	no
exp	midisiel	c64_midisiel	no
exp	tibdd001	c64_tibdd001	no
exp	sfxse	c64_sfxse	no
exp	turbo232	c64_turbo232	no
exp	georam	c64_georam	no
exp	speakez	c64_speakeasy	no
exp	16k	c64_16kb	no
exp	easyflash	c64_easyflash	no
exp	midins	c64_midins	no
exp	cpm	c64_cpm	no
user	rs232	vic1011	no
user	bn1541	c64_bn1541	no
user	4tba	c64_4tba	no
user	4ksa	c64_4ksa	no
user	4dxh	c64_4dxh	no
user	geocable	c64_geocable	no
user	4cga	c64_4cga	no
from
iec4	mps1200	mps1200	no
iec4	fd148	fd148	no
iec4	enh2000	enh2000	no
iec4	cmdrc2	cmdrc2	no
iec4	technica	technica	no
iec4	msdsd1	msdsd1	no
iec4	vic1520	vic1520	no
iec4	vic1515	vic1515	no
iec4	diag264	diag264_serial_loopback	no
iec4	serialbox	cbm_serbox	no
iec4	interpod	cbm_interpod	no
iec4	cmdhd	cmdhd	no
iec4	c5181	xetec_c5181	no
iec4	nl10	c64_nl10	no
iec4	c1570	c1570	no
iec4	indusgt	indusgt	no
iec4	c1541ii	c1541ii	no
iec4	csd1	csd1	no
iec4	c1581	c1581	no
iec4	mps1250	mps1250	no
iec4	c1526	c1526	no
iec4	minichief	minichif	no
iec4	c1571	c1571	no
iec4	fsd1	fsd1	no
iec4	msdsd2	msdsd2	no
iec4	bluechip	bluechip	no
iec4	c1541pdc	c1541pdc	no
iec4	c1541pd	c1541pd	no
iec4	c1541	c1541	no
iec4	fd2000	fd2000	no
iec4	c1541dd	c1541dd	no
iec4	fd4000	fd4000	no
iec4	c1541c	c1541c	no
iec4	fsd2	fsd2	no
iec4	c1540	c1540	no
iec8	c1563	c1563	yes
iec9	mps1200	mps1200	no
iec9	fd148	fd148	no
iec9	enh2000	enh2000	no
iec9	cmdrc2	cmdrc2	no
iec9	technica	technica	no
iec9	msdsd1	msdsd1	no
iec9	vic1520	vic1520	no
iec9	vic1515	vic1515	no
iec9	diag264	diag264_serial_loopback	no
iec9	serialbox	cbm_serbox	no
iec9	interpod	cbm_interpod	no
iec9	cmdhd	cmdhd	no
iec9	c5181	xetec_c5181	no
iec9	nl10	c64_nl10	no
iec9	c1570	c1570	no
iec9	indusgt	indusgt	no
iec9	c1541ii	c1541ii	no
iec9	csd1	csd1	no
iec9	c1581	c1581	no
iec9	mps1250	mps1250	no
iec9	c1526	c1526	no
iec9	minichief	minichif	no
iec9	c1571	c1571	no
iec9	fsd1	fsd1	no
iec9	msdsd2	msdsd2	no
iec9	bluechip	bluechip	no
iec9	c1541pdc	c1541pdc	no
iec9	c1541pd	c1541pd	no
iec9	c1541	c1541	no
iec9	fd2000	fd2000	no
iec9	c1541dd	c1541dd	no
iec9	fd4000	fd4000	no
iec9	c1541c	c1541c	no
iec9	fsd2	fsd2	no
iec9	c1540	c1540	no
iec10	mps1200	mps1200	no
iec10	fd148	fd148	no
iec10	enh2000	enh2000	no
iec10	cmdrc2	cmdrc2	no
iec10	technica	technica	no
iec10	msdsd1	msdsd1	no
iec10	vic1520	vic1520	no
iec10	vic1515	vic1515	no
iec10	diag264	diag264_serial_loopback	no
iec10	serialbox	cbm_serbox	no
iec10	interpod	cbm_interpod	no
iec10	cmdhd	cmdhd	no
iec10	c5181	xetec_c5181	no
iec10	nl10	c64_nl10	no
iec10	c1570	c1570	no
iec10	indusgt	indusgt	no
iec10	c1541ii	c1541ii	no
iec10	csd1	csd1	no
iec10	c1581	c1581	no
iec10	mps1250	mps1250	no
iec10	c1526	c1526	no
iec10	minichief	minichif	no
iec10	c1571	c1571	no
iec10	fsd1	fsd1	no
iec10	msdsd2	msdsd2	no
iec10	bluechip	bluechip	no
iec10	c1541pdc	c1541pdc	no
iec10	c1541pd	c1541pd	no
iec10	c1541	c1541	no
iec10	fd2000	fd2000	no
iec10	c1541dd	c1541dd	no
iec10	fd4000	fd4000	no
iec10	c1541c	c1541c	no
iec10	fsd2	fsd2	no
iec10	c1540	c1540	no
iec11	mps1200	mps1200	no
iec11	fd148	fd148	no
iec11	enh2000	enh2000	no
iec11	cmdrc2	cmdrc2	no
iec11	technica	technica	no
iec11	msdsd1	msdsd1	no
iec11	vic1520	vic1520	no
iec11	vic1515	vic1515	no
iec11	diag264	diag264_serial_loopback	no
iec11	serialbox	cbm_serbox	no
iec11	interpod	cbm_interpod	no
iec11	cmdhd	cmdhd	no
iec11	c5181	xetec_c5181	no
iec11	nl10	c64_nl10	no
iec11	c1570	c1570	no
iec11	indusgt	indusgt	no
iec11	c1541ii	c1541ii	no
iec11	csd1	csd1	no
iec11	c1581	c1581	no
iec11	mps1250	mps1250	no
iec11	c1526	c1526	no
iec11	minichief	minichif	no
iec11	c1571	c1571	no
iec11	fsd1	fsd1	no
iec11	msdsd2	msdsd2	no
iec11	bluechip	bluechip	no
iec11	c1541pdc	c1541pdc	no
iec11	c1541pd	c1541pd	no
iec11	c1541	c1541	no
iec11	fd2000	fd2000	no
iec11	c1541dd	c1541dd	no
iec11	fd4000	fd4000	no
iec11	c1541c	c1541c	no
iec11	fsd2	fsd2	no
iec11	c1540	c1540	no

configuration

Swap joystick ports

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Swap joystick ports	JOYSWAP	1

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Joystick in swapped port	1	no
Joystick in assigned port	0	yes

dipswitch

Device Address

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Device Address	iec8:c1563:ADDRESS	3

value

name	value	default
8	0	yes
9	1	no
10	2	no
11	3	no
