DX-64 (NTSC) - mame (0287) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
dx64	commodore/c64.cpp		no	no	no	yes	DX-64 (NTSC)	1984	Commodore Business Machines	c64	c64

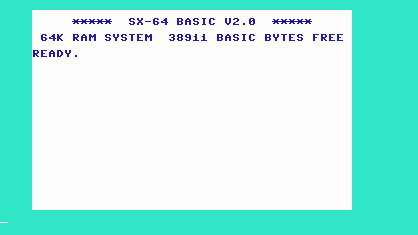

snap

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
dx64	2127	29/12/2025 11:31:20	418	235	96	96	0	Format24bppRgb	305:MAME 0.172 (Mar 30 2016)	a553e364ec060c5d781b606d7cdce992cfb6df00

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	418	235	59.826102	8055943	512	0	418	263	0	235	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	status	optional	merge	bios
251104-04.ud3	8192	2c5965d4	aa136e91ecf3c5ac64f696b3dbcbfc5ba0871c98	kernal	good	no		cbm
jiffydos sx64.ud3	8192	2b5a88f5	942c2150123dc30f40b3df6086132ef0a3c43948	kernal	good	no		jiffydos
1541 flash.ud3	8192	0a1c9b85	0bfcaab0ae453b663a6e01cd59a9764805419e00	kernal	good	no		1541flash
turboromsx.u4	8192	48579c30	6c907fdd07c14e162eb8c8fb750b1bbaf69dccb4	kernal	good	no		turborom
901226-01.ud4	8192	f833d117	79015323128650c742a3694c9429aa91f355905e	basic	good	no	901226-01.u3
901225-01.ud1	4096	ec4272ee	adc7c31e18c7c7413d54802ef2f4193da14711aa	charom	good	no	901225-01.u5
906114-01.ue4	245	54c89351	efb315f560b6f72444b8f0b2ca4b0ccbcd144a1b	u17	good	no	906114-01.u17

chip

type	tag	name	clock
cpu	u7	MOS Technology 6510	1022727
cpu	u19	MOS 6567 VIC-II	1022727
cpu	u1	MOS 6526 CIA	1022727
cpu	u2	MOS 6526 CIA	1022727
cpu	iec8:sx1541:ucd5	MOS Technology 6502	1000000
cpu	iec9:sx1541:ucd5	MOS Technology 6502	1000000
audio	mono	Speaker
audio	u18	MOS 6581 SID	1022727
audio	tape:c1530:cassette	Cassette
audio	iec8:sx1541:uc4:0:525ssqd:flopsndout	Speaker
audio	iec8:sx1541:uc4:0:525ssqd:floppysound	Floppy sound	44100
audio	iec9:sx1541:uc4:0:525ssqd:flopsndout	Speaker
audio	iec9:sx1541:uc4:0:525ssqd:floppysound	Floppy sound	44100

softwarelist

tag	name	status	filter
cart_list_vic10	vic10	original	NTSC
cart_list_c64	c64_cart	original	NTSC
cass_list	c64_cass	original	NTSC
flop525_orig	c64_flop_orig	original	NTSC
flop525_misc	c64_flop_misc	original	NTSC

device_ref

tag	name
:u7	m6510
:irq	ipt_merge_any_hi
:nmi	ipt_merge_any_hi
:u19	mos6567
:screen	screen
:mono	speaker
:u18	mos6581
:u17	pls100
:u1	mos6526
:u2	mos6526
:tape	pet_datassette_port
:tape:c1530	c1530
:tape:c1530:cassette	cassette_image
:iec4	cbm_iec_slot
:iec8	cbm_iec_slot
:iec8:sx1541	sx1541
:iec8:sx1541:ucd5	m6502
:iec8:sx1541:uab1	mos6522
:iec8:sx1541:ucd4	mos6522
:iec8:sx1541:uc4	c64h156
:iec8:sx1541:uc4:0	floppy_connector
:iec8:sx1541:uc4:0:525ssqd	alps_3255190x
:iec8:sx1541:uc4:0:525ssqd:flopsndout	speaker
:iec8:sx1541:uc4:0:525ssqd:floppysound	flopsnd
:iec9	cbm_iec_slot
:iec9:sx1541	sx1541
:iec9:sx1541:ucd5	m6502
:iec9:sx1541:uab1	mos6522
:iec9:sx1541:ucd4	mos6522
:iec9:sx1541:uc4	c64h156
:iec9:sx1541:uc4:0	floppy_connector
:iec9:sx1541:uc4:0:525ssqd	alps_3255190x
:iec9:sx1541:uc4:0:525ssqd:flopsndout	speaker
:iec9:sx1541:uc4:0:525ssqd:floppysound	flopsnd
:iec10	cbm_iec_slot
:iec11	cbm_iec_slot
:iec_bus	cbm_iec
:joy1	vcs_control_port
:joy2	vcs_control_port
:joy2:joy	vcs_joystick
:exp	c64_expansion_slot
:user	pet_user_port
:quickload	quickload
:cart_list_vic10	software_list
:cart_list_c64	software_list
:cass_list	software_list
:flop525_orig	software_list
:flop525_misc	software_list
:ram	ram

biosset

name	description	default
cbm	Original	no
jiffydos	JiffyDOS v6.01	no
1541flash	1541 FLASH!	no
turborom	Cockroach Turbo-ROM	no

sound

channels
3

ramoption

name	default
64K	yes

device, instance

type	tag	interface	name	briefname
cassette	tape:c1530:cassette	cbm_cass	cassette	cass
floppydisk	iec8:sx1541:uc4:0:525ssqd	floppy_5_25	floppydisk1	flop1
floppydisk	iec9:sx1541:uc4:0:525ssqd	floppy_5_25	floppydisk2	flop2
cartridge	exp	c64_cart,vic10_cart	cartridge	cart
quickload	quickload		quickload	quik

device, extension

type	tag	interface	extension_names
cassette	tape:c1530:cassette	cbm_cass	wav, flac, aif, aiff, tap
floppydisk	iec8:sx1541:uc4:0:525ssqd	floppy_5_25	mfi, dfi, d64, g64, g41, g71
floppydisk	iec9:sx1541:uc4:0:525ssqd	floppy_5_25	mfi, dfi, d64, g64, g41, g71
cartridge	exp	c64_cart,vic10_cart	80, a0, e0, crt
quickload	quickload		p00, prg, t64

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
joy		1	8	no
keyboard		66		no

port, analog

port_tag	analog_masks
:LOCK
:RESTORE
:ROW0
:ROW1
:ROW2
:ROW3
:ROW4
:ROW5
:ROW6
:ROW7
:iec8:sx1541:ADDRESS
:iec9:sx1541:ADDRESS
:joy2:joy:JOY

slot, slotoption

slot_name	slotoption_name	slotoption_devname	slotoption_default
tape	c1530	c1530	yes
tape	c2n	c2n	no
iec4	c5181	xetec_c5181	no
iec4	mps1250	mps1250	no
iec4	msdsd2	msdsd2	no
iec4	msdsd1	msdsd1	no
iec4	fd148	fd148	no
iec4	c1581	c1581	no
iec4	c1526	c1526	no
iec4	c1541pd	c1541pd	no
iec4	minichief	minichif	no
iec4	vic1520	vic1520	no
iec4	csd1	csd1	no
iec4	c1541pdc	c1541pdc	no
iec4	c1541dd	c1541dd	no
iec4	c1570	c1570	no
iec4	indusgt	indusgt	no
iec4	fsd2	fsd2	no
iec4	fsd1	fsd1	no
iec4	c1540	c1540	no
iec4	c1571	c1571	no
iec4	c1541ii	c1541ii	no
iec4	interpod	cbm_interpod	no
iec4	c1541c	c1541c	no
iec4	c1541	c1541	no
iec4	cmdhd	cmdhd	no
iec4	fd2000	fd2000	no
iec4	bluechip	bluechip	no
iec4	fd4000	fd4000	no
iec4	serialbox	cbm_serbox	no
iec4	nl10	c64_nl10	no
iec4	mps1200	mps1200	no
iec4	vic1515	vic1515	no
iec4	diag264	diag264_serial_loopback	no
iec4	enh2000	enh2000	no
iec4	technica	technica	no
iec4	cmdrc2	cmdrc2	no
iec8	sx1541	sx1541	yes
iec9	sx1541	sx1541	yes
iec10	c5181	xetec_c5181	no
iec10	mps1250	mps1250	no
iec10	msdsd2	msdsd2	no
iec10	msdsd1	msdsd1	no
iec10	fd148	fd148	no
iec10	c1581	c1581	no
iec10	c1526	c1526	no
iec10	c1541pd	c1541pd	no
iec10	minichief	minichif	no
iec10	vic1520	vic1520	no
iec10	csd1	csd1	no
iec10	c1541pdc	c1541pdc	no
iec10	c1541dd	c1541dd	no
iec10	c1570	c1570	no
iec10	indusgt	indusgt	no
iec10	fsd2	fsd2	no
iec10	fsd1	fsd1	no
iec10	c1540	c1540	no
iec10	c1571	c1571	no
iec10	c1541ii	c1541ii	no
iec10	interpod	cbm_interpod	no
iec10	c1541c	c1541c	no
iec10	c1541	c1541	no
iec10	cmdhd	cmdhd	no
iec10	fd2000	fd2000	no
iec10	bluechip	bluechip	no
iec10	fd4000	fd4000	no
iec10	serialbox	cbm_serbox	no
iec10	nl10	c64_nl10	no
iec10	mps1200	mps1200	no
iec10	vic1515	vic1515	no
iec10	diag264	diag264_serial_loopback	no
iec10	enh2000	enh2000	no
iec10	technica	technica	no
iec10	cmdrc2	cmdrc2	no
iec11	c5181	xetec_c5181	no
iec11	mps1250	mps1250	no
iec11	msdsd2	msdsd2	no
iec11	msdsd1	msdsd1	no
iec11	fd148	fd148	no
iec11	c1581	c1581	no
iec11	c1526	c1526	no
iec11	c1541pd	c1541pd	no
iec11	minichief	minichif	no
iec11	vic1520	vic1520	no
iec11	csd1	csd1	no
iec11	c1541pdc	c1541pdc	no
iec11	c1541dd	c1541dd	no
iec11	c1570	c1570	no
iec11	indusgt	indusgt	no
iec11	fsd2	fsd2	no
iec11	fsd1	fsd1	no
iec11	c1540	c1540	no
iec11	c1571	c1571	no
iec11	c1541ii	c1541ii	no
iec11	interpod	cbm_interpod	no
iec11	c1541c	c1541c	no
iec11	c1541	c1541	no
iec11	cmdhd	cmdhd	no
iec11	fd2000	fd2000	no
iec11	bluechip	bluechip	no
iec11	fd4000	fd4000	no
iec11	serialbox	cbm_serbox	no
iec11	nl10	c64_nl10	no
iec11	mps1200	mps1200	no
iec11	vic1515	vic1515	no
iec11	diag264	diag264_serial_loopback	no
iec11	enh2000	enh2000	no
iec11	technica	technica	no
iec11	cmdrc2	cmdrc2	no
joy1	trakball	atari_trakball	no
joy1	wheel	vcs_wheel	no
joy1	joybstr	vcs_joystick_booster	no
joy1	cx85	atari_cx85	no
joy1	keypad	vcs_keypad	no
joy1	lp	vcs_lightpen	no
joy1	pad	vcs_paddles	no
joy1	mouse	vcs_mouse	no
joy1	joy	vcs_joystick	no
joy2	trakball	atari_trakball	no
joy2	wheel	vcs_wheel	no
joy2	joybstr	vcs_joystick_booster	no
joy2	cx85	atari_cx85	no
joy2	keypad	vcs_keypad	no
joy2	lp	vcs_lightpen	no
joy2	pad	vcs_paddles	no
joy2	mouse	vcs_mouse	no
joy2	joy	vcs_joystick	yes
exp	turbo232	c64_turbo232	no
exp	supercpu	c64_supercpu	no
exp	speakez	c64_speakeasy	no
exp	sfxse	c64_sfxse	no
exp	easyflash	c64_easyflash	no
exp	reu1750	c64_1750reu	no
exp	reu1700	c64_1700reu	no
exp	16k	c64_16kb	no
exp	midisiel	c64_midisiel	no
exp	midisci	c64_midisci	no
exp	swiftlink	c64_swiftlink	no
exp	buscard	c64_buscard	no
exp	cpm	c64_cpm	no
exp	midins	c64_midins	no
exp	dqbb	c64_dqbb	no
exp	ide64	c64_ide64	no
exp	georam	c64_georam	no
exp	reu1764	c64_1764reu	no
exp	tibdd001	c64_tibdd001	no
exp	buscard2	c64_buscard2	no
exp	music64	c64_music64	no
exp	midimap	c64_midimap	no
exp	neoram	c64_neoram	no
exp	midipp	c64_midipp	no
user	geocable	c64_geocable	no
user	rs232	vic1011	no
user	bn1541	c64_bn1541	no
user	4tba	c64_4tba	no
user	4dxh	c64_4dxh	no
user	4ksa	c64_4ksa	no
user	4cga	c64_4cga	no

dipswitch

Device Address

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Device Address	iec8:sx1541:ADDRESS	3

value

name	value	default
8	0	yes
9	1	no
10	2	no
11	3	no

Device Address

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Device Address	iec9:sx1541:ADDRESS	3

value

name	value	default
8	0	yes
9	1	no
10	2	no
11	3	no
