FM-Towns (unknown, V03 L01 00 91/07/09)

MAME: 0286 - Released: 2026-02-25T16:02:51 - Machines: 49738 - rom: 368235 - disk: 1396

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
fmtownsv03	fujitsu/fmtowns.cpp		no	no	no	yes	FM-Towns (unknown, V03 L01 00 91/07/09)	1991	Fujitsu	fmtowns	fmtowns

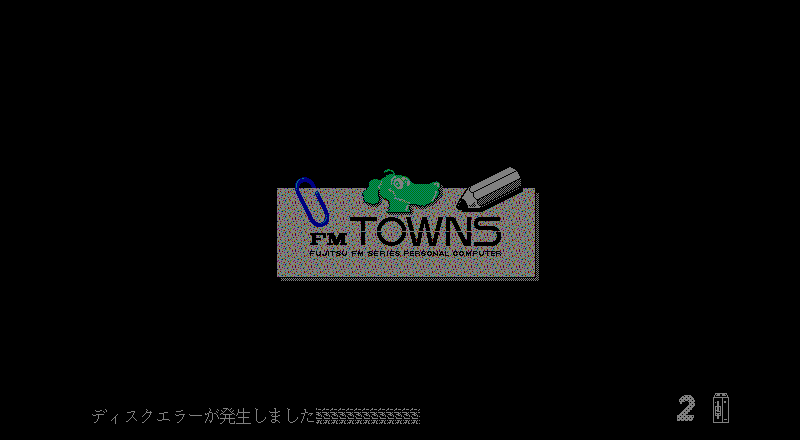

snap

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems
fmtownsv03	7119	29/12/2025 11:31:22	800	440	96	96	0	Format24bppRgb	305:MAME 0.215 (Nov 6 2019)

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	768	512	60.000000								no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional
fmt_dos_a.rom	524288	22270e9f	a7e97b25ff72b14121146137db8b45d6c66af2ae	user	0	good	no
fmt_f20_a.rom	524288	75660aac	6a521e1d2a632c26e53b83d2cc4b0edecfc1e68c	user	80000	good	no
fmt_dic_a.rom	524288	74b1d152	f63602a1bd67c2ad63122bfb4ffdaf483510f6a8	user	100000	good	no
fmt_fnt_a.rom	262144	0108a090	1b5dd9d342a96b8e64070a22c3a158ca419894e1	user	180000	baddump	no
fmt_sys_a.rom	262144	92f3fa67	be21404098b23465d24c4201a81c96ac01aff7ab	user	200000	good	no

chip

type	tag	name	clock
cpu	maincpu	Intel I386	16000000
audio	speaker	Speaker
audio	fm	YM3438 OPN2C	8000000
audio	pcm	Ricoh RF5C68	8000000
audio	cdda	CD/DA	44100
audio	speaker_sound	Filtered DAC
audio	fdc:0:35hd:flopsndout	Speaker
audio	fdc:0:35hd:floppysound	Floppy sound	44100
audio	fdc:1:35hd:flopsndout	Speaker
audio	fdc:1:35hd:floppysound	Floppy sound	44100

softwarelist

tag	name	status
fd_list_orig	fmtowns_flop_orig	original
fd_list_cracked	fmtowns_flop_cracked	original
fd_list_misc	fmtowns_flop_misc	original
cd_list	fmtowns_cd	original

device_ref

tag	name
:maincpu	i386
:pad1	msx_general_purpose_port
:pad1:townspad	msx_townspad
:pad2	msx_general_purpose_port
:pad2:mouse	msx_mouse
:screen	screen
:gfxdecode	gfxdecode
:palette256	palette
:palette16_0	palette
:palette16_1	palette
:speaker	speaker
:fm	ym3438
:pcm	rf5c68
:cdda	cdda
:speaker_sound	speaker_sound_device
:pit	pit8253
:pit:counter0	pit_counter
:pit:counter1	pit_counter
:pit:counter2	pit_counter
:pit2	pit8253
:pit2:counter0	pit_counter
:pit2:counter1	pit_counter
:pit2:counter2	pit_counter
:pic8259_master	pic8259
:pic8259_slave	pic8259
:fdc	mb8877
:fdc:0	floppy_connector
:fdc:0:35hd	floppy_35_hd
:fdc:0:35hd:flopsndout	speaker
:fdc:0:35hd:floppysound	flopsnd
:fdc:1	floppy_connector
:fdc:1:35hd	floppy_35_hd
:fdc:1:35hd:flopsndout	speaker
:fdc:1:35hd:floppysound	flopsnd
:fd_list_orig	software_list
:fd_list_cracked	software_list
:fd_list_misc	software_list
:cdrom	cdrom_image
:cd_list	software_list
:dma_1	upd71071
:dma_2	upd71071
:i8251	i8251
:rs232c	rs232
:icmemcard	fmt_icmem
:ram	ram
:rtc58321	msm58321
:nvram	nvram
:scsislot	fmt_scsi_slot

sound

channels
3

ramoption

name	default
1M
3M
4M
5M
6M
2M	yes

device, instance

type	tag	interface	name	briefname
floppydisk	fdc:0:35hd	floppy_3_5	floppydisk1	flop1
floppydisk	fdc:1:35hd	floppy_3_5	floppydisk2	flop2
cdrom	cdrom	cdrom	cdrom	cdrm
memcard	icmemcard		memcard	memc

device, extension

type	tag	interface	extension_names
floppydisk	fdc:0:35hd	floppy_3_5	mfi, dfi, mfm, td0, imd, 86f, d77, d88, 1dd, cqm, cqi, dsk, bin
floppydisk	fdc:1:35hd	floppy_3_5	mfi, dfi, mfm, td0, imd, 86f, d77, d88, 1dd, cqm, cqi, dsk, bin
cdrom	cdrom	cdrom	chd, cue, toc, nrg, gdi, iso, cdr
memcard	icmemcard		icm

input

players	coins	service	tilt
2		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity
joy	1	2	8	no
keyboard	1	117		no
mouse	2	2		no	0	65535	50

port, analog

port_tag	analog_masks
:icmemcard:icmem
:key1
:key2
:key3
:key4
:pad1:townspad:PAD
:pad2:mouse:BUTTONS
:pad2:mouse:MOUSE_X	65535
:pad2:mouse:MOUSE_Y	65535

slot, slotoption

slot_name	slotoption_name	slotoption_devname	slotoption_default
pad1	vaus	msx_vaus	no
pad1	townspad	msx_townspad	yes
pad1	towns6b	msx_towns6b	no
pad1	sega	msx_segactrl	no
pad1	mouse	msx_mouse	no
pad1	magickey	msx_magickey	no
pad1	libbler	msx_libblerpad	no
pad1	martypad	msx_martypad	no
pad1	joystick	msx_joystick	no
pad1	xe1ap	msx_xe1ap	no
pad1	hypershot	msx_hypershot	no
pad2	vaus	msx_vaus	no
pad2	townspad	msx_townspad	no
pad2	towns6b	msx_towns6b	no
pad2	sega	msx_segactrl	no
pad2	mouse	msx_mouse	yes
pad2	magickey	msx_magickey	no
pad2	libbler	msx_libblerpad	no
pad2	martypad	msx_martypad	no
pad2	joystick	msx_joystick	no
pad2	xe1ap	msx_xe1ap	no
pad2	hypershot	msx_hypershot	no
fdc:0	35hd	floppy_35_hd	yes
fdc:1	35hd	floppy_35_hd	yes
rs232c	terminal	serial_terminal	no
rs232c	sunkbd	sunkbd_adaptor	no
rs232c	votraxtnt	serial_votraxtnt	no
rs232c	rs_printer	rs_serial_printer	no
rs232c	dec_loopback	dec_rs232_loopback	no
rs232c	h19	serial_heath_h19	no
rs232c	ie15	ie15_terminal	no
rs232c	null_modem	null_modem	no
rs232c	keyboard	serial_keyboard	no
rs232c	patch	rs232_patch_box	no
rs232c	swtpc8212	swtpc8212_terminal	no
rs232c	printer	serial_printer	no
rs232c	scorpion	scorpion_ic	no
rs232c	loopback	rs232_loopback	no
rs232c	mockingboard	mockingboardd	no
rs232c	msystems_mouse	rs232_mouse_hle_msystems	no
rs232c	nss_tvi	nss_tvinterface	no
rs232c	rs232_sync_io	rs232_sync_io	no
rs232c	pty	pseudo_terminal	no
scsislot	fmt121	fmt121	no

configuration

IC Memory Card Write Protect

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
IC Memory Card Write Protect	icmemcard:icmem	1

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	1	no
