HT-1080Z/64 - mame (0287) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
ht108064	trs/trs80.cpp		no	no	no	yes	HT-1080Z/64	1985	Hiradastechnika Szovetkezet	eg3003	eg3003

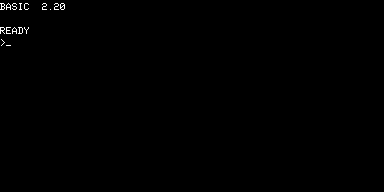

snap

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
ht108064	622	29/12/2025 11:31:24	384	192	96	96	0	Format24bppRgb	305:MAME 0.174 (May 25 2016)	cad46801d00663f08ceba03b19b960242570fc52

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	384	192	49.984737	10480000	672	0	384	312	0	192	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge
3001_64.z10	4096	59ec132e	232c04827e494ea49931d7ab9a5b87b76c81aef1	maincpu	0	good	no
3002_64.z11	4096	a7a73e8c	6e0f232b8666744328853cef6bb72b8e44b4c184	maincpu	1000	good	no
3003.z12	4096	306e5d66	1e1abcfb5b02d4567cf6a81ffc35318723442369	maincpu	2000	good	no	3003.z12
ht108064.z13	2048	fc12bd28	0da93a311f99ec7a1e77486afe800a937778e73b	maincpu	3000	good	no
ht108064.z25	2048	e76b73a4	6361ee9667bf59d50059d09b0baf8672fdb2e8af	chargen	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Zilog Z80	1746666
audio	mono	Speaker
audio	speaker	Filtered DAC
audio	cassette	Cassette
audio	floppy0:80t_qd:flopsndout	Speaker
audio	floppy0:80t_qd:floppysound	Floppy sound	44100
audio	floppy1:80t_qd:flopsndout	Speaker
audio	floppy1:80t_qd:floppysound	Floppy sound	44100
audio	ay1	AY-3-8910A PSG	1500000

softwarelist

tag	name	status	filter
cass_list	trs80_cass	original	H
quik_list	trs80_quik	original	H
flop_list	trs80_flop	original	1

device_ref

tag	name
:maincpu	z80
:nmigate	ipt_merge_any_hi
:screen	screen
:gfxdecode	gfxdecode
:palette	palette
:mono	speaker
:speaker	speaker_sound_device
:cassette	cassette_image
:cass_list	software_list
:quickload	trs80_quickload
:fdc	fd1771
:floppy0	floppy_connector
:floppy0:80t_qd	floppy_525_qd
:floppy0:80t_qd:flopsndout	speaker
:floppy0:80t_qd:floppysound	flopsnd
:floppy1	floppy_connector
:floppy1:80t_qd	floppy_525_qd
:floppy1:80t_qd:flopsndout	speaker
:floppy1:80t_qd:floppysound	flopsnd
:floppy2	floppy_connector
:floppy3	floppy_connector
:centronics	centronics
:centronics:printer	centronics_printer
:centronics:printer:printer	printer_image
:cent_status_in	input_buffer
:cent_data_out	output_latch
:uart	ay31015
:rs232	rs232
:quik_list	software_list
:flop_list	software_list
:uart_clock	clock
:ay1	ay8910

sound

channels
3

device, instance

type	tag	interface	name	briefname
cassette	cassette	trs80_cass	cassette	cass
quickload	quickload	trs80_quik	quickload	quik
floppydisk	floppy0:80t_qd	floppy_5_25	floppydisk1	flop1
floppydisk	floppy1:80t_qd	floppy_5_25	floppydisk2	flop2
printout	centronics:printer:printer		printout	prin

device, extension

type	tag	interface	extension_names
cassette	cassette	trs80_cass	wav, flac, aif, aiff, cas
quickload	quickload	trs80_quik	cmd
floppydisk	floppy0:80t_qd	floppy_5_25	mfi, dfi, dmk, jv1, dsk
floppydisk	floppy1:80t_qd	floppy_5_25	mfi, dfi, dmk, jv1, dsk
printout	centronics:printer:printer		prn

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
keyboard		58		no

port, analog

port_tag	analog_masks
:BAUD
:CONFIG
:E9
:LINE0
:LINE1
:LINE2
:LINE3
:LINE4
:LINE5
:LINE6
:LINE7
:RESET

slot, slotoption

slot_name	slotoption_name	slotoption_devname	slotoption_default
floppy0	80t_qd	floppy_525_qd	yes
floppy0	40t_dd	floppy_525_dd	no
floppy0	40t_sd	floppy_525_sssd	no
floppy0	35t_sd	floppy_525_sssd_35t	no
floppy1	80t_qd	floppy_525_qd	yes
floppy1	40t_dd	floppy_525_dd	no
floppy1	40t_sd	floppy_525_sssd	no
floppy1	35t_sd	floppy_525_sssd_35t	no
floppy2	80t_qd	floppy_525_qd	no
floppy2	40t_dd	floppy_525_dd	no
floppy2	40t_sd	floppy_525_sssd	no
floppy2	35t_sd	floppy_525_sssd_35t	no
floppy3	80t_qd	floppy_525_qd	no
floppy3	40t_dd	floppy_525_dd	no
floppy3	40t_sd	floppy_525_sssd	no
floppy3	35t_sd	floppy_525_sssd_35t	no
centronics	neomania	neomania_adapter	no
centronics	nlq401	nlq401	no
centronics	smartboard	centronics_smartboard	no
centronics	chessmec	centronics_chessmec	no
centronics	samdac	centronics_samdac	no
centronics	covox_stereo	covox_stereo	no
centronics	adaptator	adaptator_multitap	no
centronics	digiblst	cpcdigiblst	no
centronics	lx800	lx800	no
centronics	jx80	epson_jx80	no
centronics	ap2000	ap2000	no
centronics	ex800	ex800	no
centronics	fx80	epson_fx80	no
centronics	rx80	epson_rx80	no
centronics	mz1p16	mz1p16	no
centronics	covox	covox	no
centronics	pl80	comx_pl80	no
centronics	lx810l	lx810l	no
centronics	p72	p72	no
centronics	printer	centronics_printer	yes
rs232	terminal	serial_terminal	no
rs232	sunkbd	sunkbd_adaptor	no
rs232	votraxtnt	serial_votraxtnt	no
rs232	rs_printer	rs_serial_printer	no
rs232	dec_loopback	dec_rs232_loopback	no
rs232	h19	serial_heath_h19	no
rs232	ie15	ie15_terminal	no
rs232	null_modem	null_modem	no
rs232	keyboard	serial_keyboard	no
rs232	patch	rs232_patch_box	no
rs232	swtpc8212	swtpc8212_terminal	no
rs232	printer	serial_printer	no
rs232	scorpion	scorpion_ic	no
rs232	loopback	rs232_loopback	no
rs232	mockingboard	mockingboardd	no
rs232	msystems_mouse	rs232_mouse_hle_msystems	no
rs232	nss_tvi	nss_tvinterface	no
rs232	rs232_sync_io	rs232_sync_io	no
rs232	pty	pseudo_terminal	no

configuration

Video Cut

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Video Cut	CONFIG	8

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	8	no

Floppy Disc Drives

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Floppy Disc Drives	CONFIG	128

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	128	no

dipswitch

Baud Rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Baud Rate	BAUD	255

value

name	value	default
110	0	no
300	1	no
600	2	no
1200	3	no
2400	4	no
4800	5	no
9600	6	yes
19200	7	no

Stop Bits

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Stop Bits	E9	16

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
2	16	yes
1	0	no

Bits

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Bits	E9	96

value

name	value	default
5	0	no
6	32	no
7	64	no
8	96	yes

Parity

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Parity	E9	136

value

name	value	default
None	8	yes
Odd	0	no
Even	128	no
